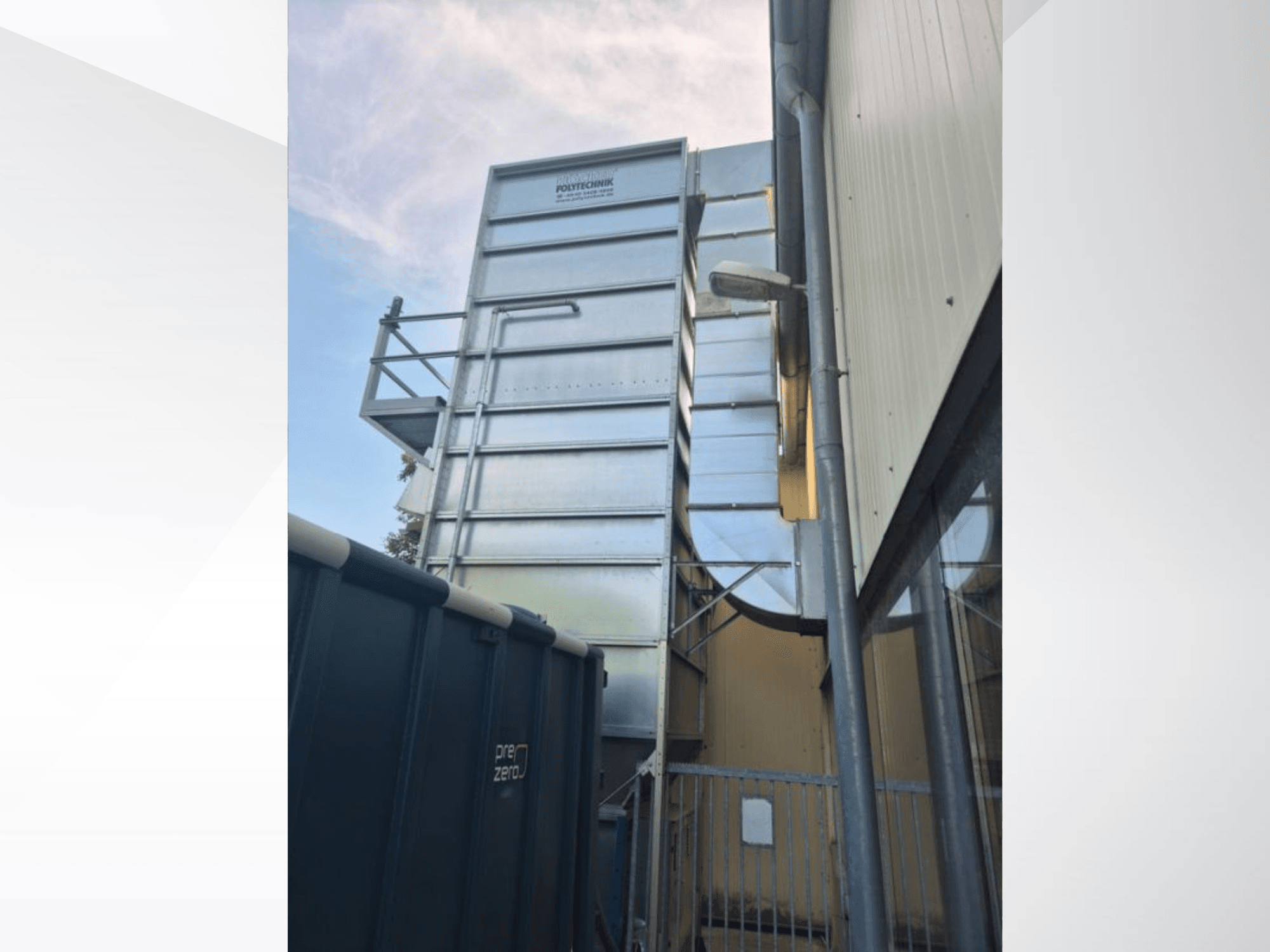

HOCKER - Polytechnick MultiStar JP5 BrikStar c-3 18DE-OTH-HOC-2012-00001

• Condition: Unrefurbished – no warranty

• Technical data:

  • Volume: 20,000 m³

  • Motor: 30 kW

  • System: Vacuum

  • Filter area: 121.3 m²

  • Filter bags: 100 pcs

  • Hose length: 2300 mm

  • Hose diameter: 170 mm (pressure applied)

  • Compressed air connection: 6.0 bar, 1"

  • Operating pressure: 4.5 bar

  • Compressed air consumption: approx. 216 Nl per hose row at 200 ms pulse duration

  • Noise level (jet discharge): approx. 75 dB(A), depending on local conditions

  • Footprint (L x W): 2540 x 2420 mm

  • Space requirement (L x W): 3500 x 3380 mm

  • Connection, bottom (internal): 2300 x 2300 mm

Additional equipment

• Briquetting press BrikStar c-3 18

• Channels/ducting and covers (galvanized sheet steel, 2 mm, bolted):

  • Channel 908, asymmetrical; dimensions 1: 900 x 800 mm; dimensions 2: 900 x 650 mm; 1 pc

  • Channel, 750 mm long, 900 x 800 mm; 2 pcs (ref. 460406)

  • Blind cover, 2 mm, 900 x 800 mm; 1 pc

  • Piece for MS XP on BrikStar; 1 pc

• Unit 300 x 2300 mm on existing briquetting press; Manufacturer: Gross (approx. 1100 x 1100 mm; press height: 1260 mm)

Note: The technical data and descriptions are copies of the original order confirmation. This information is for informational purposes only and is non-binding.
