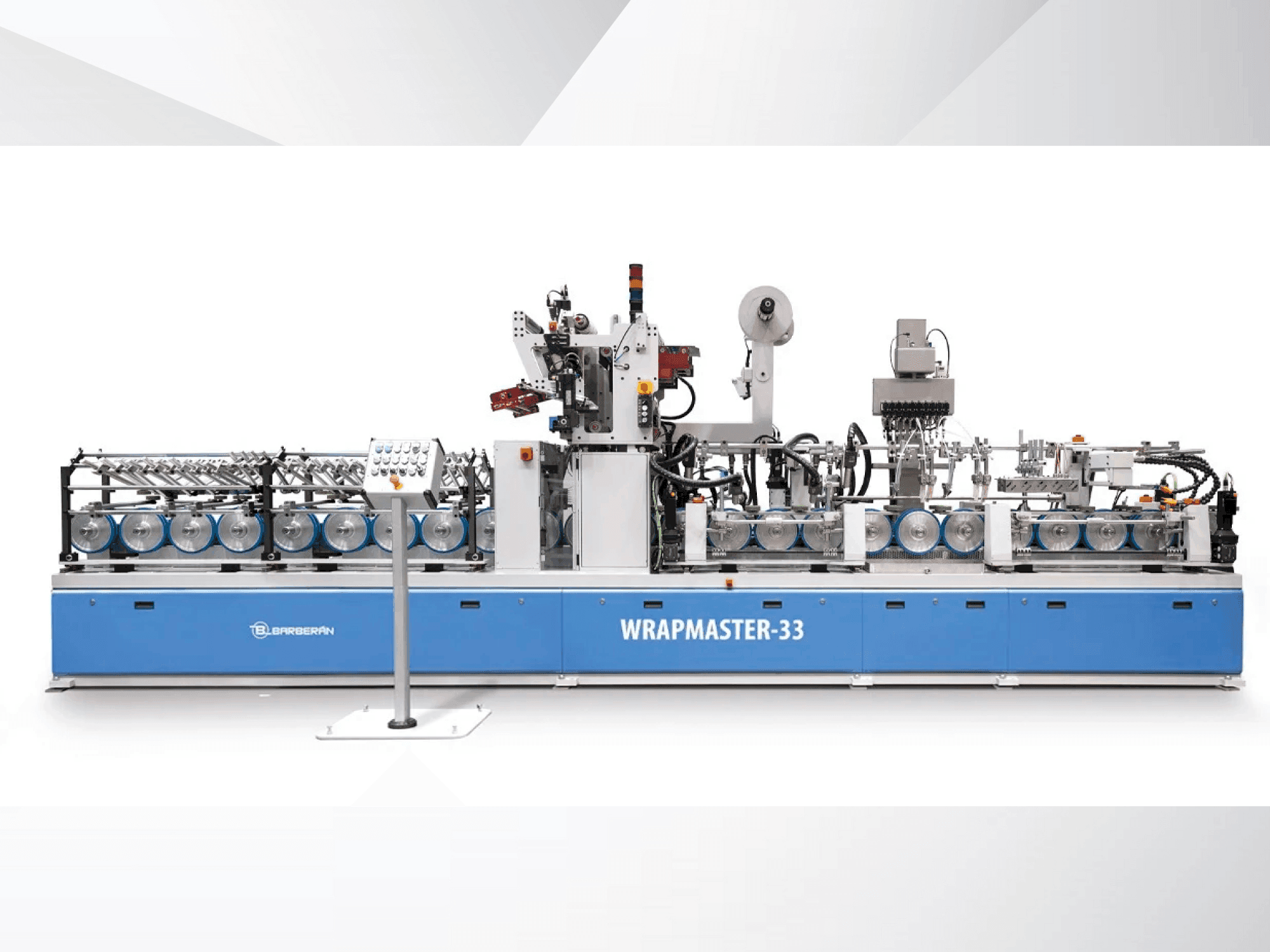

Barberan - WM-33DE-OTH-BAR-2025-00001

Additional equipment

• - Machine bed, slot nozzle head, mounts for wrapping tools
• - Complete tool set for PVC/Aluminum profiles
• - Operator safety system and control cabinet
• - Set of nozzles for profile cleaning
• - Protective foil unwinder and hot air turbines
• - Infrared screen with lamps and tool cassette

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The profile wrapping machine is designed to wrap profiles of various shapes, sizes, and materials using different foils with hot melt adhesives.
  • - Operates as a standalone unit or part of a complete production line.
  • - Capable of working with materials such as pvc, aluminum, and some composites.
  • - Various foil types are compatible, special configurations may be needed for certain materials.
  • - Profile dimensions: width 25–300 mm, length ≥600 mm, height 4–120 mm
  • - Foil dimensions: width 25–330 mm, outer roll diameter ≤600 mm, inner roll diameter 76 mm
  • - Max mechanical speed: 60 m/min
  • - Working height: 900 mm
  • - Voltage: 400v – 50hz
  • - Compressed air: 6 bar
• Qualitative Machine Benefits:
  • - Machine entry section with heavy-duty steel frame
  • - Transport rollers with motor-driven frequency converter
  • - Integrated control cabinet
  • - Emergency safety systems
  • - Glue unit safety mesh
  • - Operator control panel for adhesive management
  • - Two 15 mm wide rollers per shaft, 240 mm diameter
  • - Quick positioning in 5 mm steps
  • - Air blowers & ionization for static and dust removal
  • - Automatic primer station with precise application

Extra information

• - Machine still under power. 6 self-regulating heaters, expandable to 8. Slot Nozzle Head (330 mm) for adhesive application. Roll diameter up to 600 mm. Magnetic powder brake for tension control. Infrared screen for foil heating. Foil applied with shaped rubber rollers. Quick profile shape change system. For foil rolls up to 600 mm diameter. Height-adjustable for pressure control. The system is versatile with components designed to enhance processing efficiency and adaptability for various production needs.
