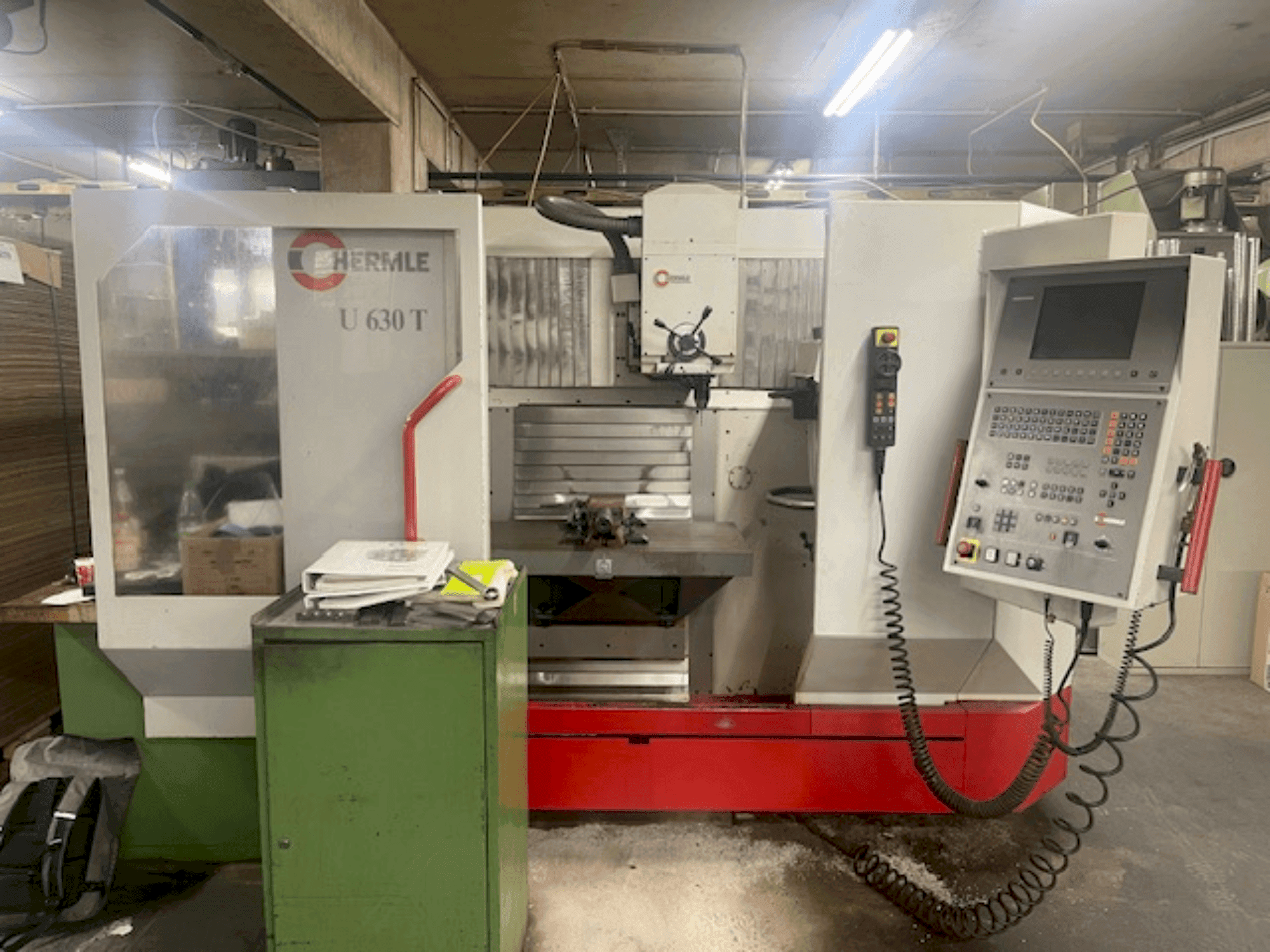

Front view of HERMLE U 630 T  machine

HERMLE U 630 T

HERMLE - U 630 T

1997

Rs. 1,356,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis HERMLE U 630 T – TNC 410 milling machine was manufactured in 1997. It features advanced Heidenhain TNC 410 control, supporting a wide travel distance of 875mm on the x-axis, and 500mm each on y and z-axes. The machine offers a variable speed range of 20-7000 min-1 and a rapid traverse speed of 15m/min. Its 90° swiveling vertical milling head and 16 magazine positions enhance its functionality. For more information about this milling machine, please reach out to us.

Overview

  • brand: HERMLE
  • year: 1997
  • MODEL: U 630 T
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-HER-1997-00001

Technical Information

General Data

  • Machine weight: 4250 KG

Control Unit

  • Brand: Heidenhain
  • Model: TNC 410

Main drive

  • Spindle speed range: 20-7000 1/MIN
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 875 mm (extended by 245 mm to the right)
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 500 mm

Table

  • Table load: Maximum 400kg

Tools

  • Max weight: 6 kg
  • Max tool diameter: 80 mm
  • Max tool length: 250 mm

    Additional equipment

    • - 90° swiveling vertical milling head
    • - 75mm extendable quill
    • - 16 magazine positions
    • - Coolant device with tank capacity 120 L

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Feed force: 8000 n
        • - Torque: 390 nm
        • - Rapid traverse speed: 15m/min
        • - Clamping surface: 900 x 528 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
