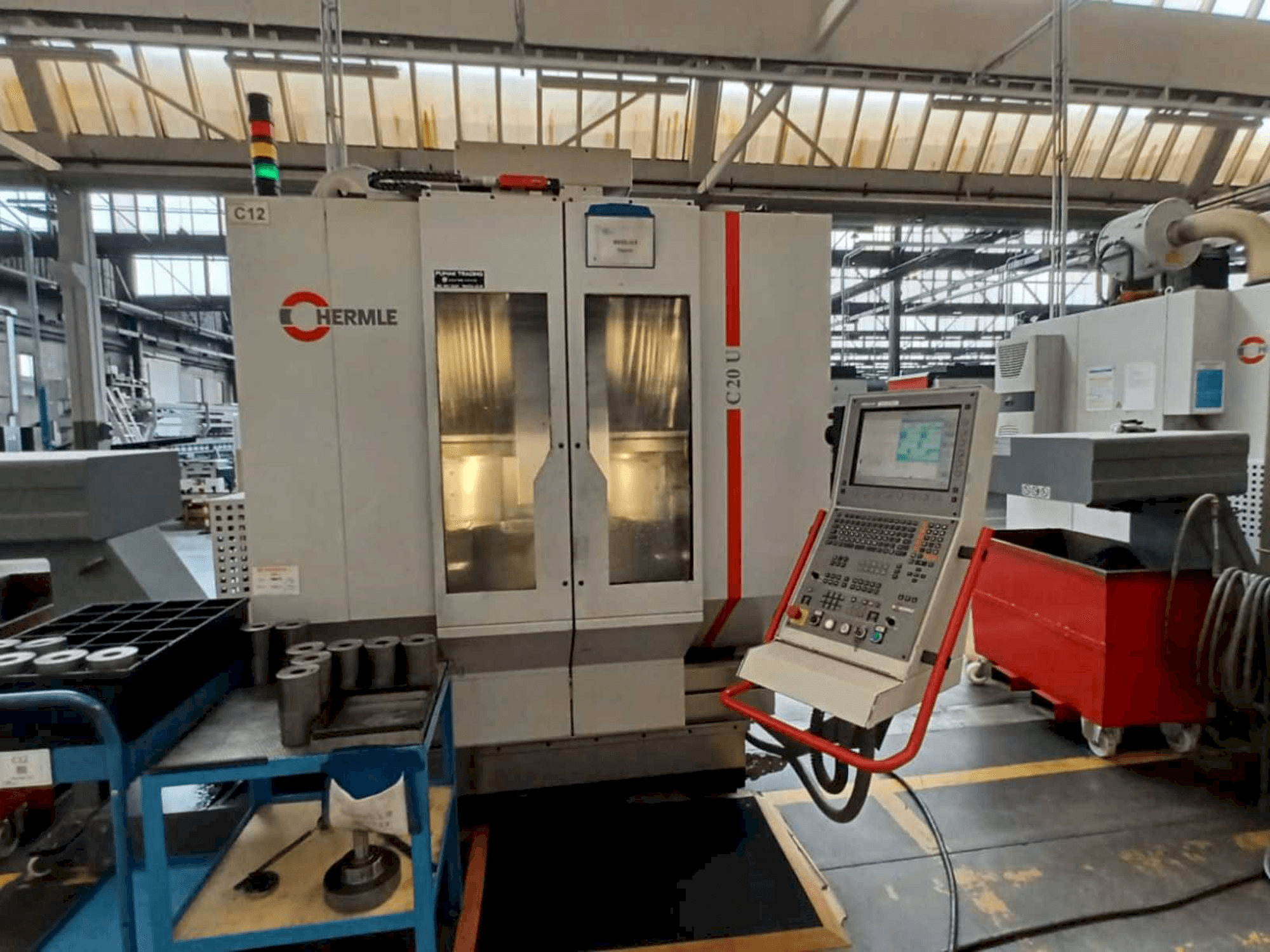

Front view of HERMLE C20U  machine

HERMLE C20U

HERMLE - C20U

2007

Rs. 5,905,100

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HERMLE C20U Vertical Machining center was manufactured in the year 2007. It is equipped with a HEIDENHAIN TNC 530 CNC control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. There are 2 identical units available.

Overview

  • brand: HERMLE
  • year: 2007
  • MODEL: C20U
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: IT-MIL-HER-2007-00001

Technical Information

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 530 CNC

Main drive

  • Spindle speed range: 18000 1/MIN
  • Spindle motor power: 15 kw
  • Tool taper: Din 69871
  • Number of axis: 5

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 450 mm
  • C-AXIS Movement: 360º MM

Tools

  • Slots in storage: 32

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table surface (spindle): 280 mm
      • - Renishaw system predisposition
      • - Air blow through dry machining spindle yes
      • - Chip conveyor yes
      • - 5 axis continuous package yes
      • - Internal cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
