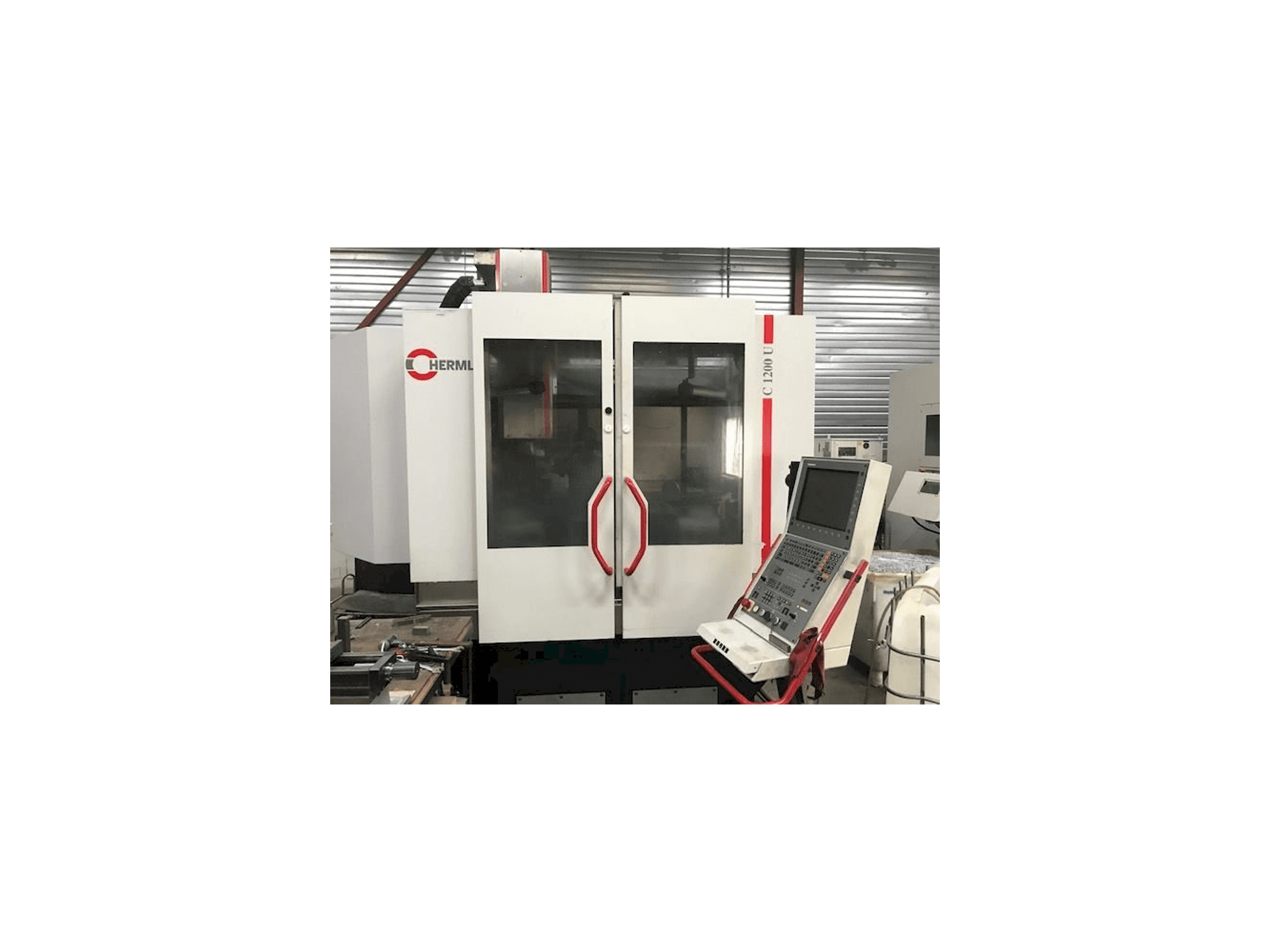

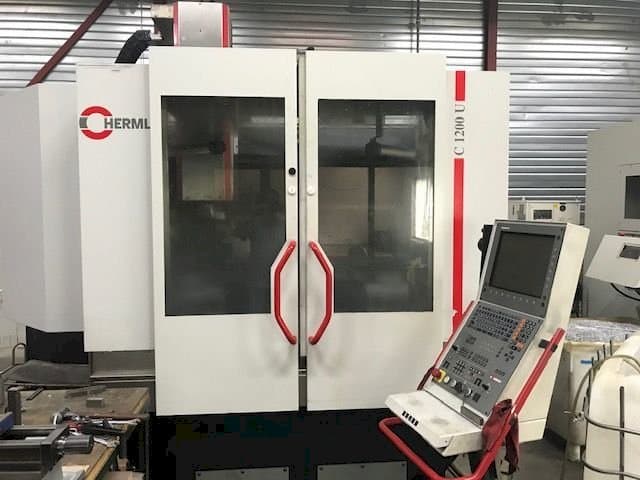

HERMLE C 1200 U

Photo Gallery

HERMLE - C 1200 UNL-MIL-HER-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HERMLE C 1200 U Milling machine

Show in original language

This HERMLE C 1200 U Milling machine from 2002 was manufactured in The Netherlands. This machine has been on for 35592 hours, of which 9358 are spindle hours. It is equipped with a HEIDENHAIN Control unit. This 5 axis can work with a spindle speed up to 16000 rpm. Incorporates A axis +15º / -97º, and C Axis 360º.

Overview

brand: HERMLE
year: 2002
MODEL: C 1200 U
production hours: 35592
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 1200 U

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 16000 1/MIN

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Table

Table load: 1000 Kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 50 Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Internal coolant supply 40 bar
Heidenhain measuring probe with radio
Electric heat compensation
Electronic manual control module
Oil mist extraction
Chip cleaning gun
Blow-off device
Sealing air for standards
A axis +15º / -97º c axis 360º
C axis 360º

Technical Machine Benefits

Rapid traverse in all axes 30 m/min
Chip-to-chip time 6. 5 s
Nc swivel rotary table
Clamping surface: Ø 800 mm
Swivel range: +15°/-97°
Speed drive power/torque/tool consumption
10000 1/min 25 kw/159 nm (40% ed) / sk 40/hsk a 63
16000* 1/min 15 kw/130 nm (40% ed) / sk 40/hsk a 63
24000* 1/min 23 kw/79 nm (40% ed) / hsk a 63
30 seats

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
