HANKOOK VTB-160

Photo Gallery

HANKOOK - VTB-160GB-TUR-HAN-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

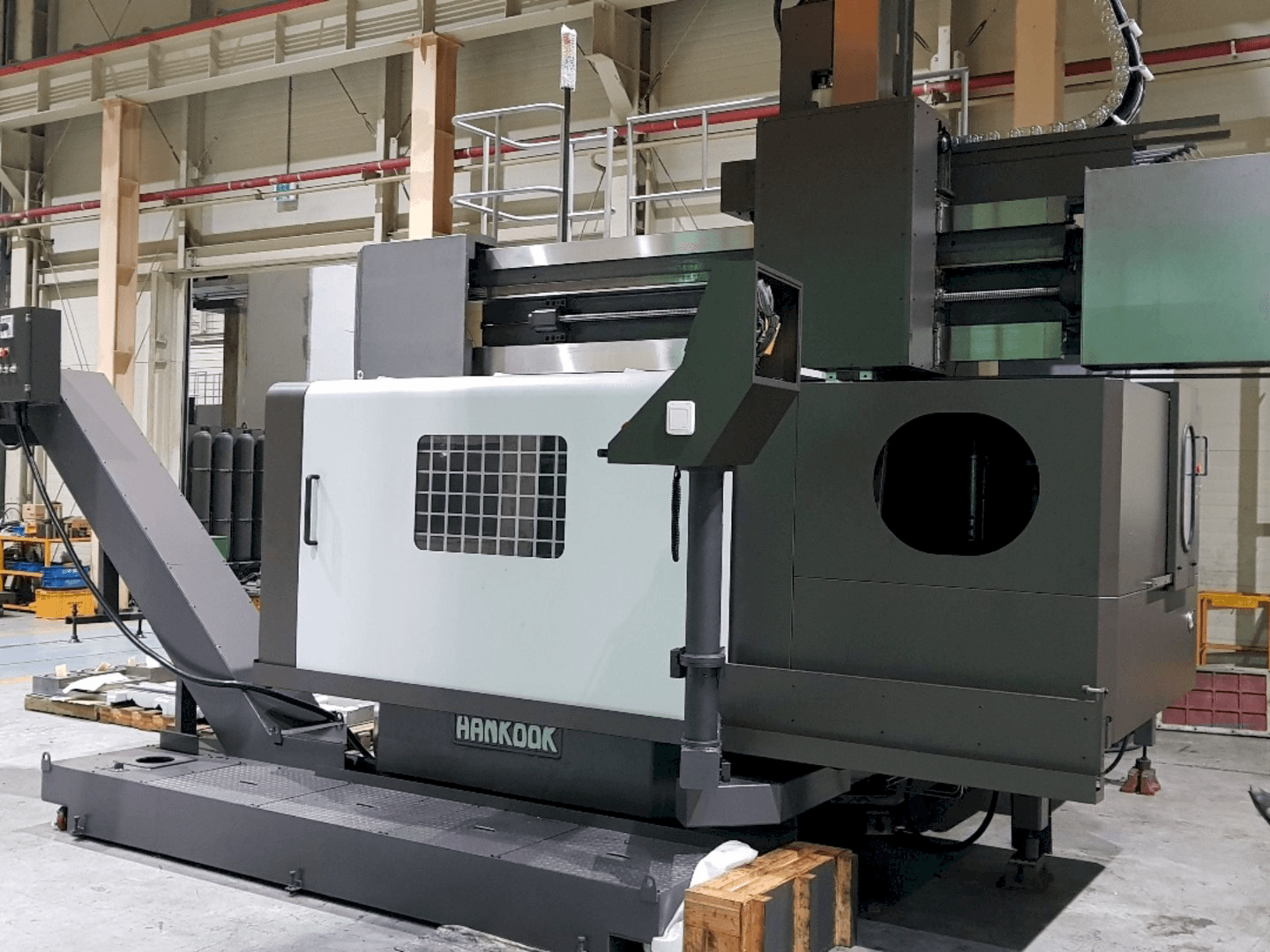

HANKOOK VTB-160 lathe machine

Show in original language

This HANKOOK VTB-160 lathe machine was manufactured in 2006. This 2 axis machine is operated through a Fanuc 18-iTB control unit. Its max. table speed is 280 rpm and its max. cutting force is 3000 KGF. It is in very good condition and it was factory reconditioned in 2019.

Overview

brand: HANKOOK
year: 2006
MODEL: VTB-160
application type: Turning
Location: United Kingdom
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - HANKOOK VTB-160

Control Unit

Control Brand: FANUC
Control Model: 18-iTB

Movement

Number of Axes: 2
X-axis Travel: 1900 mm
Z-axis Travel: 900 mm

Technical Specification

Max. Tool Weight: 50 kg
Number of Tools: 12

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Factory reconditioned in 2019!

Technical Machine Benefits

Table diameter 1800 mm
Max. Turning diameter 2000 mm
Max. Turning height 900 mm
Max. Table speed 280 rpm
Main motor power /cont. /30 min) 37/45 kw
Max. Cutting force 3000 kgf
Ram cross section 220 x 220 mm
Max. Cutting/rapid feedrate x/z 7500 mm/min
Through tool coolant, table lubrication cooling system
Splash guarding, heavy duty 3 & 4 jaw combination chuck, tool setting arm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
