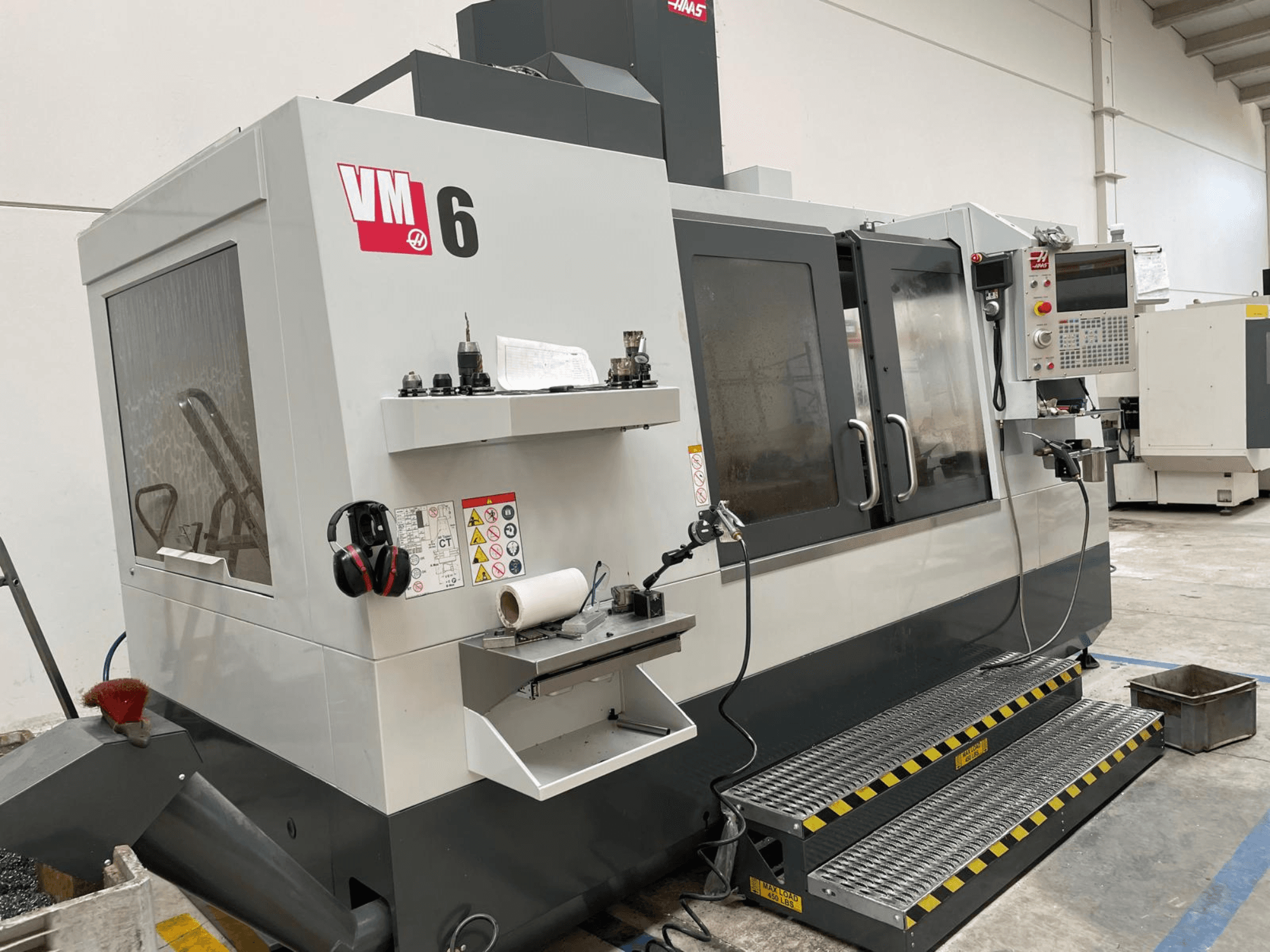

This 3-axis HAAS VM-6 was manufactured in 2024. It features a spindle speed of 12,000 rpm and a robust table size of 1,626 x 711 mm, with a maximum weight capacity of 1,814 kg. The machine includes a tool changer capacity of 30+1 and a rapid traverse rate of 15.2 m/min. If you are looking to get high-quality machining capabilities, consider the HAAS VM-6 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2024
- MODEL: VM-6
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VM-6
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Weight: 10887 kg
- Table Length: 1626 mm
- Table Load: 1814 kg
- Table Width: 711 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Spindle nose to table: max 864 mm (34.0 in), min 102 mm (4.0 in)
Spindle
Max torque: 122.0 Nm @ 2000 rpm (90.0 ft-lbf)
Drive system: Inline direct-drive
Taper: CT40 | BT40 | HSK-A63
Lubrication: Air/oil injection
Cooling: Liquid cooled
Table
Length: 1626 mm (64.0 in)
Width: 711 mm (28.0 in)
T-slot width: 15.90–16.00 mm (0.626–0.630 in)
T-slot center distance: 125 mm (4.92 in)
Max weight on table: 1814 kg (4000 lb)
Feedrates and thrust
Max cutting feedrate: 12.7 m/min (500 ipm)
Rapids (X/Y/Z): 15.2 m/min (600 ipm)
Max thrust X: 15,124 N (3400 lbf)
Max thrust Y: 18,238 N (4100 lbf)
Max thrust Z: 24,910 N (5600 lbf)
Tool changer
Type: SMTC (side-mount)
Capacity: 30+1
Max tool diameter (full): 64 mm (2.5 in)
Max tool diameter (adjacent empty): 127 mm (5.0 in)
Max tool length: 406 mm (16 in)
Tool-to-tool time (avg): 2.80 s
Chip-to-chip time (avg): 3.60 s
Utilities
Coolant capacity: 360 L (95 gal)
Air required: 113 L/min @ 6.9 bar (4 scfm @ 100 psi)
Minimum air pressure: 5.5 bar (80 psi)
Electrical
Input AC voltage (3-phase) low: 220 VAC, full load amps: 70 A
Input AC voltage (3-phase) high: 440 VAC, full load amps: 35 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
