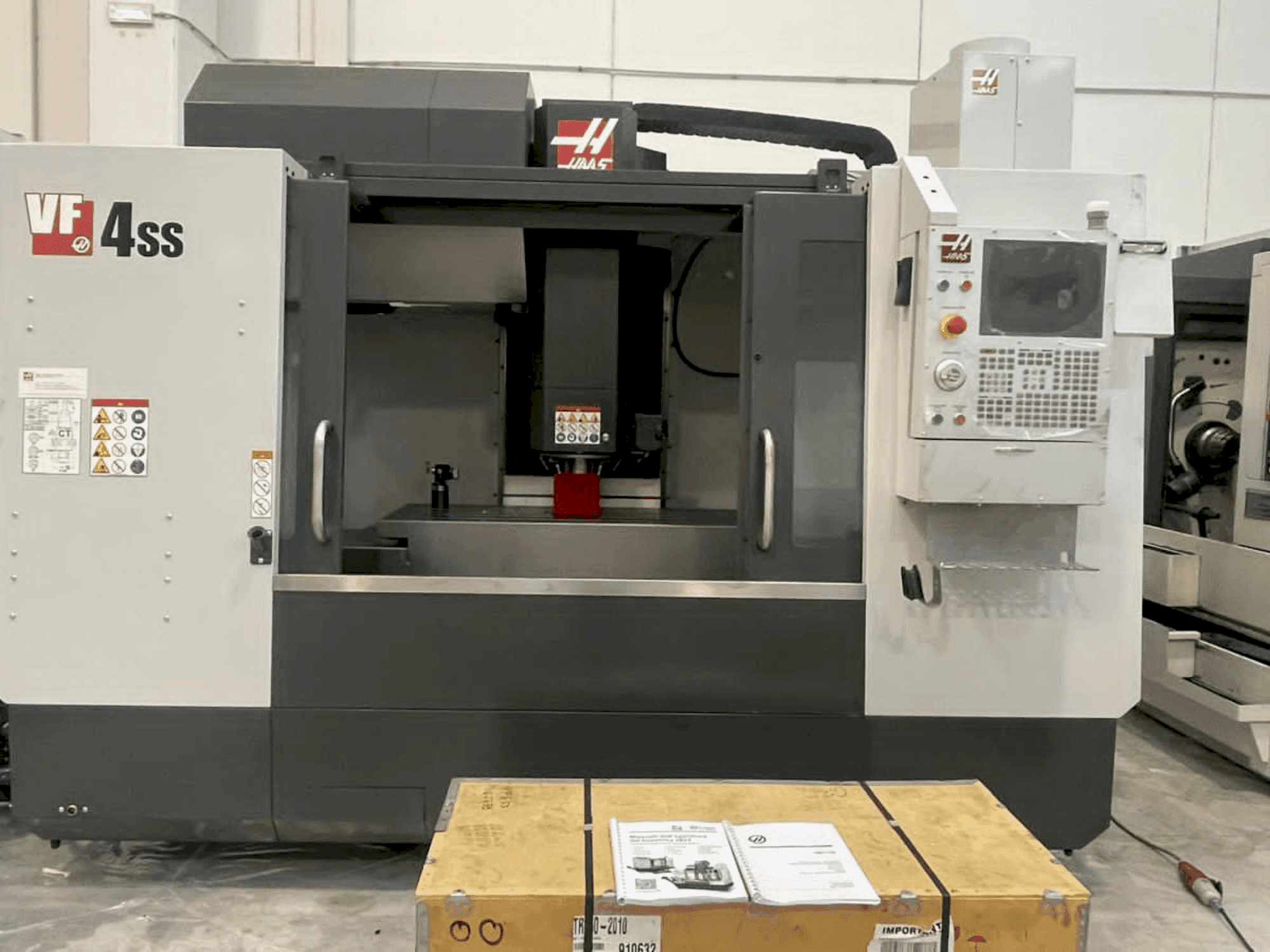

Front view of HAAS VF4SS (2019)  machine

HAAS VF4SS

HAAS - VF4SS

2019

Rs. 7,937,250

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF4SS used vertical machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit and has an Ethernet interface. The HAAS 5th axis transmission allows the use of a HAAS rotary table or indexer. The machine disposes of a 1 GB of memory for programs, a 15” COLOR LCD remote monitor, a USB port with memory lock key and a WiFi connection for HAAS control. There are a lot of options fitted on the machine that can be included.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF4SS
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: IT-MIL-HAA-2019-00004

Technical Information

Control Unit

  • Brand: HAAS
  • Interface: Ethernet

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 1270 MM
  • Y-AXIS Movement: 508 MM
  • Z-AXIS Movement: 635 MM

    Additional equipment

    • - CT OPTION Allows the use of rotary tables
    • - High Speed ​​Processing
    • - RENISHAW Wireless Intuitive Probe System includes Macro
    • - Dynamic workpiece offset and tool center point control
    • - 32 GB expanded memory // Wifi camera
    • - Remote handwheel with color touchscreen display
    • - Programmable coolant nozzle // Cooling unit for CNC control cabinet // Coolant circulation in the spindle at 21 Bar // Auxiliary coolant filter system free from particulates under 5 microns
    • - HAAS fairing condensation and smoke exhaust system
    • - Chip tray filter kit includes 200 micron filter and chip basket
    • - Work Table Light

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cone ct40 din 69871
        • - Haas 5th axis transmission allows the use of a haas rotary table or indexer
        • - 30 hp (22. 4 kw) vector drive 12,000 rpm.
        • - High speed lateral 30 + 1 tool change mechanism
        • - Rapid feed 35. 6 m/min.
        • - Power failure detection module
        • - 15” color lcd remote monitor
        • - Usb port, memory lock key
        • - Rigid tapping and 208 liter cooling system
        • - Code m media display
      • Qualitative Machine Benefits:
        • - 1 gb of memory for programs
        • - Wifi connection for haas control

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
