HAAS - VF-6B/40HEHR-MIL-HAA-2003-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-6B/40HE Vertical Machining Center

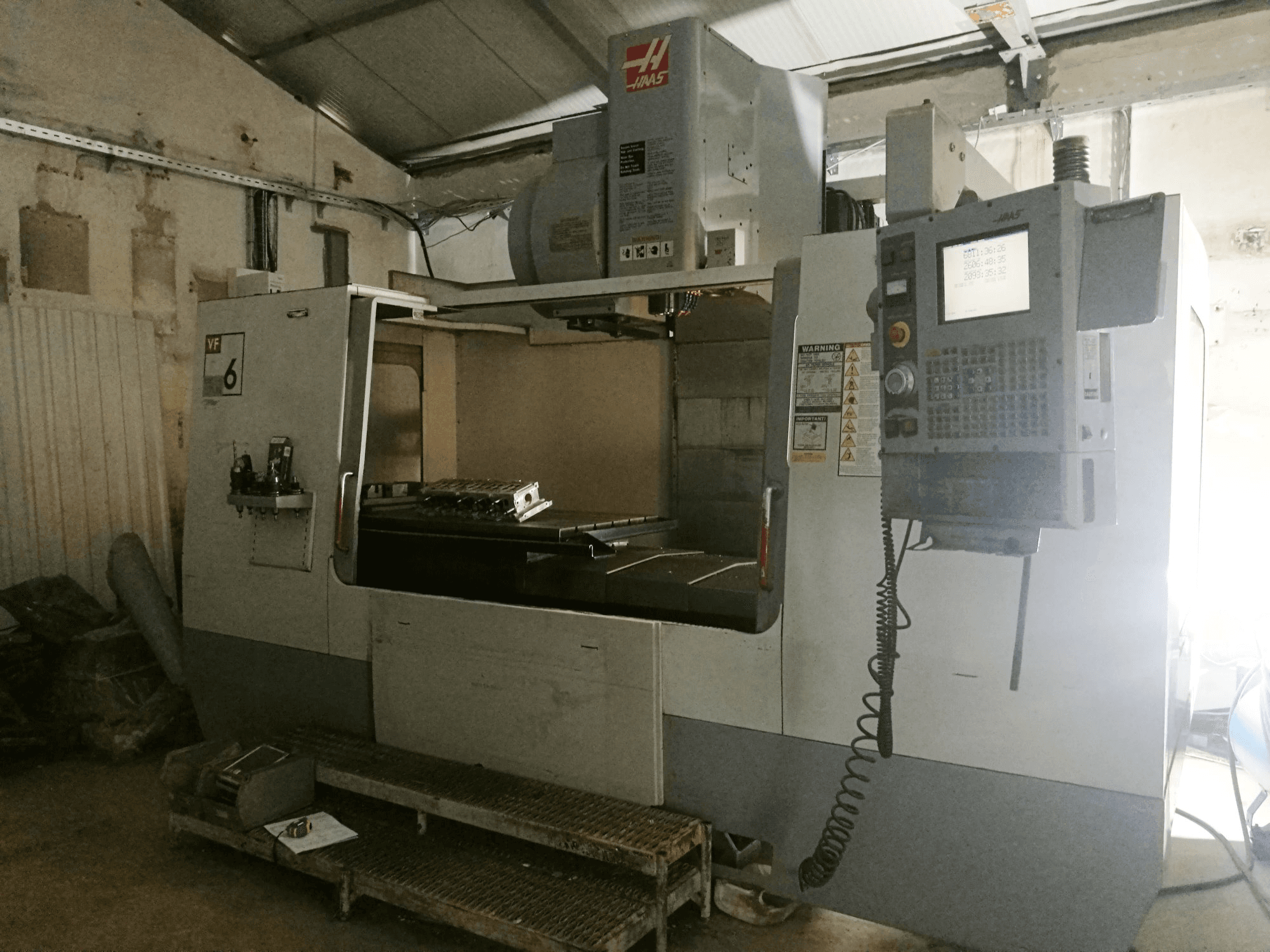

This HAAS VF-6B/40HE Vertical Machining Center, made in USA in 2003, has a production record of 6800 working hours. Equipped with a Control unit of the same brand, this model stands out due to its big table and for mainly working with steel during the past. Some additional equipment such as a tool changer and rotary units are included.
Overview
- brand: HAAS
- year: 2003
- MODEL: VF-6B/40HE
- production hours: 6800
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-6B/40HE
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 3300 mm
- Machine Height: 3300 mm
- Machine Weight: 10200 kg
- Table Length: 1626 mm
- Table Width: 711 mm
Movement
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Spindle Speed: 8100 RPM
Additional Information
Additional equipment
- Automatic Tool Changer (24+1)
- HAAS Rotary unit 4th axis
- Machine Vice
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
