HAAS - VF-4IT-MIL-HAA-2024-00002

Name: HAAS VF-4
Brand: HAAS
SKU: IT-MIL-HAA-2024-00002
Price: 9105030 INR
Availability: InStock

Rs. 9,105,030

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-4 Machining Center For Sale | gindumac.com

Show in original language

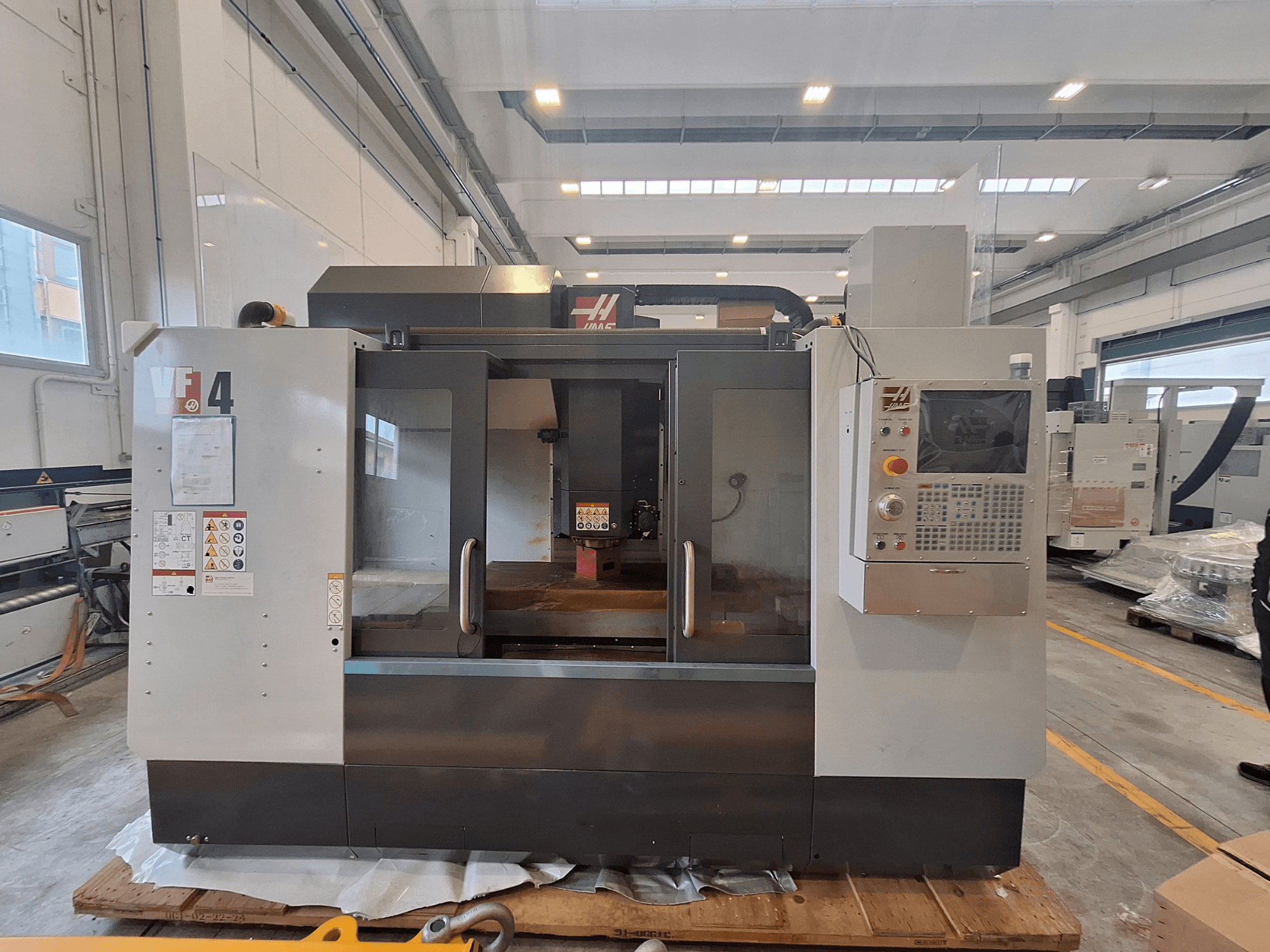

This 3-axis HAAS VF-4 was manufactured in 2024. It features impressive travels of 1270 mm in the X-axis, 508 mm in the Y-axis, and 635 mm in the Z-axis. The machine includes a robust table size of 1321 x 457 mm and a maximum table load of 1588 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2024
MODEL: VF-4
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - HAAS VF-4

Dimensions

Machine Height: 2570 mm
Machine Length: 3330 mm
Machine Weight: 5316 kg
Machine Width: 2340 mm

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 508 mm
Z-axis Travel: 635 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 10000 RPM

Additional Information

Feed Force: X: 11343 N; Y: 11343 N; Z: 18683 N
Rapid Traverse: 25.4 m/min
Outer length: 1321 mm
Outer width: 457 mm
Tslots size: 15.90 mm to 16.00 mm
Number of tslots: 5
Max distance between vertical spindle and table: 742 mm
Table load: 1588 kg
Number of tool slots: 30+1
Max tool length: 330 mm
Main electronic connection: 220 VAC / 440 VAC, 3 Phase
Air pressure: 5.5 bar
Air supply: 113.0 L/min @ 6.9 bar
Showroom Machine
Spindle nose to table (~ min): 107 mm
Max torque: 122.0 Nm @ 2000 rpm
Max torque with optional gearbox: 339 Nm @ 450 rpm
Bearing lubrication: Air / Oil Injection
Cooling: Liquid Cooled
T-Slot center distance: 80 mm
Max cutting feedrate: 16.5 m/min
Tool changer type: Side-Mount Tool Changer (SMTC)
Max tool diameter (full): 64 mm
Max tool weight: 5.4 kg
Tool-to-tool (avg): 2.80 s
Chip-to-chip (avg): 3.60 s
Coolant capacity: 208 L
Inline air hose: 3/8 in
Coupler (Air): 3/8 in
Input AC voltage (3 Phase) low: 220 VAC (Full Load Amps: 70 A)
Input AC voltage (3 Phase) high: 440 VAC (Full Load Amps: 35 A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
