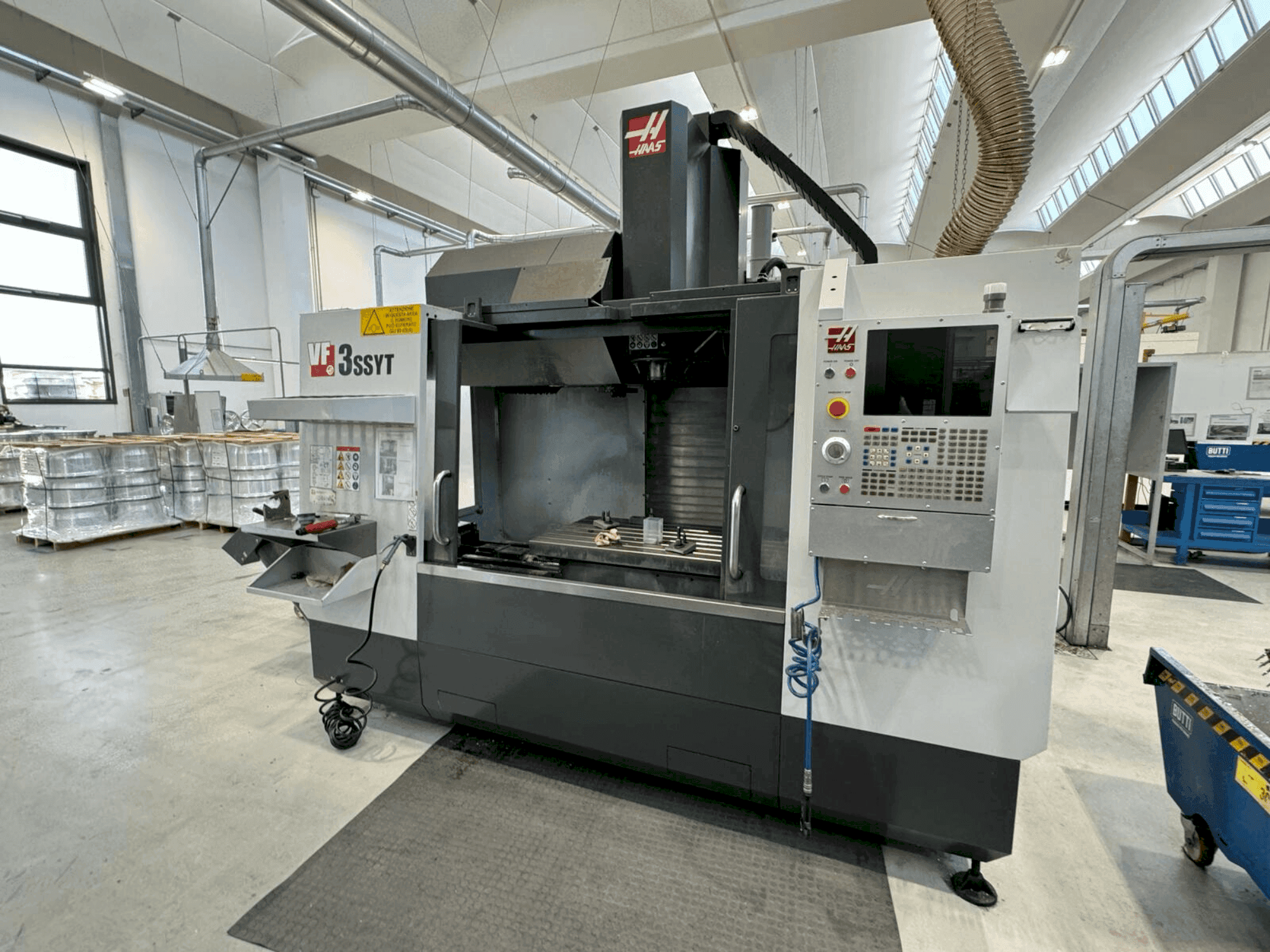

Front view of HAAS VF-3SSYT  machine

HAAS VF-3SSYT

HAAS - VF-3SSYT

2019

Rs. 5,149,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF-3SSYT Vertical Machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 and a cone type BT 40.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF-3SSYT
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: IT-MIL-HAA-2019-00003

Technical Information

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22,4 kW

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 660 mm
  • Z-AXIS Movement: 635 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle nose to table (~ max) 742 mm, spindle nose to table (~ min) 107 mm
      • - Spindle (s. A. E. And metric)
      • - Max torque 90,0 ft-lbf @ 2000 rpm 122,0 nm @ 2000 rpm
      • - Drive system inline direct-drive inline direct-drive
      • - Cone type bt 40
      • - Bearing lubrication air / oil injection air / oil injection
      • - Cooling liquid cooled liquid cooled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
