➤ Used HAAS UMC-750SS For Sale | gindumac.com

Show in original language

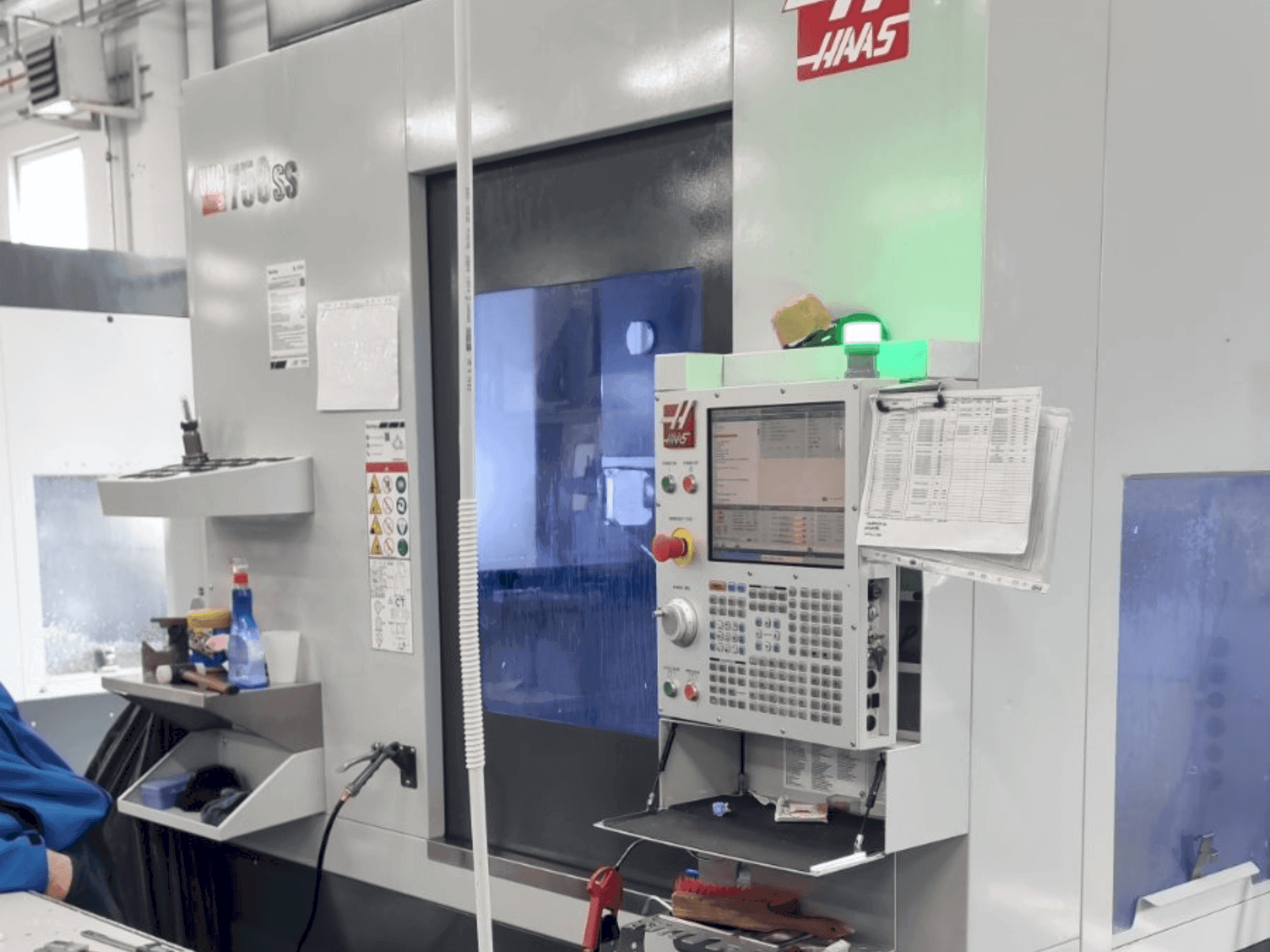

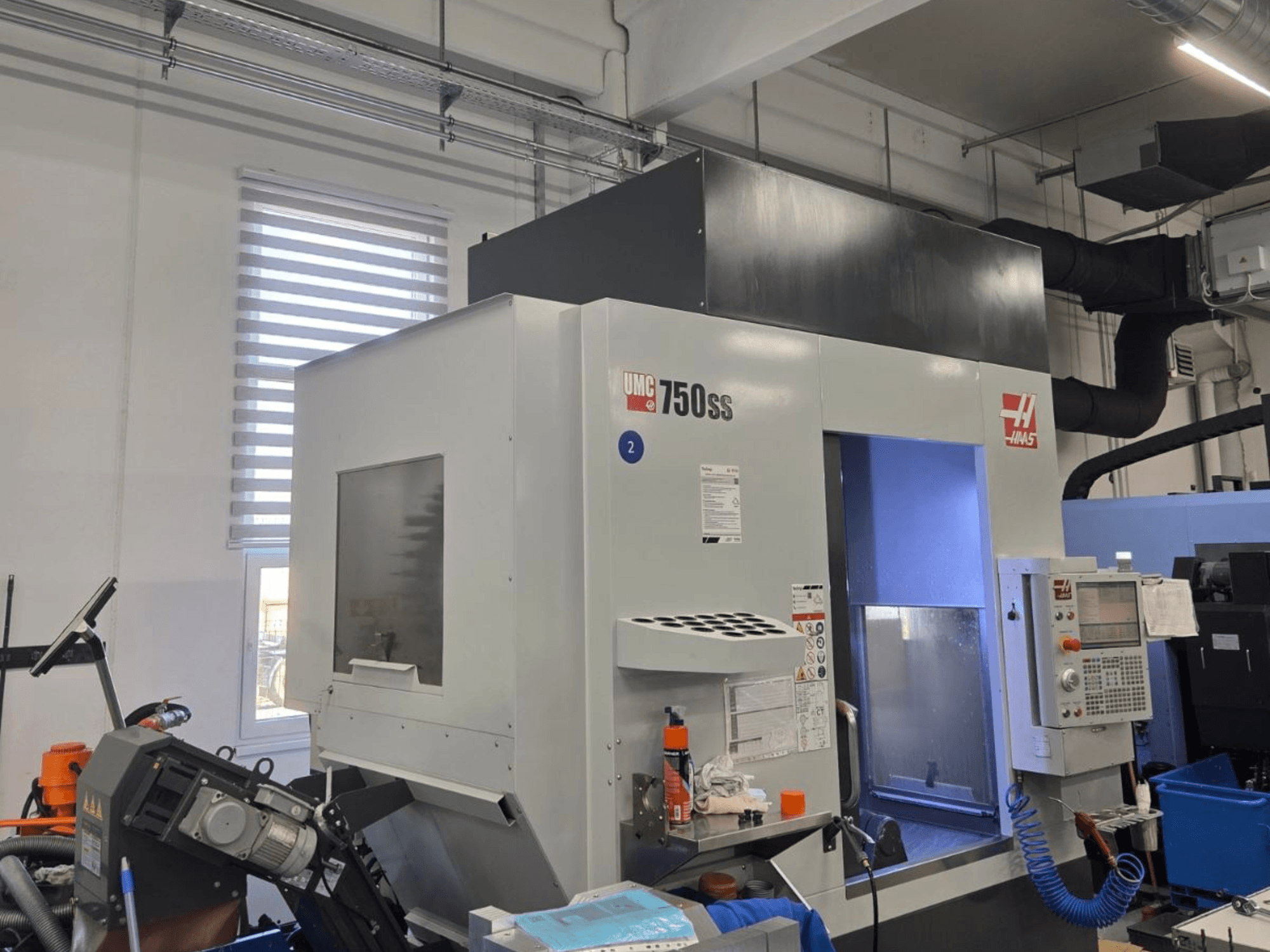

This 5-axis HAAS UMC-750SS vertical machining center was manufactured in 2021. Consider the opportunity to buy this HAAS UMC-750SS vertical machining center. Contact us for more information.

Overview

brand: HAAS
year: 2021
MODEL: UMC-750SS
application type: Milling
Location: Bosnia and Herzegovina
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS UMC-750SS

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Additional equipment

- Coolant tank – 208 liters with mobile cart
- Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL)
- Safe Run – crash and overload detection system
- Control cabinet surge protection
- Voltage fault detection module (EPFDM)
- Second Home Position button
- Remote Jog Handle with 2m cable (RJH-XL)
- Memory lock key-switch
- Rotary axis scales
- Top cover

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 30+1 tool side-mount tool changer
- - Wireless intuitive probing system (wips)
- - Broken tool detection (btd)

Extra information

- Media display via M130 (images, videos, PDF on screen) Standard machine memory: 1 GB Control Unit 15" color LCD monitor with USB port Touchscreen control interface Ethernet interface HaasConnect remote monitoring HaasDrop wireless file transfer WiFi connectivity Controller High-speed machining (HSM) Rigid tapping Dynamic Work Offsets / Tool Center Point Control (DWO/TCPC) Macro programming, coordinate rotation & scaling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
