HAAS - UMC 500-SS MIT APLDE-MIL-HAA-2021-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HAAS UMC 500-SS MIT APL Vertical Machining Center
Show in original language

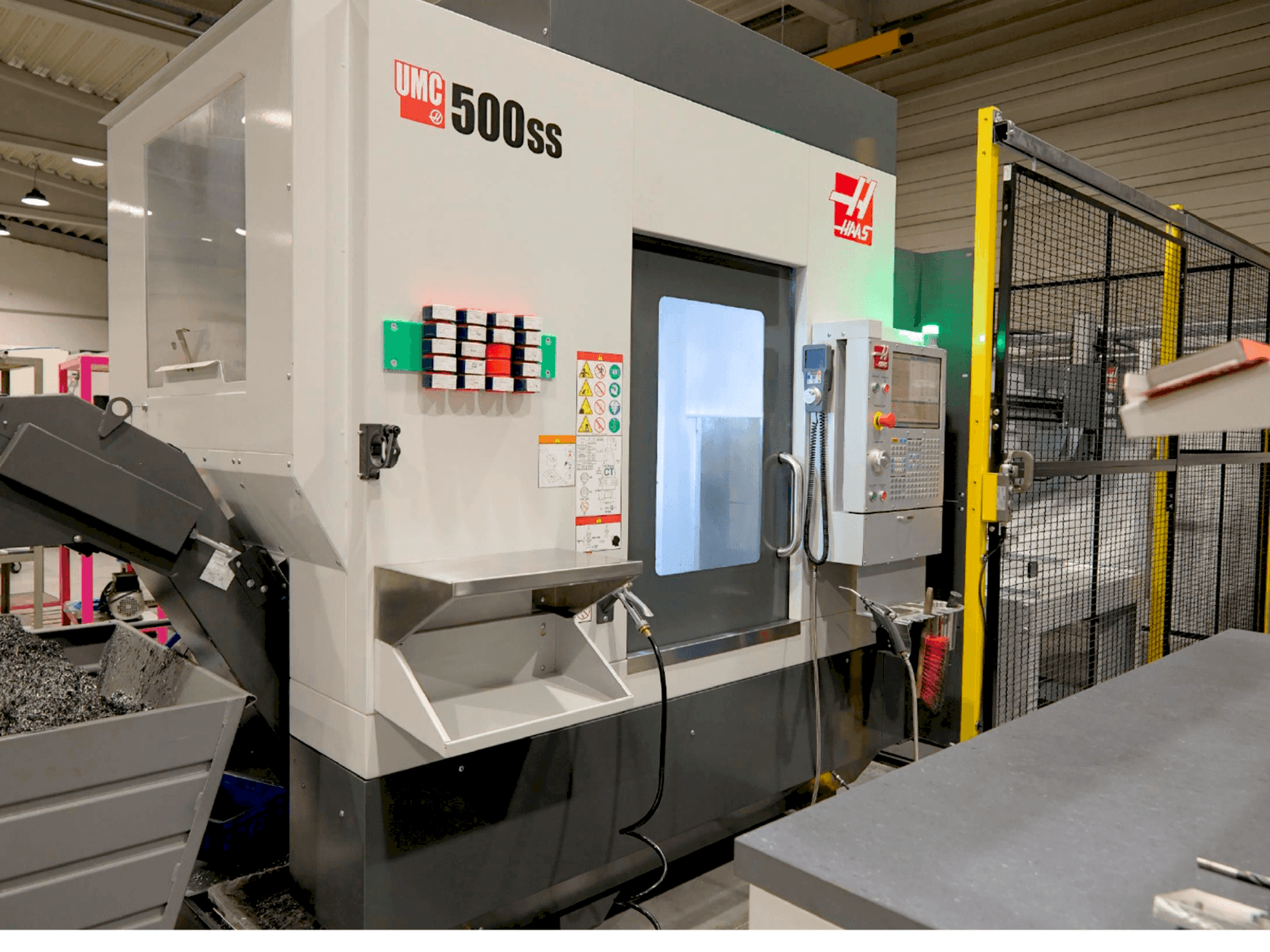

This HAAS UMC 500-SS MIT APL Vertical Machining Center was manufactured in 2021 in the United States and has 4650 production hours, of which 2243 are spindle hours. It is controlled by a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.
Overview
- brand: HAAS
- year: 2021
- MODEL: UMC 500-SS MIT APL
- production hours: 4650
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS UMC 500-SS MIT APL
Control Unit
- Control Brand: HAAS
Dimensions
- Table Length: 400 mm
Movement
- B-axis Max: 120°
- B-axis Min: -35°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 610 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 406 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Number of Tools: 30
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Wlan interface, haas save run
- Continued haas drop - wireless data transmission
- Handwheel with touch screen
- Synchronous thread cutting
- Dynamic workpiece offset and tool centre point control
- "high-speed machining 1gb programme memory
- Measuring system in the rotary axes
- Automatic workpiece loader (apl)
- Ce-compliant safety fence for apl
- Continuation 2-channel hydraulic rotary feed-through in the swivel rotary table incl.
Technical Machine Benefits
- Rapid traverse: 30m/min in x-, y- and z-axis
- Direct path measuring system in all 3 axes
- Clamping hydraulic 2514 nm in b and c
- Renishaw workpiece and tool measuring probe
- 208l coolant tank
- Variable coolant pressure, adjustable via m-function
- Control cabinet cooling ,touchscreen contro
- M130 media display, haasconnect remote monitoring
- Early detection module for power failure
- Ethernet interface
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
