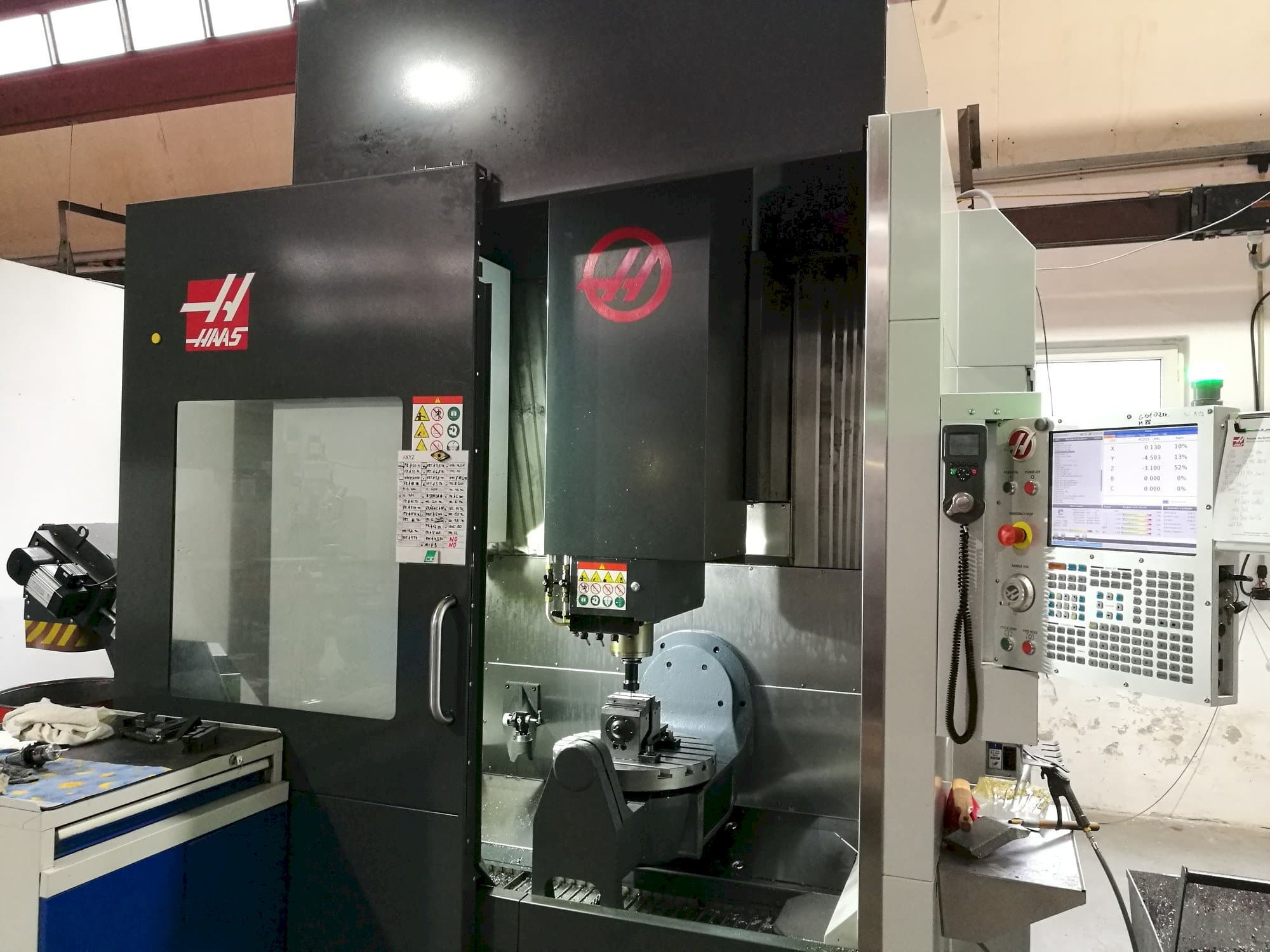

Left side view of HAAS UMC - 750 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAAS UMC - 750

Photo Gallery

HAAS - UMC - 750SK-MIL-HAA-2018-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ HAAS UMC - 750 Vertical Machining Center - Used

Show in original language

This HAAS UMC - 750 Vertical Machining Center was built in the year 2018 in the United States. It has been working for 3690 (1379 cutting time) hours since then. It is equipped with a HAAS control unit. This machine can work with a spindle speed up to 12000 rpm. It includes an Hard Disk of 1GB, and an USB Port. It presents very good conditions.

Overview

brand: HAAS
year: 2018
MODEL: UMC - 750
production hours: 3690
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC - 750

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2387 mm
Machine Height: 2565 mm
Machine Weight: 8700 kg
Table Length: 500 mm
Table Width: 500 mm

Movement

X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 508 mm

Technical Specification

Number of Tools: 40
Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good conditions
Hard disk 1gb, usb port

Technical Machine Benefits

C axis 360 degrees
B axis +110 degrees/-35 degrees
Min. -max. Height under spindle 102-610 mm
Feedrate 16. 5 m/min.
Rapid feedrate 30. 5 m/min.
Probing system
Programmable coolant nozzle
Internal cooling 21 bar
High-speed machining
Belt-type chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
