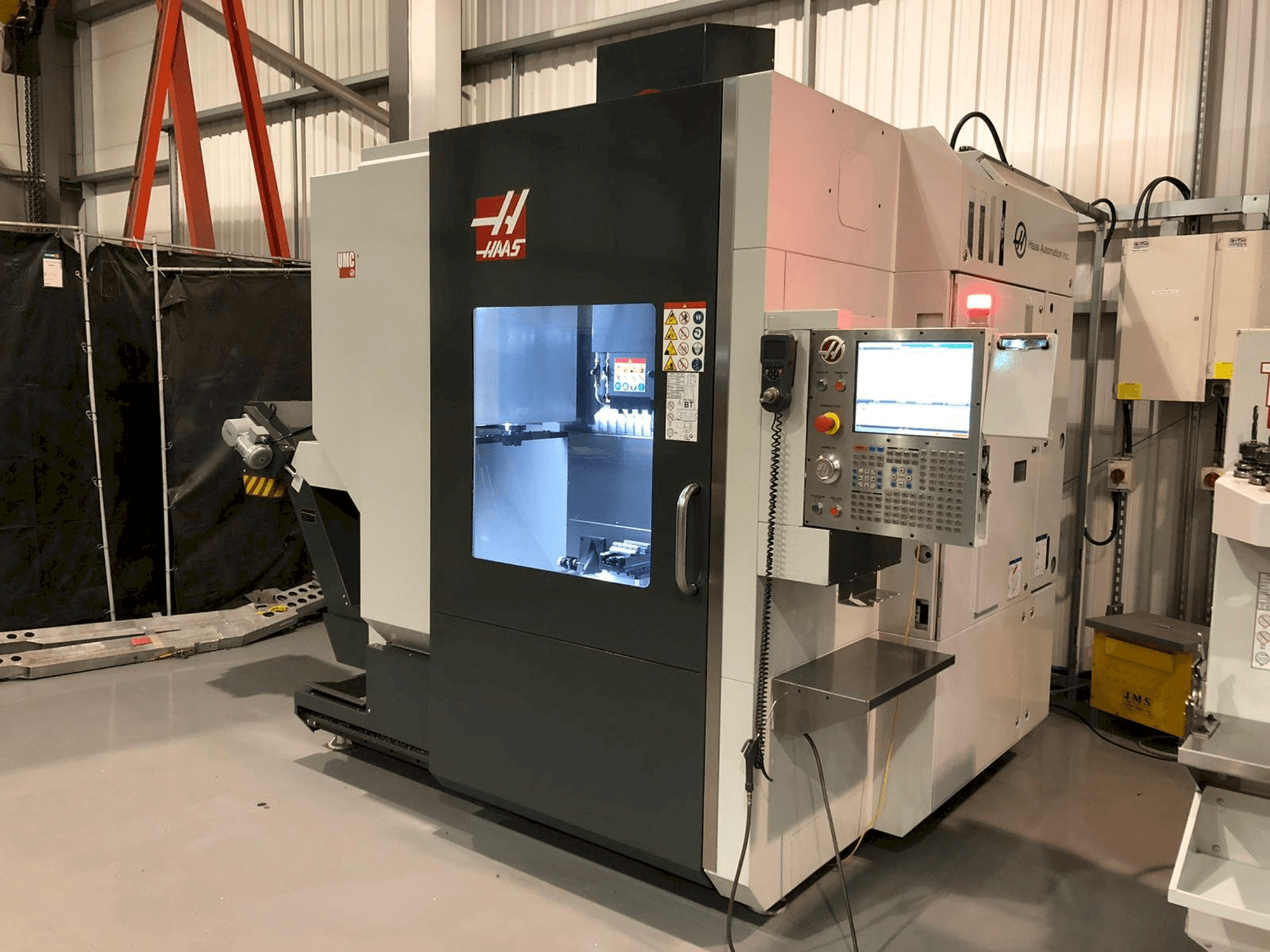

This HAAS UMC - 750 Vertical Machining Center was manufactured in the year 2017. Equipped with a control unit from the same brand, this machine operates with a spindle speed up to 12000 rpm with a simultaneous axis operation.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: UMC - 750
  • application type: Milling
  • Location: United Kingdom
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS UMC - 750

Control Unit

  • Control Brand: HAAS

Dimensions

  • Machine Depth: 2387 mm
  • Machine Height: 2565 mm
  • Machine Weight: 8700 kg
  • Table Length: 500 mm
  • Table Width: 500 mm

Movement

  • B-axis Max: 110°
  • B-axis Min: -35°
  • C-axis: 360°
  • X-axis Travel: 762 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 12000 RPM
  • Tool Stations: 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Very good conditions

Technical Machine Benefits

  • Min. -max. Height under spindle: 102-610 mm
  • Feedrate: 16. 5 m/min
  • Rapid feedrate: 30. 5 m/min
  • Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
