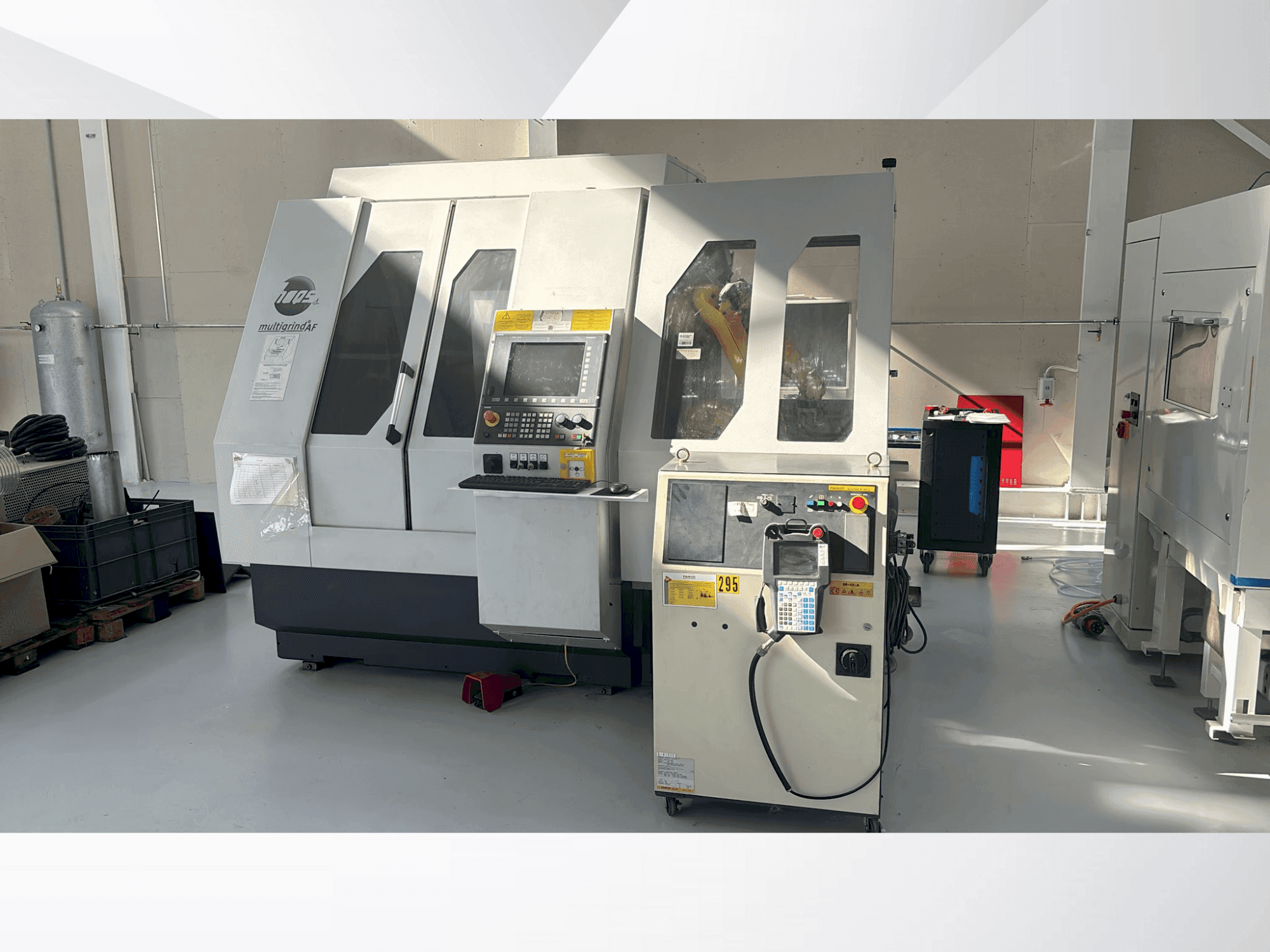

HAAS Multigrind AF/SL

Photo Gallery

HAAS - Multigrind AF/SLCH-GRI-HAA-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS Multigrind AF/SL For Sale | gindumac.com

Show in original language

This 5-axis HAAS Multigrind AF/SL grinding machine was manufactured in 2010. It features a robust Siemens Sinumerik 840D CNC control, a grinding spindle speed range of 2,000 to 8,000 rpm, and a spindle power of 12 kW. The machine includes a Fanuc Model M-10iA Robotic Loader for enhanced automation and efficiency. Ideal for complex grinding tasks, the HAAS Multigrind AF/SL machine we have for sale is a significant asset for precision machining. Contact us for further details regarding this grinding machine.

Overview

brand: HAAS
year: 2010
MODEL: Multigrind AF/SL
application type: Grinding
Location: Switzerland
machine type: Cylindrical Grinding Machine
control unit brand: SIEMENS

Technical Information - HAAS Multigrind AF/SL

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Dimensions

Machine Depth: 4000 mm
Machine Height: 3000 mm
Machine Weight: 9000 kg
Table Length: 1000 mm
Table Width: 270 mm

Movement

A-axis Max: 360°
X-axis Travel: 400 mm
Y-axis Travel: 270 mm
Z-axis Travel: 250 mm

Technical Specification

Spindle Power: 12 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Fanuc Model M-10iA Robotic Loader
Robotic control: SYSTEMR-30/A Control
Disc guard change
Pneumatic cylinder tension/compression clamping force up to 17000 N

Machine Benefits

Technical Machine Benefits

Grinding spindle diameter: 90 mm
Grinding disc diameter: 225 mm
Grinding disc width: 50 mm
Center distance: 300 mm
Includes two grinding spindle ends, high-resolution measuring systems, infinite rotation angle for dividing head
Workpiece holder: iso 50 / centre 70h5

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
