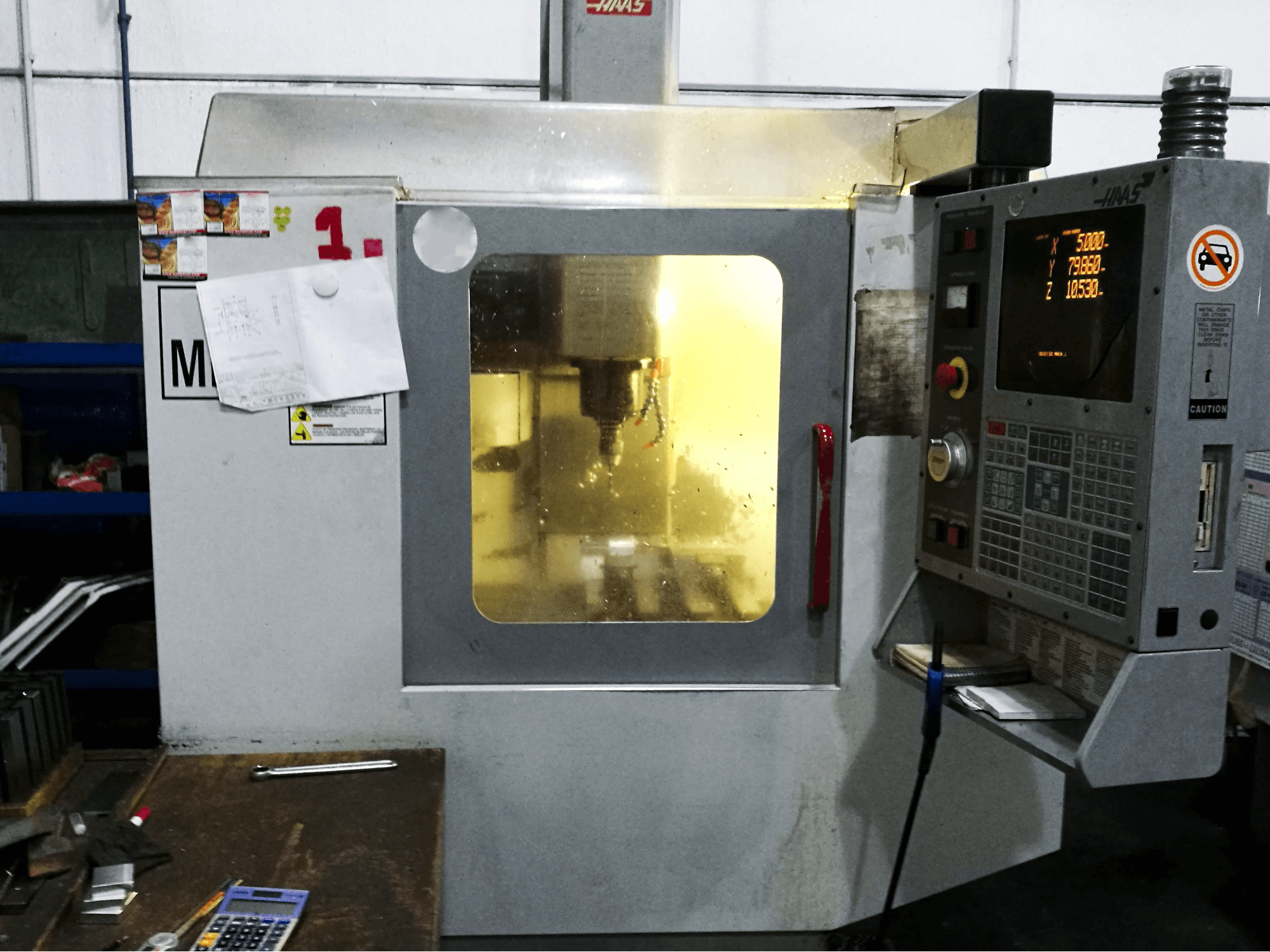

Working room of HAAS Mini-Mill HE Machine
Working room of HAAS Mini-Mill HE Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

HAAS - Mini-Mill HEES-MIL-HAA-2002-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS Mini-Mill HE Machining Center was manufactured in 2002 and has a record of 7500 production hours ever since. Operated through a HAAS with remote control Control unit, the model is compact and precise, and ideal to handle smaller pieces. In the past, this machine has produced mainly special pieces for the Machine tool industry.

Overview

  • brand: HAAS
  • year: 2002
  • MODEL: Mini-Mill HE
  • production hours: 7500
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS Mini-Mill HE

General Data

  • Measurements width: 1731 mm
  • Measurements depth: 1372 mm
  • Measurements height: 2489 mm
  • Machine weight: 1543 kg

Control Unit

  • Brand: HAAS
  • Remote control: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/min
  • Spindle motor power: 5.6 kW
  • Tool taper: BT-40

Movement

  • X-AXIS Movement: 406 mm
  • X-AXIS Working Feed: 12700 mm/m
  • X-AXIS Rapid traverse: 16510 mm/m
  • Y-AXIS Movement: 305 mm
  • Y-AXIS Working Feed: 12700 mm/m
  • Y-AXIS Rapid traverse: 16510 mm/m
  • Z-AXIS Movement: 254 mm
  • Z-AXIS Working Feed: 12700 mm/m
  • Z-AXIS Rapid traverse: 16510 mm/m

Workpiece

  • Workpiece weight: 227 kg

Table

  • Outer length: 914 mm
  • Outer width: 305 mm
  • Number of tslots: 3
  • Distance between: 15875 mm

Tools

  • Slots in storage: 10
  • Max weight: 5.44 kg
  • Max tool diameter: 88.9 mm

Media

  • Main electronic connection: 366/425 V
  • Air pressure: 6.9 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
