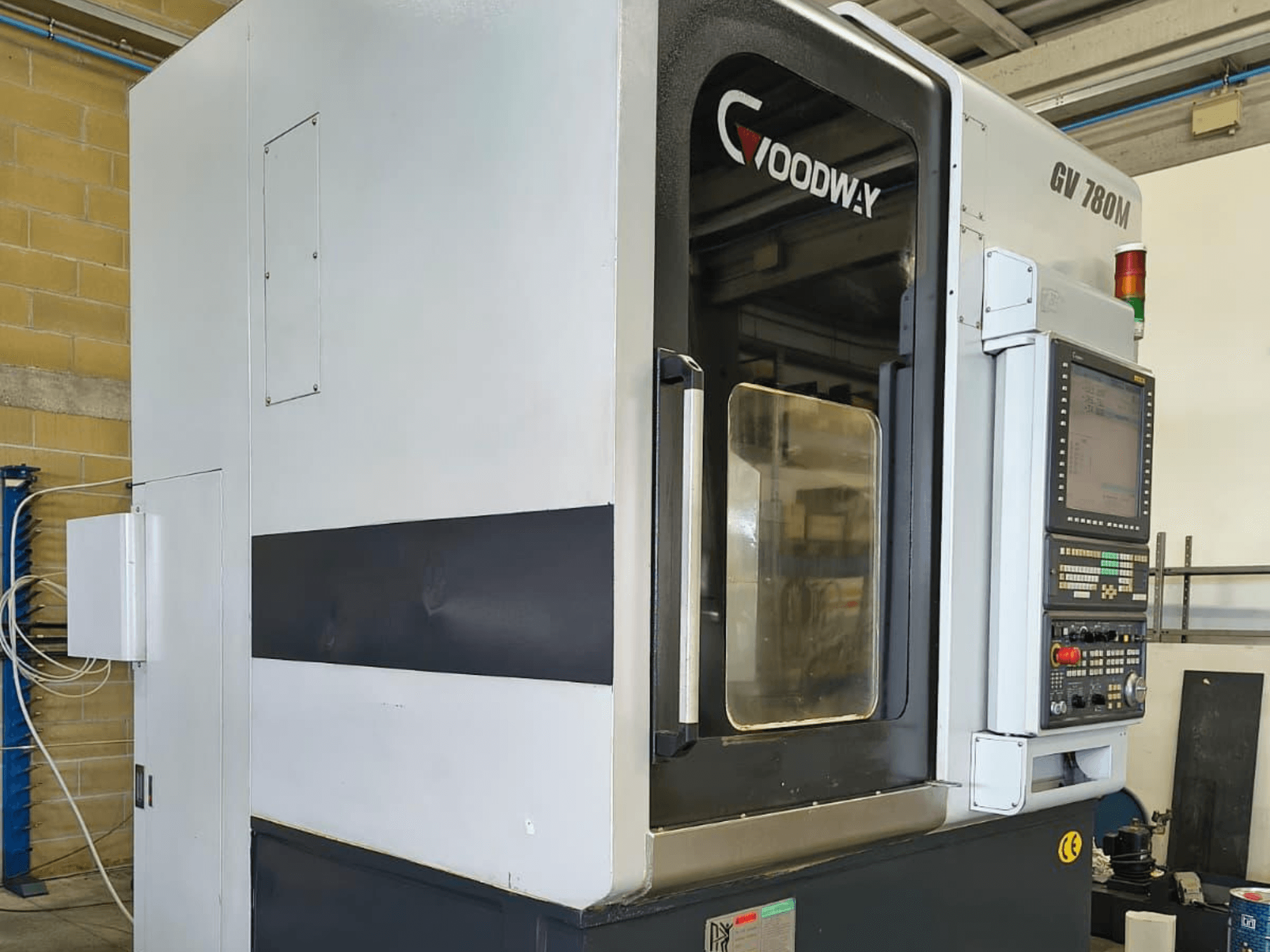

This 3-axis Goodway GV 780 M vertical turning machine was manufactured in 2015. It features a maximum machining diameter of 820 mm and an X-axis travel of 500 mm. The machine includes a 450 mm main chuck and a turret with 12 positions, including 4 driven tool stations. If you are looking to get high-quality turning capabilities, consider the Goodway GV 780 M machine we have for sale. Contact us for further details.
Overview
- brand: Goodway
- year: 2015
- MODEL: GV 780 M
- application type: Turning
- Location: Italy
- machine type: Vertical Turning Machine
- control unit brand: FANUC
Technical Information - Goodway GV 780 M
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-Model B
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Z-axis Travel: 670 mm
Technical Specification
- Driven Tools: Yes
Additional Information
Max machining diameter: 820 mm
Main chuck: 450 mm Kitagawa (B-18 type visible)
Turret: 12 positions (incl. 4 driven/motorized tool stations)
Driven tool capability: M-type (milling function)
Tool presetter: Automatic
Coolant/high pressure system: 5 bar
Additional equipment
Chip conveyor (side-mounted, hinge type)
Hydraulic unit
Cooling system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
