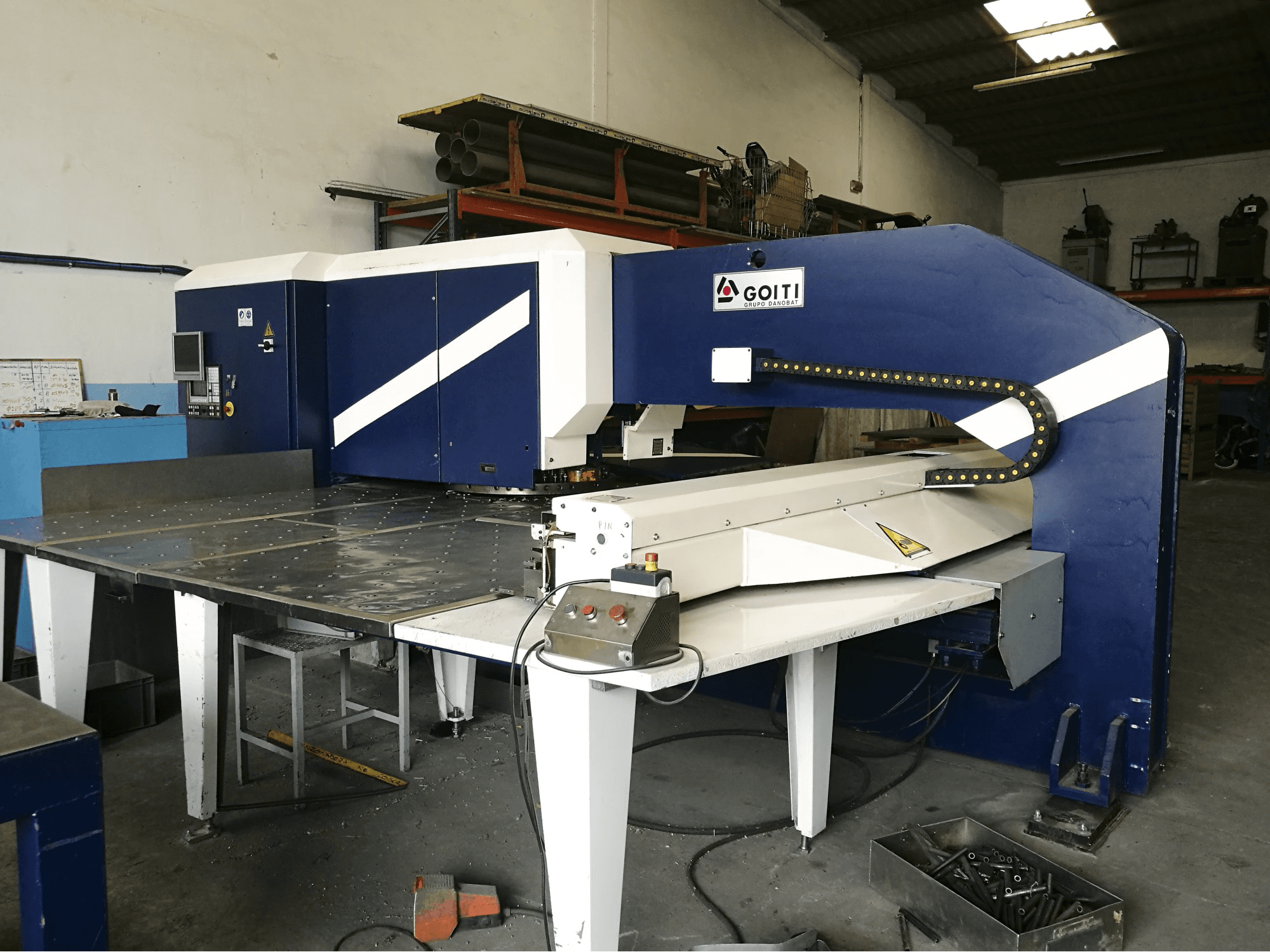

GOITI PGA-2 Turret Punching Machine

Show in original language

This GOITI PGA-2 Turret Punching Machine dates from the year 1998 and has worked during approximately 30000 production hours since its manufacture. This machine operates through a Fagor Control unit and stands out through its quick tool-changing operation and easy handling. In the past, this equipment has worked most of its time on up to 4 mm thick iron, and received a new engine in July 2017. Additional tools are included as well.

Overview

brand: GOITI
year: 1998
MODEL: PGA-2
production hours: 30000
application type: Punching
Location: Spain
machine type: Turret Punching Machine
availability: Sold
control unit brand: Fagor
GINDUMAC ID: ES-PUN-GOI-1998-00001

Technical Information

General Data

Measurements width: 6555 mm
Measurements depth: 7000 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Brand: Fagor

Main drive

Punching force: 295 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 2500 mm
X-AXIS Rapid traverse: 80 m/mm
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 80 m/mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1500 mm
Workpiece z: 6 mm

Tools

Number of stations: 25

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 12 kVA
Air pressure: 6 bar
Lubrication tank: 3 L
Oil tank: 100 L
Oil pressure: 60 bar

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
