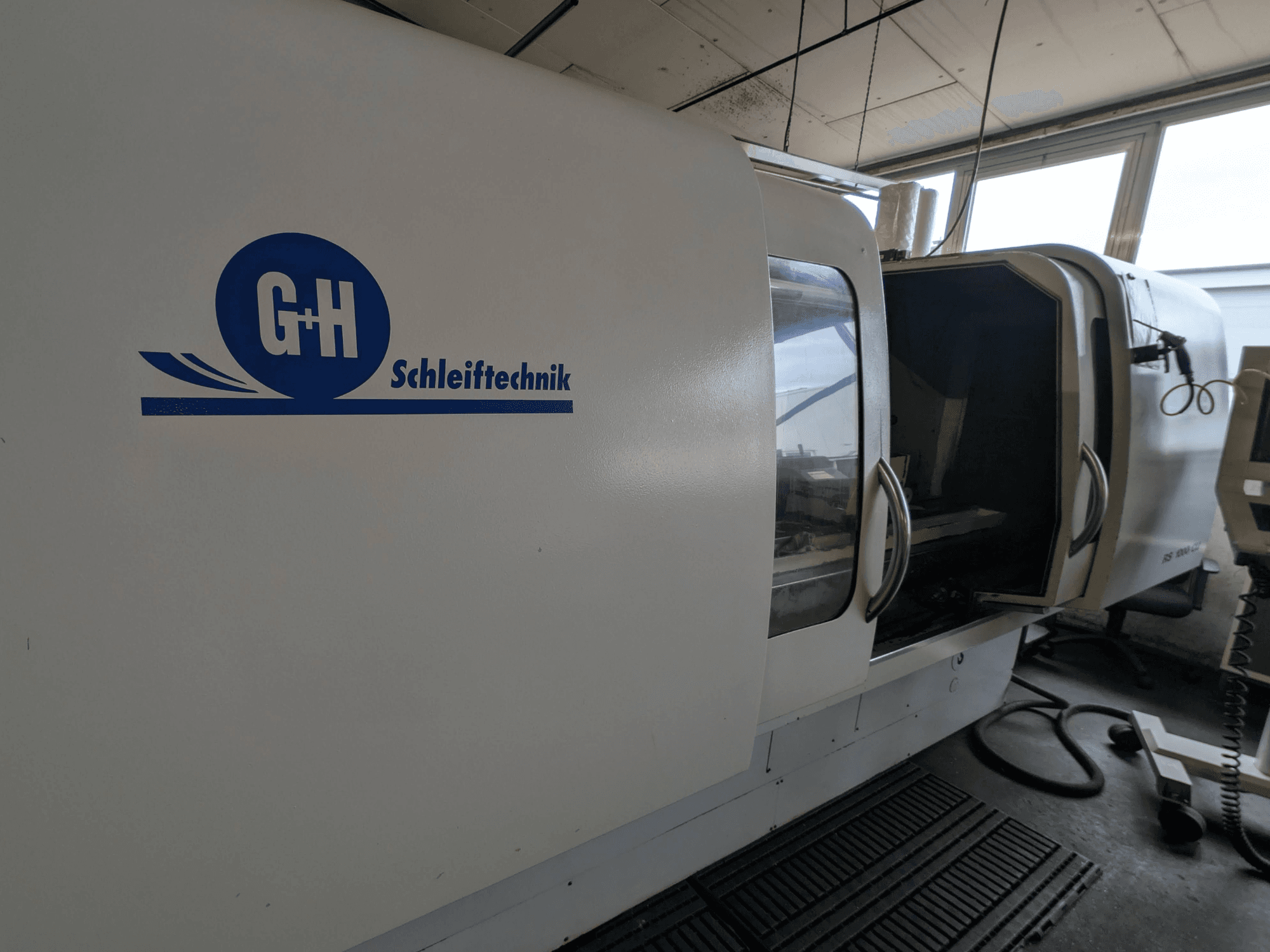

Cylindrical grinding machine manufactured in 2006. This GEIBEL & HOTZ RS 1000 CU features a center distance of 1000 mm and a maximum swing diameter of 355 mm. It is equipped with an electromechanical X-axis and Z-axis, offering feed rates of up to 12,000 mm/min. If you are looking to get high-quality grinding capabilities, consider the GEIBEL & HOTZ RS 1000 CU machine we have for sale. Contact us for further details.
Overview
- brand: GEIBEL & HOTZ
- year: 2006
- MODEL: RS 1000 CU
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: SIEMENS
Technical Information - GEIBEL & HOTZ RS 1000 CU
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D with SIMODRIVE 611D
Dimensions
- Machine Weight: 6200 kg
Movement
- Number of Axes: 2
Additional Information
Current defects:
Measuring probe is defective
Switch in the coolant reservoir for controlling the pump is defective
Axis configuration: 2-axis (X, Z)
Center distance: 1000 mm
Center height: 180 mm
Max. swing diameter: 355 mm
Max. workpiece weight: 150 kg between centers; 60 kg in chuck (including clamping device)
X-axis:
Drive: electromechanical with ball screw
Feed rate: 0.01–8,000 mm/min
Measuring system: glass scale, 0.0005 mm resolution
Z-axis:
Drive: electromechanical with ball screw
Feed rate: 0.01–12,000 mm/min
Measuring system: rotary encoder, 0.001 mm resolution
Workpiece spindle:
Motor power: 2.0 kW
Speed: 0–1000 rpm
Taper: MK5 and KK5 (DIN 55026)
Grinding spindle:
Motor power: 9 kW
Speed: 1400 rpm
Grinding wheel size (standard): 500 × 80 × 203.2 mm
Bearings: precision rolling bearings
Lubrication: lifetime lubrication
Required space: approx. 3900 × 2450 × 1800 mm
Power supply: 400 V, 50 Hz, 3-phase
Control voltage: 230/24 V
Installed power: approx. 23 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
