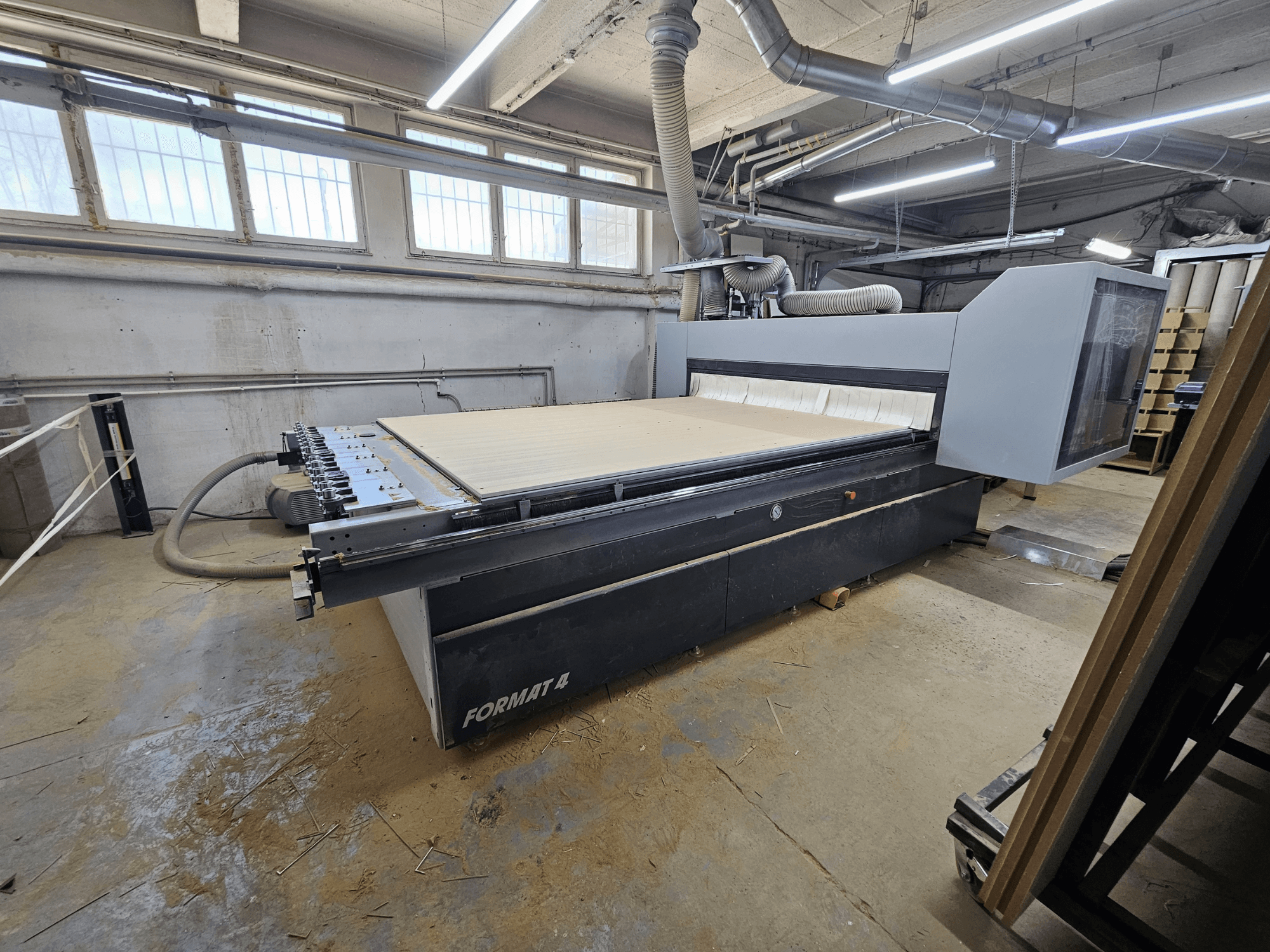

CNC Router FORMAT4 Profit H80 21.31 in workshop, side view with a large cutting surface and visible hose for dust extraction.
CNC Router FORMAT4 Profit H80 21.31 in workshop, side view with a large cutting surface and visible hose for dust extraction.

FORMAT4 - Profit H80 21.31PL-CNC-FOR-2021-00001

Rs. 5,031,316
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

CNC nesting machining centre manufactured in 2021. This FORMAT4 Profit H80 21.31 features a working area of 3090 x 2100 mm and a powerful 10 kW spindle with speeds up to 24,000 rpm. It includes an 8-spindle drilling head and a 15-position tool changer. If you are looking to get high-quality nesting capabilities, consider the FORMAT4 Profit H80 21.31 machine we have for sale. Contact us for further details.

Overview

  • brand: FORMAT4
  • year: 2021
  • MODEL: Profit H80 21.31
  • production hours: 5600
  • application type: CNC Wood Machining
  • Location: Poland
  • machine type: CNC Router

Technical Information - FORMAT4 Profit H80 21.31

Movement

  • X-axis Travel: 3090 mm
  • Y-axis Travel: 2100 mm
  • Z-axis Travel: 85 mm

Technical Specification

  • Spindle Power: 10 kW
  • Spindle Speed: 24000 RPM

Additional Information

  • Main spindle: HSK F63

  • Drilling head: DH8 with 8 vertical spindles

  • Tool changer: 15-position, machine-mounted

  • Vacuum system: 2 pumps, total 500 m³/h; prepared for an additional 250 m³/h pump

  • Lubrication: Automatic central lubrication

  • Table/configuration:

    • Matrix grid table (phenolic resin)

    • Extended referencing system with front and rear stop rows

    • Side stops for flexible panel positioning

    • Electronic control of 2 stop rows

  • Control and software:

    • WoodFlash Control (on-machine station)

    • F4Nest basic package

    • Extension for rectangular nesting

    • Integrated label printing module for nesting

    • Excel/XML import for job list automation

    • Remote diagnostics / teleservice via Internet

    • Remote handheld control terminal

    • Automatic tool length measurement in Z-axis

    • Central extraction hood with controlled shutters

    • Electrical and pneumatic preparation for interpolated C-axis

  • Condition/usage:

    • Operating hours: 5,500 h

    • Operation: Single-shift

    • Condition: Good technical condition

    • Service history: Regularly serviced by Felder (authorized service)

    • Availability: Can be started and demonstrated upon agreement

  • Notes: Operated using WoodFlash software; nesting optimization via F4Nest modules as listed above

Additional equipment

  • Automatic pusher/offloading unit

    • Motorized pusher height adjustment

    • Integrated table cleaning/extraction during offloading

  • Mobile labeling station with thermal label printer

  • WoodFlash Control external station (1 external programming station)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
