➤ Used FORMAT4 Creator 950 - 2021 - For Sale | gindumac.com

Show in original language

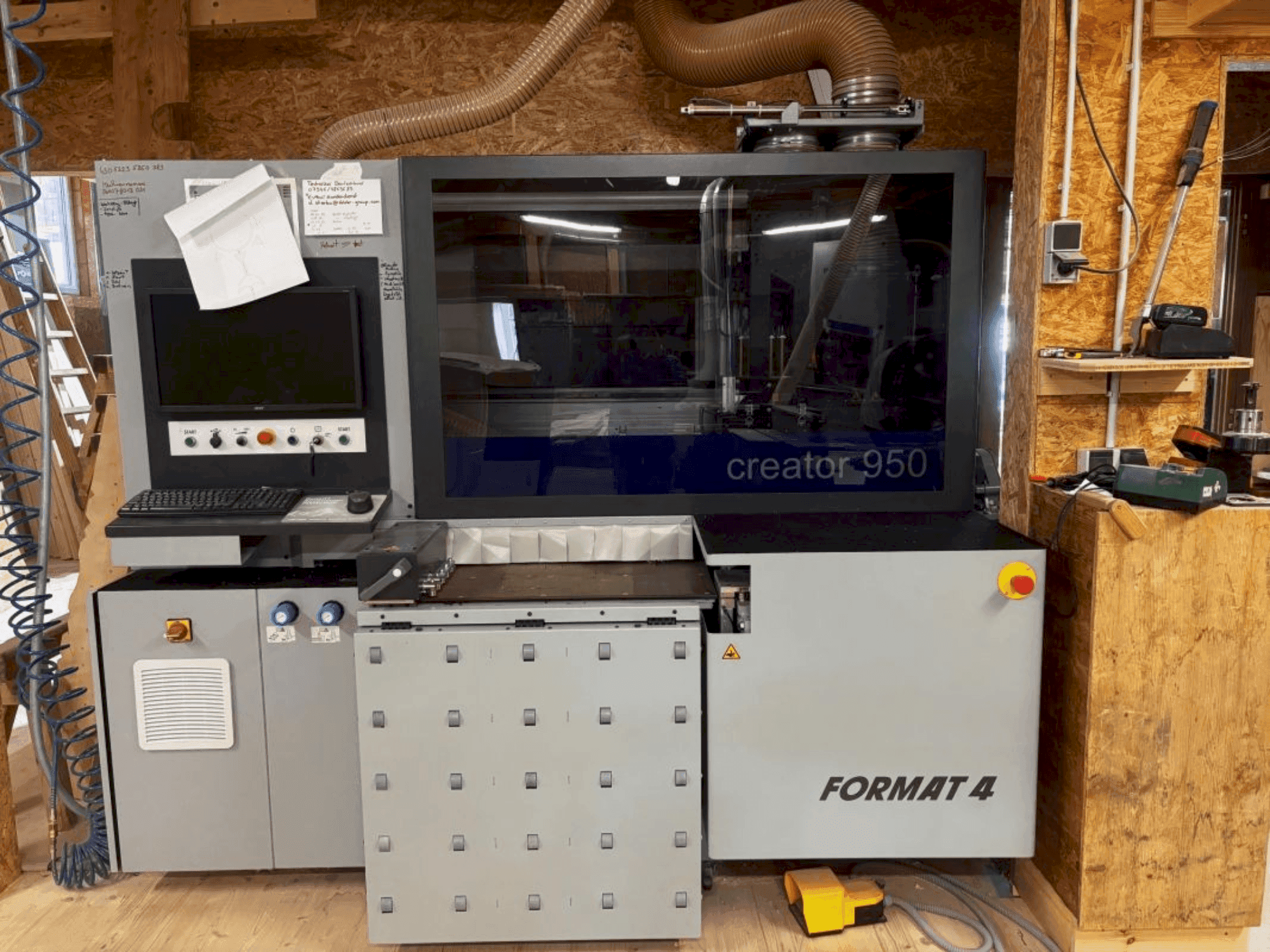

This 3-axis FORMAT4 Creator 950 CNC Wood Machining Centre was manufactured in 2021. Ideal for precision woodworking, it offers robust construction and advanced control features. Consider the opportunity to buy this FORMAT4 Creator 950 CNC Wood Machining Centre. Contact us for more information.

Overview

brand: FORMAT4
year: 2021
MODEL: Creator 950
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - FORMAT4 Creator 950

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 12 KW
Tool taper: HSK F63
Number of axis: 3

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 950 mm
Z-AXIS Movement: 80 mm

Table

Table load: 130 kg

Tools

Max weight: 7.5 kg

Additional Information

Additional equipment

Teleservice package via Internet
Automatic central lubrication
4-fold linear changer for use with power packs

Machine Benefits

Technical Machine Benefits

Drive: 3-phase hf motor controlled by inventor
Double clamp drive x-axis
Length measurement of workpiece in x
Drill head dh 17 6 h 1s

Extra Information

Control Unit Machine software: Woodflash Complete control management: CNC machine for 2 workstations - 1 machine workstation and 1 external workstation Tools Drill head DH 17 6 H 1S 11 Vertical spindles 6 Horizontal spindles 1 Grooving saw in X-direction Safety device for CE conformity: Emergency stop switch Safety curtain Controlled central suction connection Technical data and descriptions are for information purposes only and are not binding.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
