FORMAT4 - CNC CREATOR 950DE-MIL-FOR-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used FORMAT4 CNC CREATOR 950 - For Sale | gindumac.com

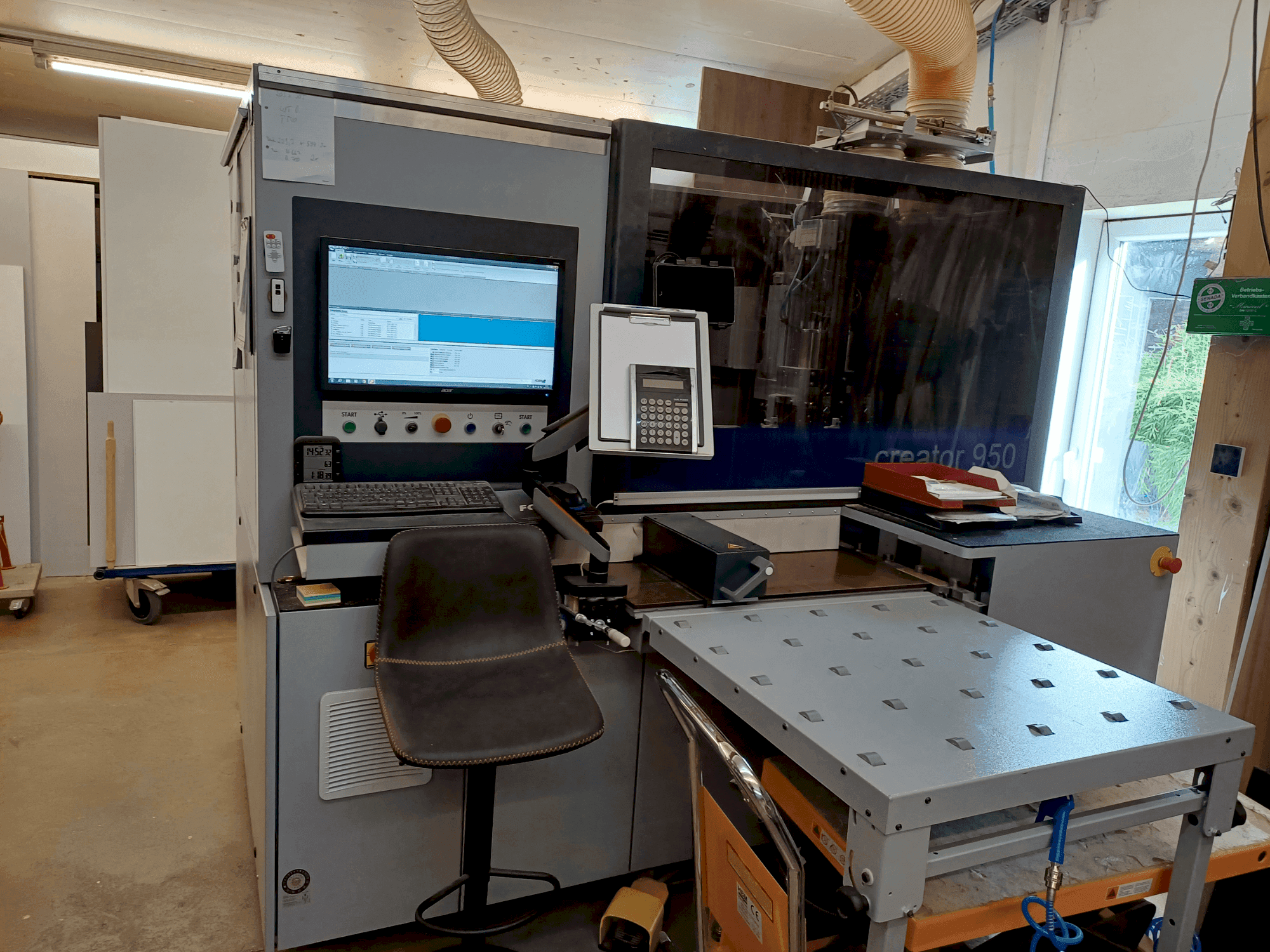

This CNC Wood Machining Centre was manufactured in 2019. The FORMAT4 CNC CREATOR 950 features a robust frame with electro-welded shaped tubes and steel ribbing for enhanced stability. It boasts a 12 KW milling spindle, ceramic bearings, and a versatile drill head with 17 spindles. The support table is crafted from phenolic resin, optimizing large workpiece handling. Consider the opportunity to buy this FORMAT4 CNC CREATOR 950 CNC Wood Machining Centre. Contact us for more information about this machine.
Overview
- brand: FORMAT4
- year: 2019
- MODEL: CNC CREATOR 950
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - FORMAT4 CNC CREATOR 950
Movement
- X-axis Travel: 1475 mm
- Y-axis Travel: 1550 mm
- Z-axis Travel: 225 mm
Technical Specification
- Spindle Power: 12 kW
- Spindle Speed: 24000 RPM
Additional Information
Additional equipment
- Electric creator 950 Advanced 3x400 V 50Hz / 60Hz.
- 4-fold linear changer for milling tools and units. Max tool diameter: 120 mm, Max tool length: 100 mm.
- Folding roller table (front + rear) for processing large workpieces.
- Second stop cylinder for workpieces larger than X: 1400 mm for easier handling of larger workpieces.
Machine Benefits
Technical Machine Benefits
- Cnc throughfeed center with clamp drive in x-direction and fixed portal design in y-direction.
- Machine frame made of thick-walled, electro-welded shaped tubes with steel ribbing for high stability.
- Working field: x: 3500 mm y: 950 mm z: 80 mm
- Ceramic bearing with automatic height-adjustable suction hood
- Drill head dh 17 6h 1s: 11 vertical spindles, 6 horizontal spindles, 1 grooving saw in x direction
- Support table made of phenolic resin with a support of x: 1200 mm, y: 950 mm (front + rear).
- Short changeover times with sufficient space for tools.
- Simplified handling of larger workpieces.
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
