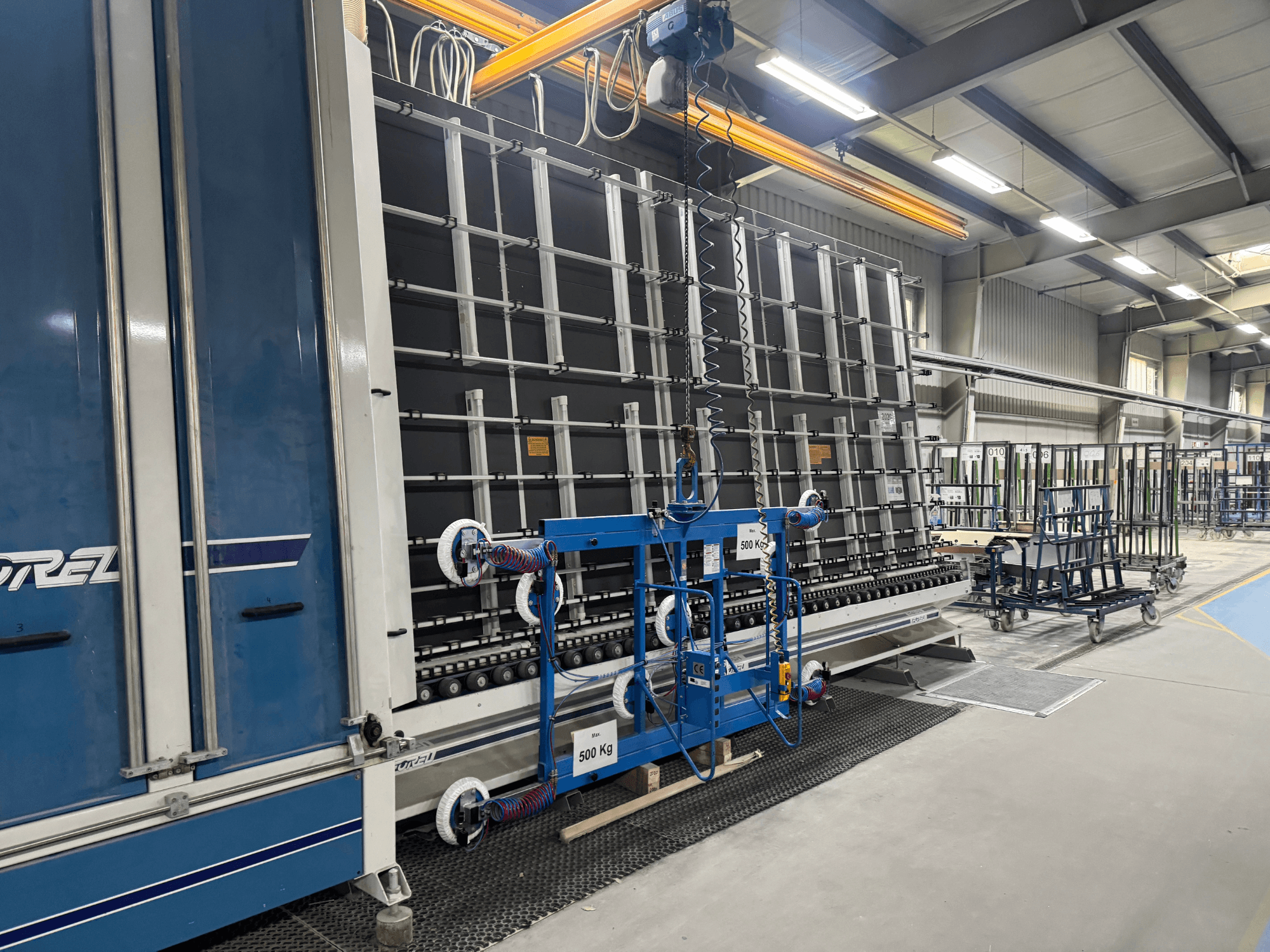

FOREL - VW2800AODE-OTH-FOR-2014-00001

Additional information

• Electrical:

• Standards: CEI EN 60204-1

• Voltage and Frequency: 400 V, 50/60 Hz, 3P+N+PE

• Insulation Voltage: 1000 V; Auxiliary Circuits: 24 V AC and 24 V DC

• Voltage Limits: 400 V ± 10%; Frequency: 50/60 Hz ± 1%

• Temperature Range: +5°C to +40°C

• Humidity: <80%

• Altitude: <1000 m above sea level

• Rated Current: Motor-driven devices 34 A, Heating 20 A

• Protection Class: IP 55

• Power: Total Installed 35 kW

• Operating conditions: Continuous operation

• Grounding Type: TT

• Minimum Cable Cross-section: 16 mm²

• Compressed Air Consumers: Quick coupling ø 1/4", 6 bar; Compressed air consumption 50 l/min (peak)

• Water Network: Connection sleeve N 1 Rp ½", core ø 17, 2.5 bar; Drains: Connection sleeve N 1 Rp 1"14, core ø 40; Consumption depends on glass type and dirt level
