Fladder AUT-1000 VAC

Photo Gallery

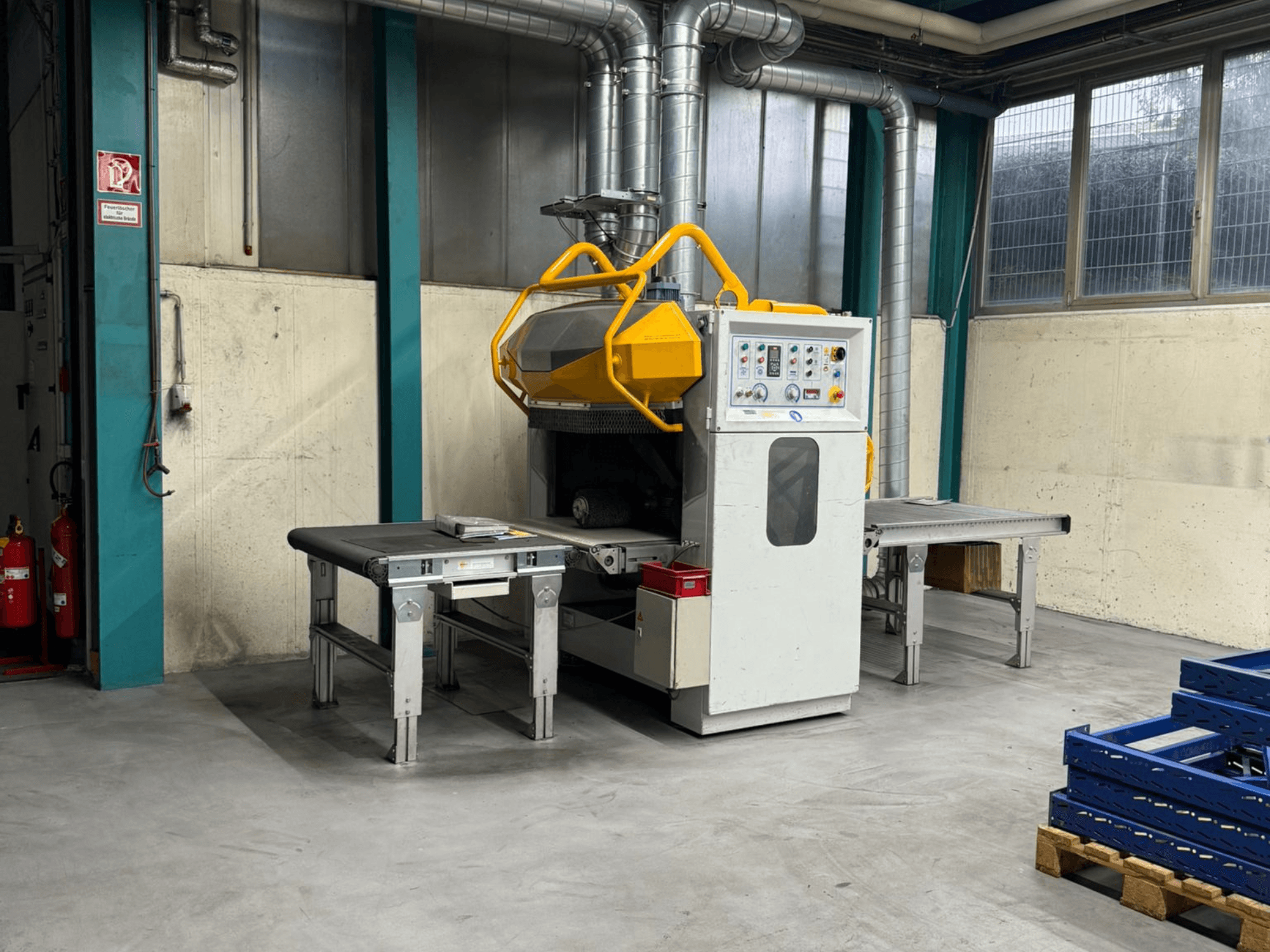

Fladder - AUT-1000 VAC DE-OTH-FLA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Fladder AUT-1000 VAC For Sale | gindumac.com

Show in original language

Deburring machine manufactured in 2007. This Fladder AUT-1000 VAC features a voltage of 3 x 400V and operates at a frequency of 50 Hz with a current of 50 A. If you are looking to get high-quality deburring capabilities, consider the Fladder AUT-1000 VAC machine we have for sale. Contact us for further details.

Overview

brand: Fladder
year: 2007
MODEL: AUT-1000 VAC
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Deburring Machine

Technical Information - Fladder AUT-1000 VAC

Dimensions

Machine Height: 2110 mm
Machine Length: 1710 mm
Machine Weight: 1500 kg
Machine Width: 1800 mm

Additional Information

Voltage: 3 x 400V
Frequency: 50 Hz
Current: 50 A
Working height: 850 mm
Vacuum table width: 1000 mm
Max. workpiece height: 100 mm
Max. workpiece width: 1000 mm
Feed speed: 0.3 – 4 m/min
Standard feed speed: 0.3 – 3.6 m/min
Extraction capacity: 2500 m³/h
Extraction connection: 1x Ø200 mm
Number of spindles: 6
Spindle length: 350 mm
Number of abrasive flaps: 168
Main motor power: 7.5 kW
Rotation motor power: 0.37 kW
Oscillation motor power: 0.55 kW
Feed motor power: 1.5 kW
Vacuum turbine motor power: 7.5 kW
Fuse max.: 63 A
Fuse min.: 50 A
Air pressure: 1/4", 6 atm
Through-feed deburring machine for flat sheet metal parts
Deburring of edges and cut-outs
External vacuum turbine included
Special paint: RAL 7035
Frequency converter: VLT 2807 for external infeed conveyor
External conveyor max. power: 0.75 kW
Motor-driven conveyor included
Conveyor dimensions: L = 1000 mm, W = 1010 mm
Roller conveyor at workpiece outlet
Roller conveyor dimensions: L = 1500 mm, W = 1000 mm
6 abrasive cylinders
Abrasive cylinder length: 350 mm
The extraction cyclone is present, but it is rusted. It was still used like that

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
