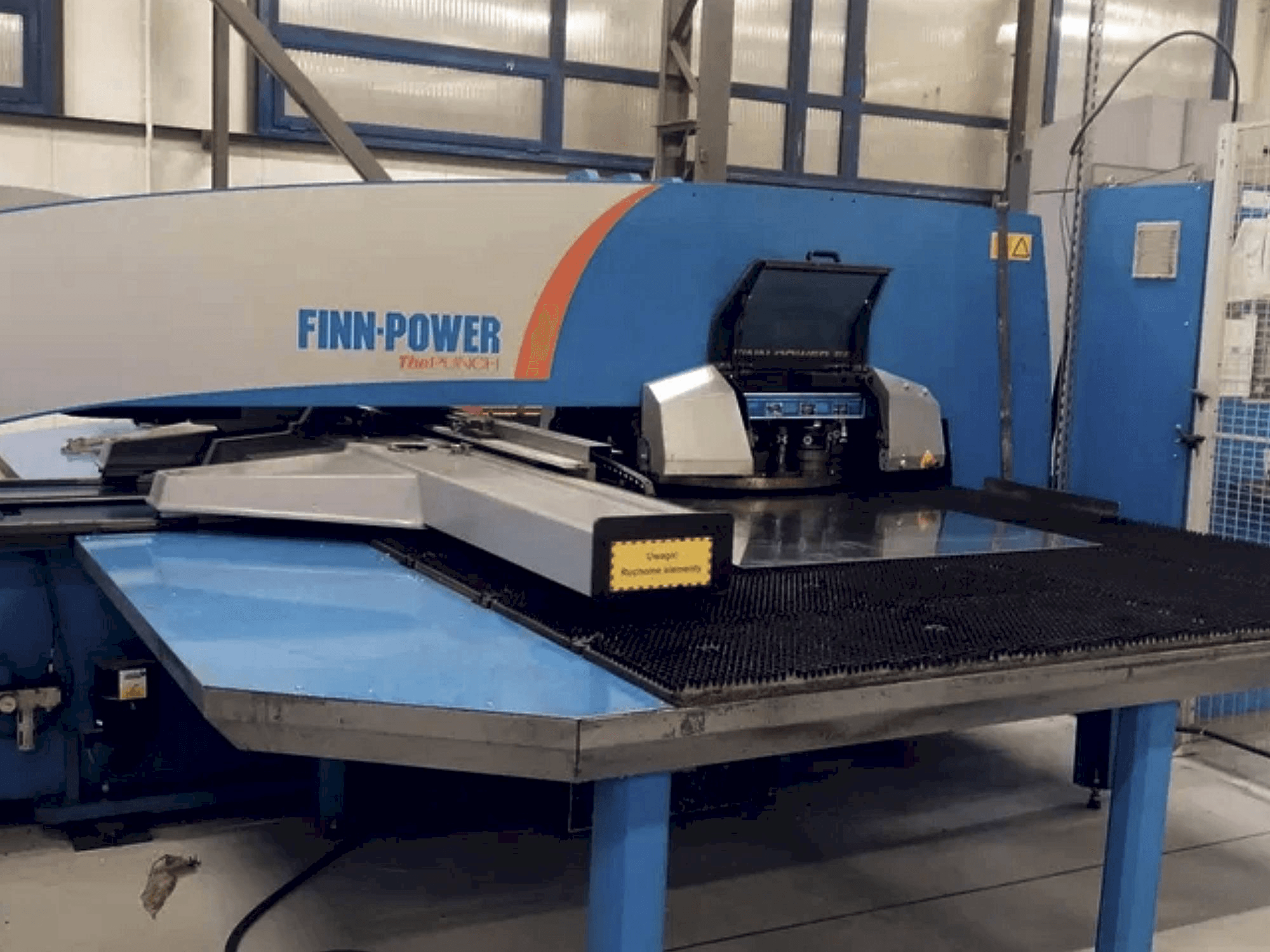

This Finn-Power E5x Servo-electric Punching Machine was made in 2010. It is operated with a control unit of the same brand. It has been on for 18069 hours. This machine can work with a punching force of 230 kN.
Overview
- brand: Finn-Power
- year: 2010
- MODEL: E5x
- production hours: 18069
- application type: Punching
- Location: Poland
- machine type: Punching Machine
- availability: Sold
- control unit brand: Finn-Power
- GINDUMAC ID: PL-PUN-FIN-2010-00001
Technical Information
General Data
- Measurements width: 6030 mm
- Measurements depth: 7640 mm
- Measurements height: 2500 mm
- Machine weight: 10500 kg
Control Unit
- Brand: Finn-Power
Main drive
- Punching force: 230 kN
Media
- Main electronic connection: 3x400V / 50Hz
- Power consumption: 25kA
Additional equipment
- - Third (3rd) clamp
- - 5 indexing tools (size: 2xC, 2xB, 1xD)
- - Punching scrap removal directly to the box next to the machine
- - Foot switch for sheet clamp closing
- - Sheet distortion sensors
- - Automatic individual clamp move
- - Automatic closing clamps clamping
- - 1 station for Multitool 24-8
Additional Information
- Material thickness: 8 mm
- Technical Machine Benefits:
- - Sheet size x x y, max. : 2530 mm x 1270 mm ,sheet size x x y, min. : 300 mm x 100 mm ,sheet weight max. : 200 kg
- - X traverse length: 2584 mm, x traverse axis speed, max. : 90 m/min
- - Y traverse, length: 1317 mm, y traverse axis speed, max. : 60 m/min
- - Sheet positioning speed 108 m/min
- - Marking speed: 1800 1/min
- - Nibbling speed (1 mm): 700 1/min
- - Tool rotation 133 rpm
- - Punching speed 700 hits/min
- - Punch stroke: servo electric
- - Stroke depth: numerically adjustable, stroke length: programmable
- Qualitative Machine Benefits:
- - Ram speed: programmable
- - Punch diameter max. : 89 mm
- - Turret rotation 24 r/min
- - Tools type: thick turret
- - Tool change time: 1-3 sec
- - Machine in good condition.
Machine history
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
