Finn-Power - E 5 LuiEE-PUN-FIN-2005-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- FinnPower E 5 LUi punching machine

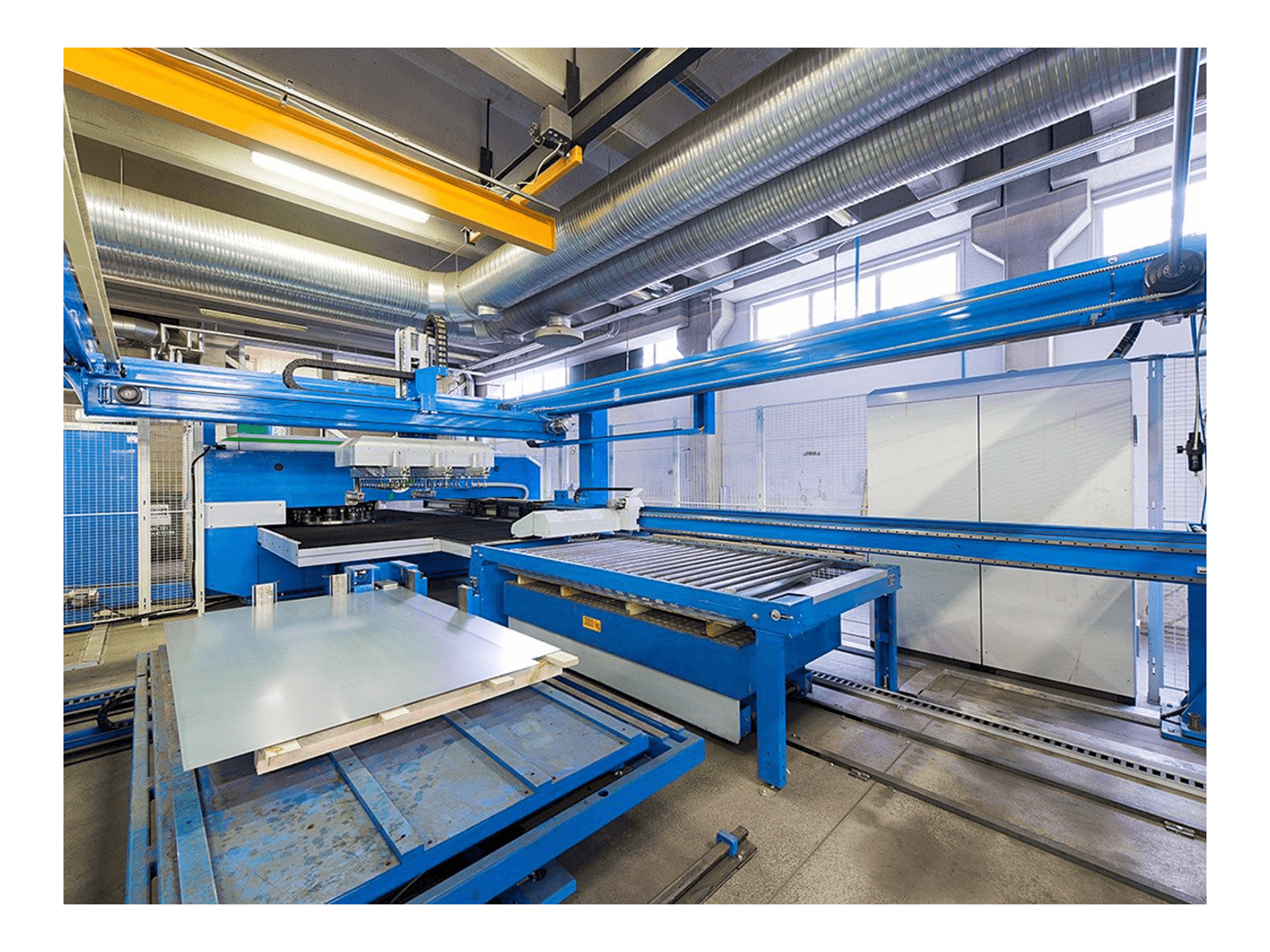

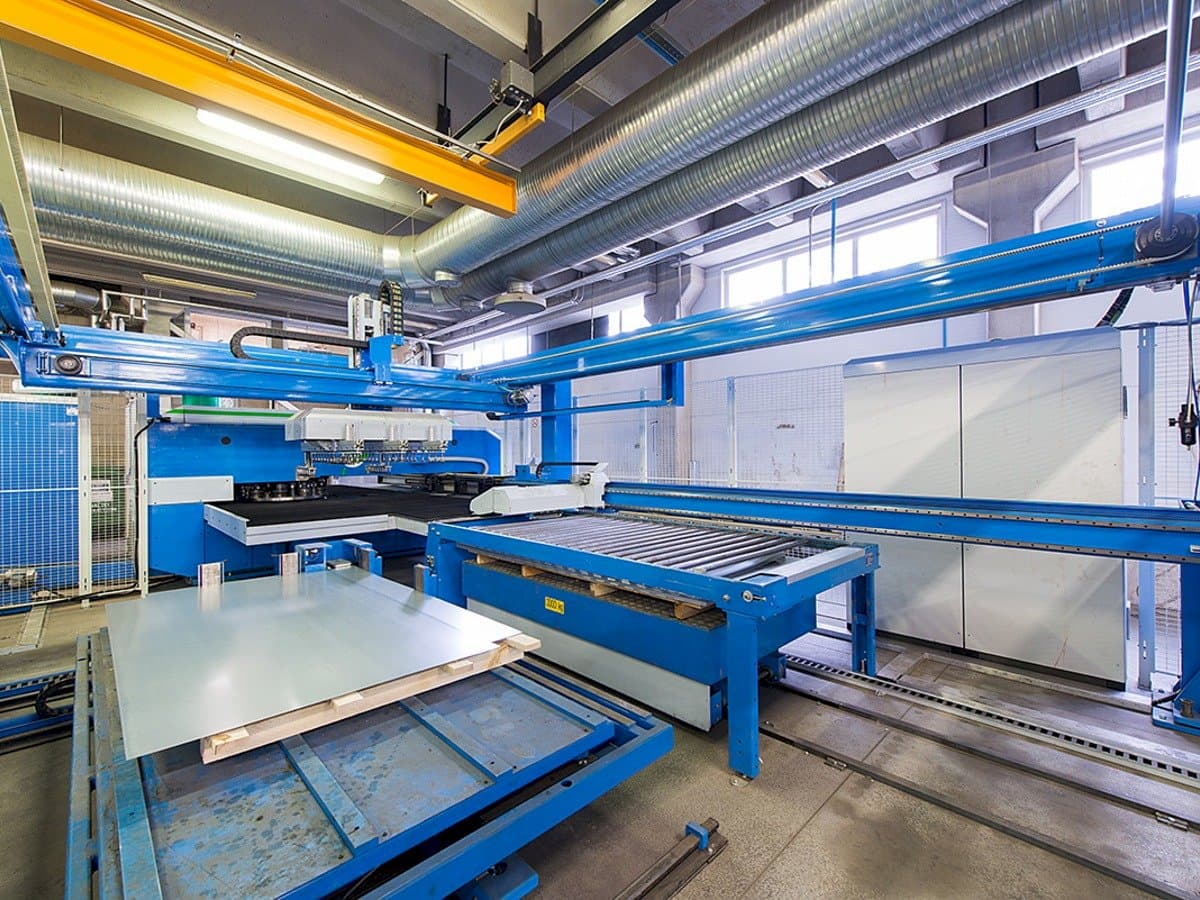

This Finn-Power E 5 LUi punching machine was manufactured in 2005 in Finland. It has a total of 21713 working hours. It operates through a Siemens Sinumerik 840D control unit. The machine has a punching force of 200 kN. The machine is good working condition.
Overview
- brand: Finn-Power
- year: 2005
- MODEL: E 5 Lui
- production hours: 21713
- application type: Punching
- Location: Estonia
- machine type: CNC Punch Press
- control unit brand: SIEMENS
Technical Information - Finn-Power E 5 Lui
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- X-axis Travel: 2584 mm
- Y-axis Travel: 1317 mm
Technical Specification
- Punching Force: 200 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Good working condition
- Punching speed, max. Cutting with scissors (1... 3 mm) - 480 min-1 25 mm between the holes — 310 min–1 250 mm between the holes — 140 min–1
- Punching accuracy: hole center deviation (x/y axis), max. - 0. 1 mm deviation of the distance between the centers of the holes (x/y axes), max. - ±0. 05 mm angular deviation (cnc index tool), max. — ±0,1°
Technical Machine Benefits
- Punching — electric servo motor
- The length of the stroke of the piston when punching — with automatic automation
- The depth of the stroke during molding — programmable in increments of 0. 001 mm
- Forming stroke length-programmable in 0. 001 mm increments
- Tool revolver: the number of stations in the revolver — 20 pcs.
- Tool — thick turret punching diameter-max. 89 mm the speed of the gun is 30 rad/min. The tool change time is 1-3 seconds.
- The index tool: number of index stations, max. Standard — 2 pcs. (max. 10 pcs. ) punching diameter, max. - 89 mm tool rotation speed, max. — 58 rad/min.
- Forming cylinder: top forming force-200 kn the height of the die stroke during forming is programmable with increments of 0. 001 mm (max. 12 mm)
- Sheet clamps: pneumatic clamps — 3 pcs. Sheet size, max. (x/y) - 2530/1270 mm
- Axis speed (x-axis), max. - 80 m / min, axis speed (y-axis), max. - 60 m / min
Machine History
Material thickness
0. 5 - 8 mm
Material type
Steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
