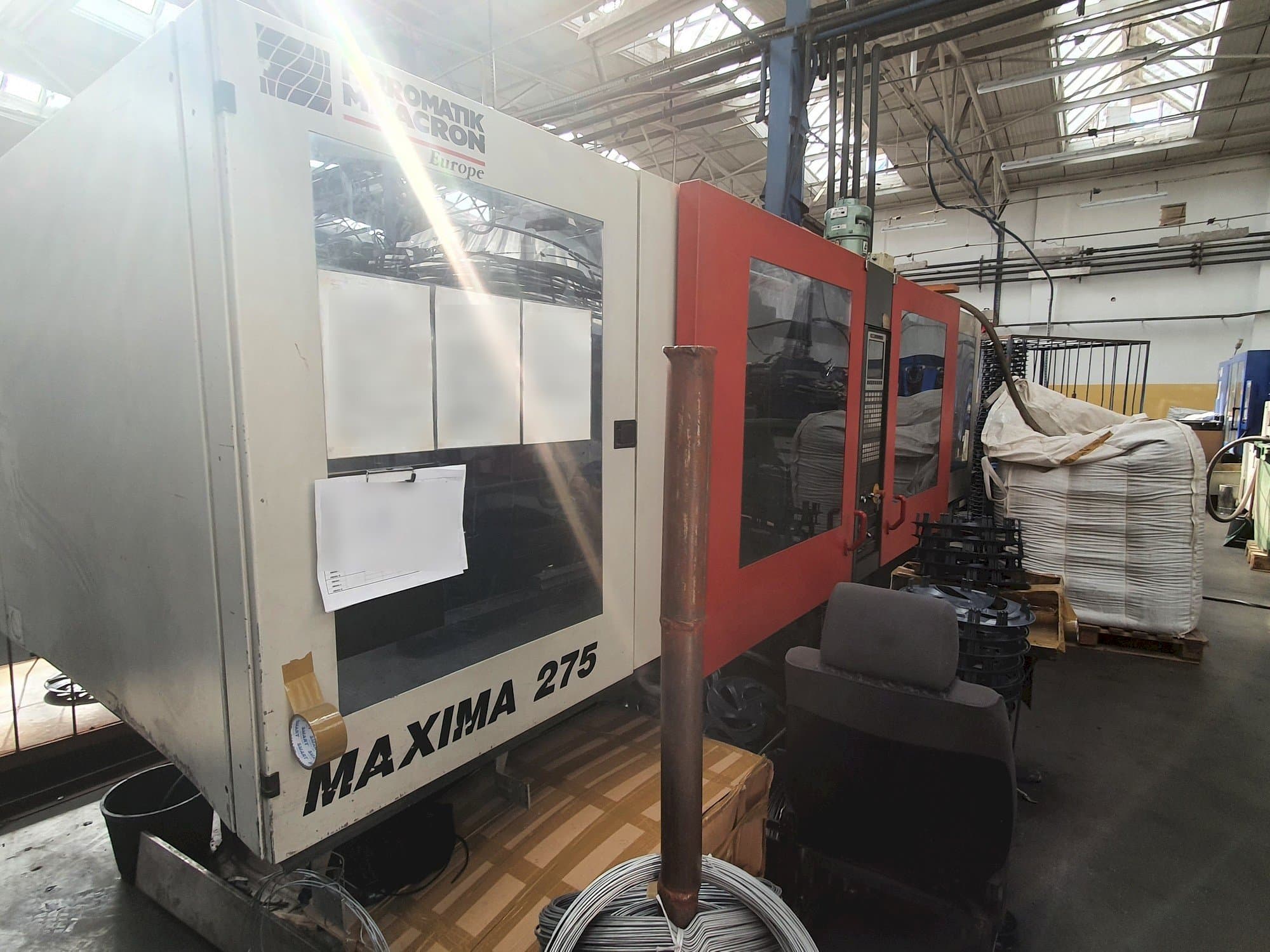

Front view of FERROMATIK MILACRON MV 275 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK MAXIMA MV 275

Photo Gallery

FERROMATIK - MAXIMA MV 275PL-INJ-FER-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
FERROMATIK MILACRON MAXIMA MV 275 Injection Moulding Machine

Show in original language

This FERROMATIK MAXIMA MV 275 Injection Moulding Machine was manufactured in the year 2003. This machine can work with a clamping force of 2750 kN, and an injection pressure of 1942 bar. It is in very good working conditions, ready for tests, and full documentation available.

Overview

brand: FERROMATIK
year: 2003
MODEL: MAXIMA MV 275
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK MAXIMA MV 275

General Data

Measurements width: 6110 mm
Measurements depth: 2150 mm
Measurements height: 2470 mm
Machine weight: 13000 kg

Injection Unit

Injection pressure: 1942 bar

Clamping unit

Clamping force: 2750 kN
Mould height min: 300 mm
Mould height max: 1200 mm
Size of mold platens: 982 x 941 mm

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Column spacing: 630 x 630 mm
- - Installed heating power: 23,1 kw
- - Installed power motors: 45 kw
- - Injection volume: 792 cm3
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for tests
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
