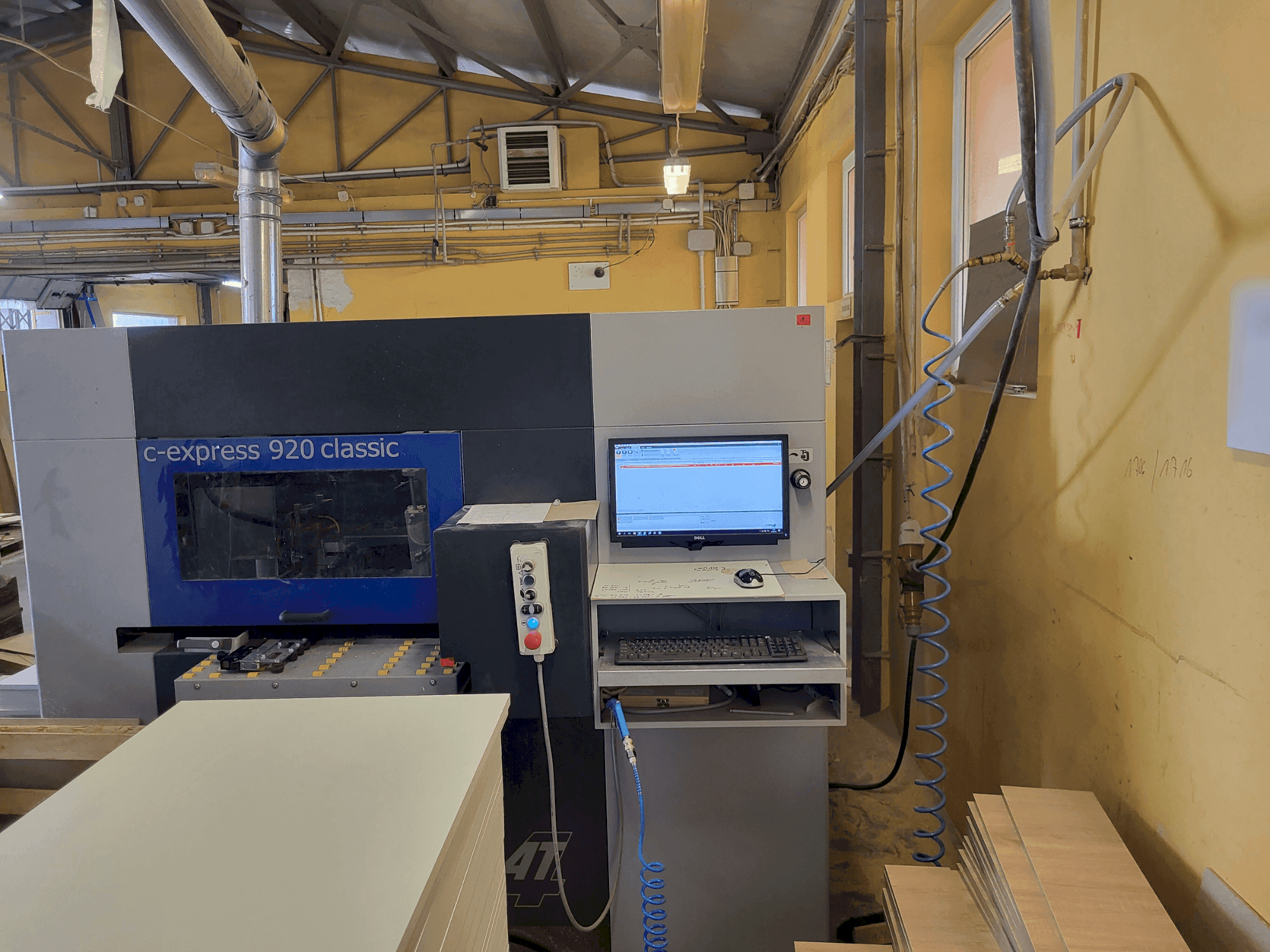

➤ Used FELDER FORMAT 4 C-Express Classic | Woodworking

Show in original language

This woodworking machine was manufactured in 2019. It features a drilling head DH15 6H1S with 9 vertical and 6 horizontal positions, and a slot cutter in X direction. The machine supports maximum element dimensions of 3000x920x50 mm and operates with a maximum spindle speed of 24000 rpm. It includes a 3.3 kW electrospindle and manual tool changes. Ideal for handling large woodworking projects with its additional vertical clamping tool and rear unloading feature. Contact us for more information.

Overview

brand: FELDER
year: 2019
MODEL: FORMAT 4 C-Express Classic
application type: CNC Wood Machining
Location: Poland
machine type: CNC Router
availability: Sold

Technical Information - FELDER FORMAT 4 C-Express Classic

General Data

Measurements width: 1500 MM
Measurements depth: 2100 MM
Measurements height: 1950 MM

Main drive

Spindle speed range: 24,000 1/MIN
Spindle motor power: 3.3 KW

Workpiece

Workpiece x: 280 - 3000 mm
Workpiece y: 180 - 920 mm
Workpiece z: 10 - 50 mm

Additional equipment

- Element Unloading: Rear unloading of processed elements
- Additional vertical clamping tool for blocking large elements
- Roller Supports

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drilling head: dh15 6h1s, 9 vertical positions, 6 positions
- - Drilling spindle: 1 slot cutter in x direction
- - Simple operation with graphical user interface
- - Machine software license
- - Manual er32 collet
Qualitative Machine Benefits:
- - Tool changes are done manually with the provided service tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
