FANUC Robodrill D21MIB 5ADV Plus

Photo Gallery

FANUC - Robodrill D21MIB 5ADV PlusDE-MIL-FAN-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

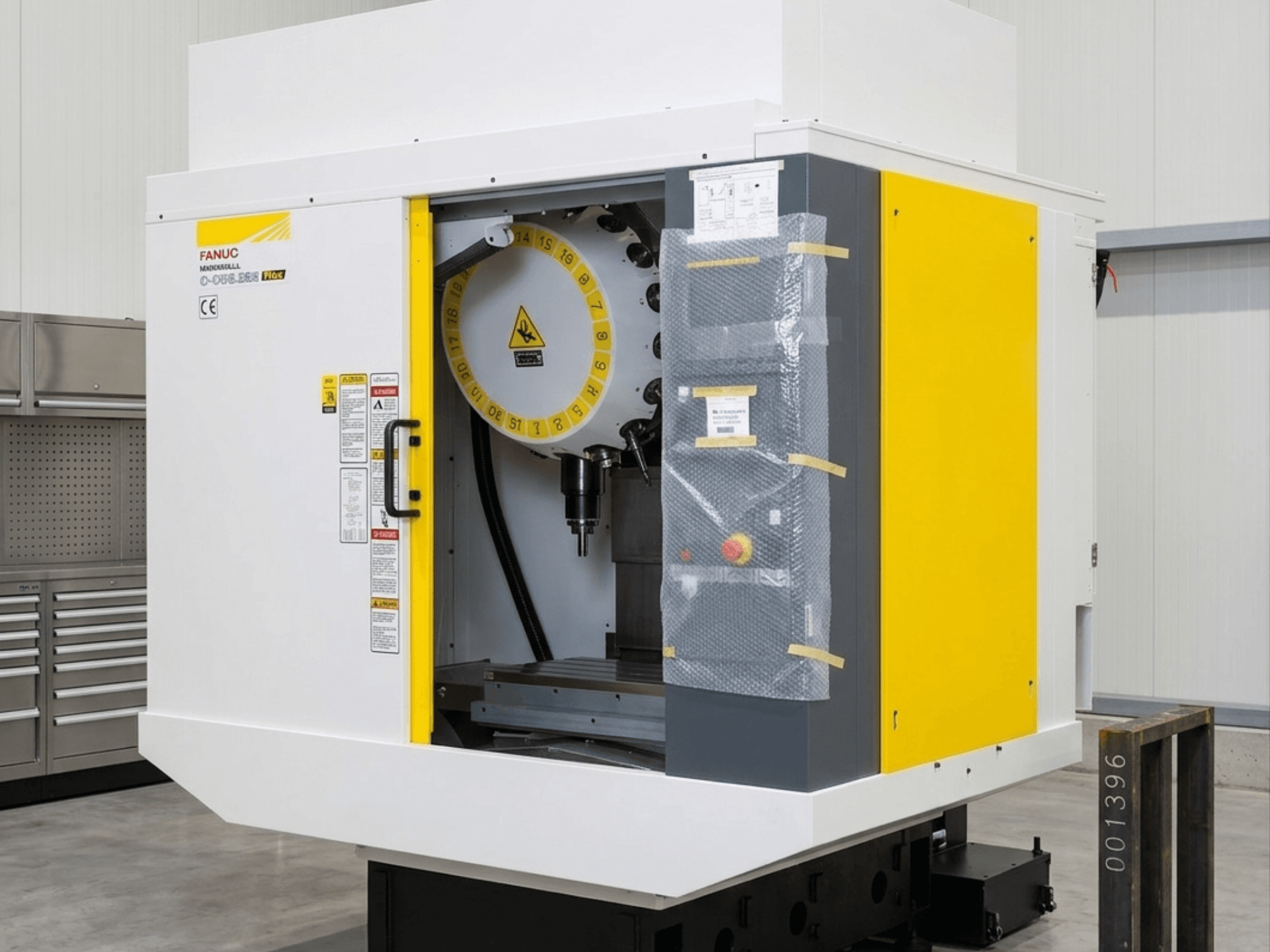

➤ Used FANUC Robodrill D21MIB 5ADV Plus | Machining Center

Show in original language

This 3-axis FANUC Robodrill D21MIB 5ADV Plus was manufactured in 2023. It features a high-torque spindle capable of 10,000 rpm and a robust automatic oil lubrication system. The machine includes a center-through coolant system and a servo turret for enhanced efficiency. If you are looking to get high-quality machining capabilities, consider the FANUC Robodrill D21MIB 5ADV Plus vertical machining centre we have for sale. Contact us for further details.

Overview

brand: FANUC
year: 2023
MODEL: Robodrill D21MIB 5ADV Plus
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill D21MIB 5ADV Plus

Control Unit

Control Brand: FANUC
Control Model: 31i-B5

Dimensions

Machine Weight: 2250 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 400 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Mechanical unit: D21MiB5
Spindle: BIG-10000-MAS-CTC
Spindle motor: high torque CTC
Center-through coolant system (CTC)
Air blow center-through
Flood coolant piping
CTC coolant piping
Automatic oil lubrication system
Servo turret: BT-T21-MAS
Compact flash card adapter
Operator panel: English
Internal LED lighting
Designation of control axes
Designation of two additional axes
Parameter setting: 4th axis possible
Parameter setting: 5th axis possible
High column: 300 mm
Spindle head full cover
Z-axis single plate cover
Splash protection enclosure
Air-through CTC kit
Transformer: 20 kVA IP23
Base machine only: approx. 2250 kg
Condition: New machine
Warranty: 1 year

Additional equipment

Robot interface 2 without hub
Robot connection function
Additional I/O: DI/DO 48/32

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
