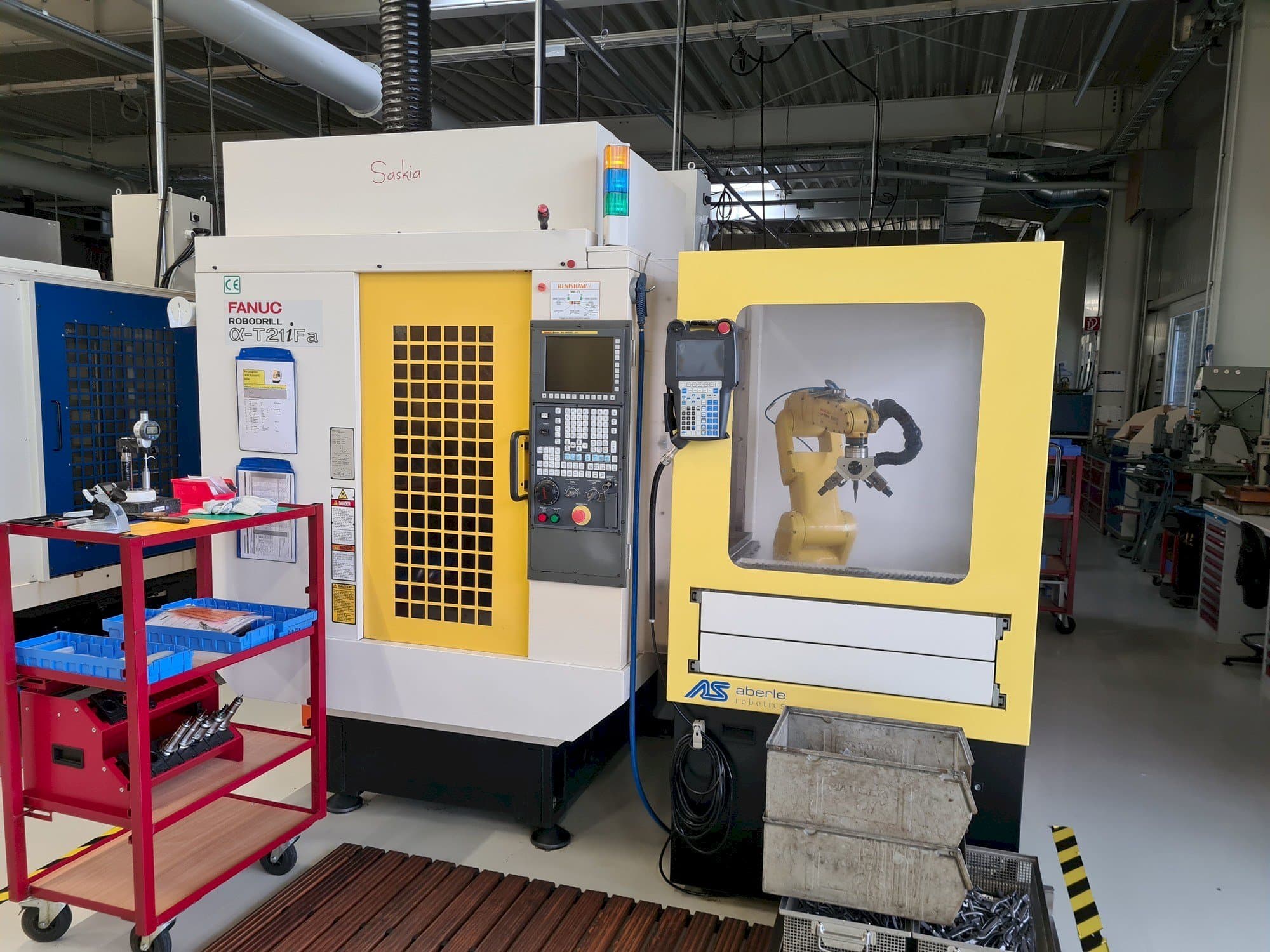

Front view of FANUC Robodrill ALPHA T21iFA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill ALPHA T21iFA

Photo Gallery

FANUC - Robodrill ALPHA T21iFADE-MIL-FAN-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Fanuc Robodrill ALPHA T21iFA Vertical Machining center

Show in original language

This Fanuc Robodrill ALPHA T21iFA Vertical Machining Center was manufactured in the year 2011 and has 33661 hours. It is equipped with a Fanuc Series 31i-MODEL A5 control unit and has 4 axis. The machine has a spindle speed of 10000 rpm and comes with robot cell and robot.

Overview

brand: FANUC
year: 2011
MODEL: Robodrill ALPHA T21iFA
production hours: 33661
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill ALPHA T21iFA

Control Unit

Control Brand: FANUC
Control Model: Series 31i-MODEL A5

Movement

Number of Axes: 4
X-axis Travel: 500 mm
Y-axis Travel: 400 mm
Z-axis Travel: 330 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Memory 512 kb / 1280 m, 1000 registerable programmes
48 additional workpiece, coordinate systems (g54. 1), multi-step skip (g31 p1-4) al contour control 1(30 blocks preview) helical interpolation
Coolant unit 300l with bed flushing
20 bar ikz pump, fanuc own torque motor with an indexing - indexing speed of 0. 28 sec. At 180° - max. Max. Speed 200 rpm. (4th axis) rotary feed-through special 180 ar omp 40 probe
Large coolant tank with pump for external cooling, bed flushing and ikz pump with 20 bar
Filtration takes place via plug-in sieves andmahle slotted filters
The system is not a coolant cleaning system.
Chips fall into trough excl. Conveyor etc.
Splash 1 spraying device splash" rinsing gun, renishaw workpiece measuring system fanuc rotary axis ddr260ib
Permanently installed in 300 | tank flushing gun with its own pump output max. 4bar (at 20l/min) tool breakage detection tool breakage detection system incl. Accessories tactile, renishaw

Technical Machine Benefits

Machine comes with robot cell and robot
Acceleration in x/ y/ z 1. 5 g, rapid traverse speed 54000 mm/min
Bbt30 big plus tool holder
Machine tool in cast iron construction controlled axes
Axis drives fanuc alpha i. Ac servo motors
Universal clamping table
Interior lighting
Stand elevation 100 mm
Automatic vogel "centralised oil lubrication" nano-interpolation of the servo axes
Thermal compensation (xyz axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
