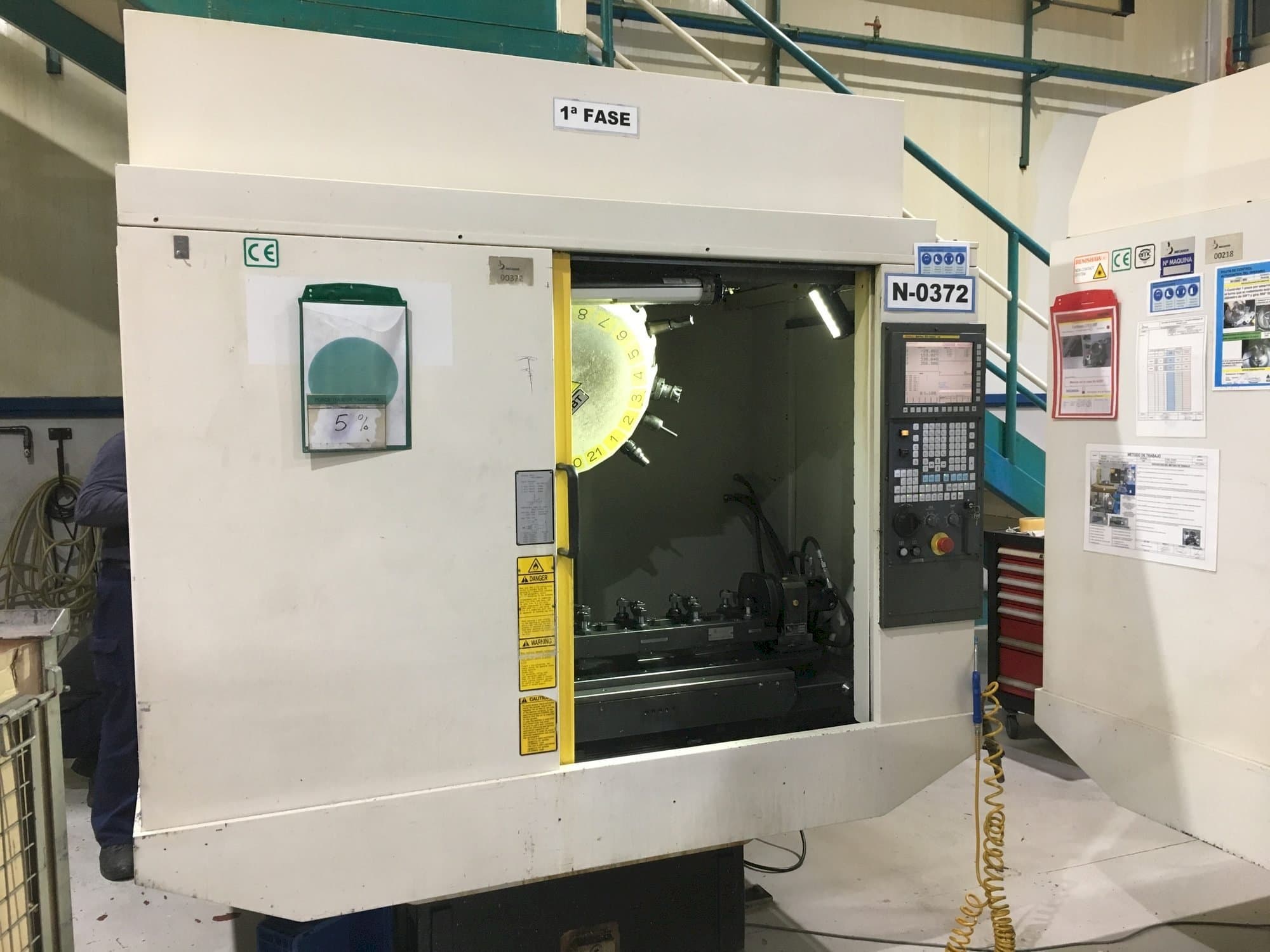

Front view of FANUC Robodrill alfa-T21iEL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill alfa-T21iEL

Photo Gallery

FANUC - Robodrill alfa-T21iELES-MIL-FAN-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Robodrill alfa-T21iEL Vertical Machining Center

Show in original language

This FANUC Robodrill alfa-T21iEL Vertical Machining Center was manufactured in 2007 in Japan. It has a spindle speed range up to 24000 rpm. It is operated through a Fanuc Series 31i-Model A5 control unit. This machine comes with an automatic door opening, and a Roemheld hydraulic power unit Type 8400-244E (5L).

Overview

brand: FANUC
year: 2007
MODEL: Robodrill alfa-T21iEL
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill alfa-T21iEL

General Data

Measurements width: 2115 mm
Measurements depth: 2040 mm
Measurements height: 2600 mm
Machine weight: 2200 kg

Control Unit

Model: Series 31i-Model A5
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 850 mm
Outer width: 410 mm

Tools

Slots in storage: 21
Type of tool holder: BT30

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits

Automatic door opening
400 blocks high speed module (400 blocks advance reading special for contouring)
Column uplift 100mm
Roemheld hydraulic power unit type 8400-244e (5l)
Spirsin steady rest with 4-way hydraulic rotary distributor at 200 bar
4th axis spirsin 81125. F/Ø170-h + steady rest sp125. F-Ø170-h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
