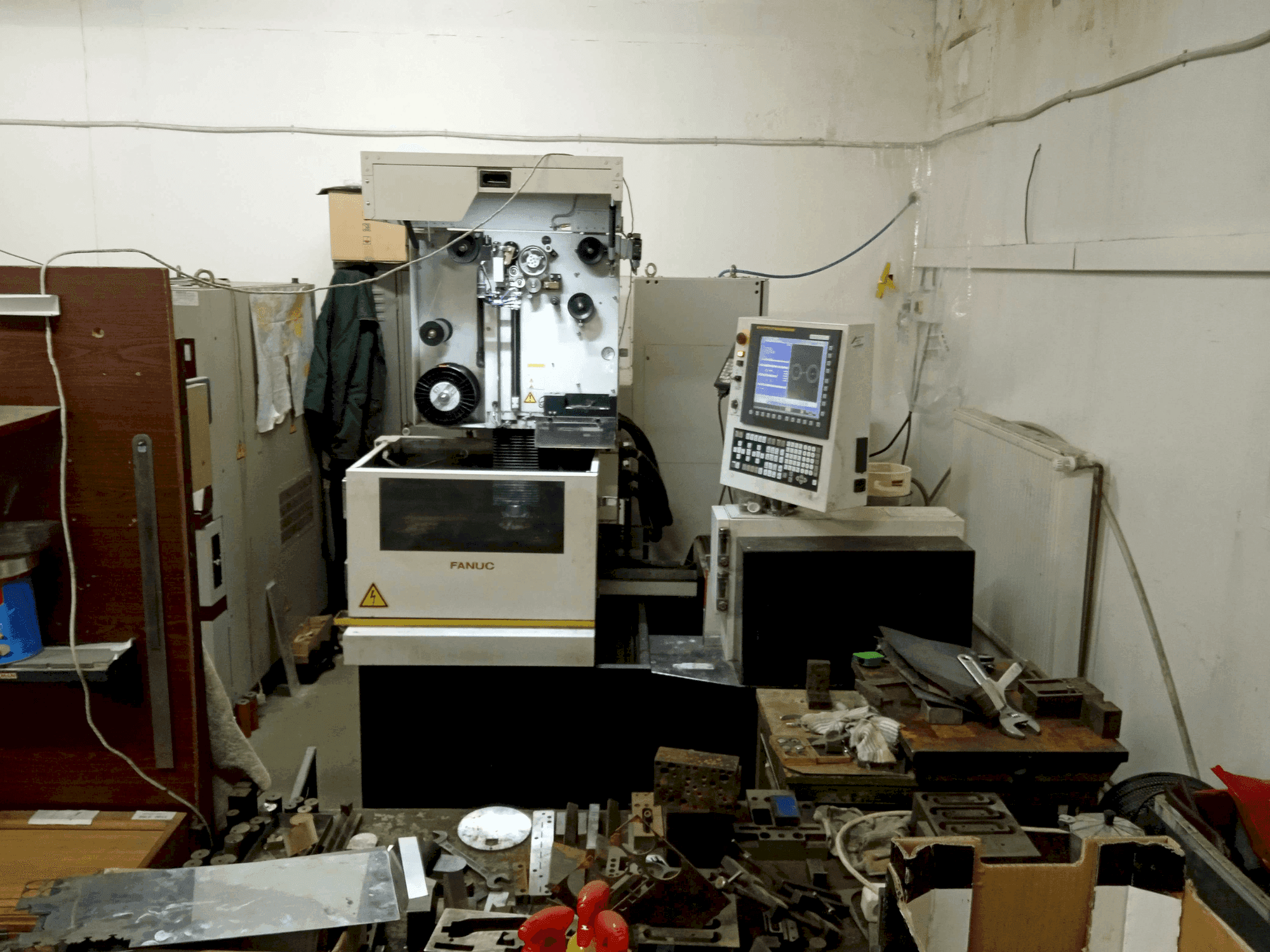

FANUC Robocut Alpha 0iE CNC Wire Cut EDM Machine

Show in original language

This FANUC Robocut Alpha 0iE CNC Wire Cut EDM Machine was manufactured in 2013 and is equipped with a FANUC 31i-WA control. It has 5 axes (X-axis: 370 mm / Y-axis: 270 mm / Z-axis: 255 mm / U-axis: 60 mm / V-axis: 60 mm) and can operate with a maximum workpiece weight of 500 kg. In total it has operated 17,500 hours from which 4,850 are cutting hours.

Overview

brand: FANUC
year: 2013
MODEL: Robocut Alpha 0iE
production hours: 4850
application type: EDM
Location: Czech Republic
machine type: Wire EDM Machine
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robocut Alpha 0iE

Control Unit

Model: 31i-WA
Brand: FANUC

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 370 mm
Y-AXIS Movement: 270 mm
Z-AXIS Movement: 255 mm
U-Axis Movement: 60 mm
V-AXIS Movement: 60 mm

Workpiece

Workpiece x: 700 mm
Workpiece y: 600 mm
Workpiece z: 250 mm
Workpiece weight: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum travel length x-axis: 370 mm
- - Maximum travel length y-axis: 270 mm
- - Maximum travel length z-axis: 255 mm
- - Travel length u-axis ( -): 60 mm
- - Travel length v-axis ( -): 60 mm
- - Minimum thickness of the wire: 0. 1 mm
- - Maximum thickness of the wire: 0. 3 mm
- - Maximum workpiece dimensions: 700 x 600 x 250 mm
- - Max. Workpiece weight: 500 kg

Extra information

- Total hours: 17500 / cutting 4850 // Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
