FANUC - M710 iC 70DE-OTH-FAN-2023-00001

Name: FANUC M710 iC 70
Brand: FANUC
SKU: DE-OTH-FAN-2023-00001
Price: 18189350 INR
Availability: InStock

Rs. 18,189,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used FANUC M710 iC 70 For Sale | gindumac.com

Show in original language

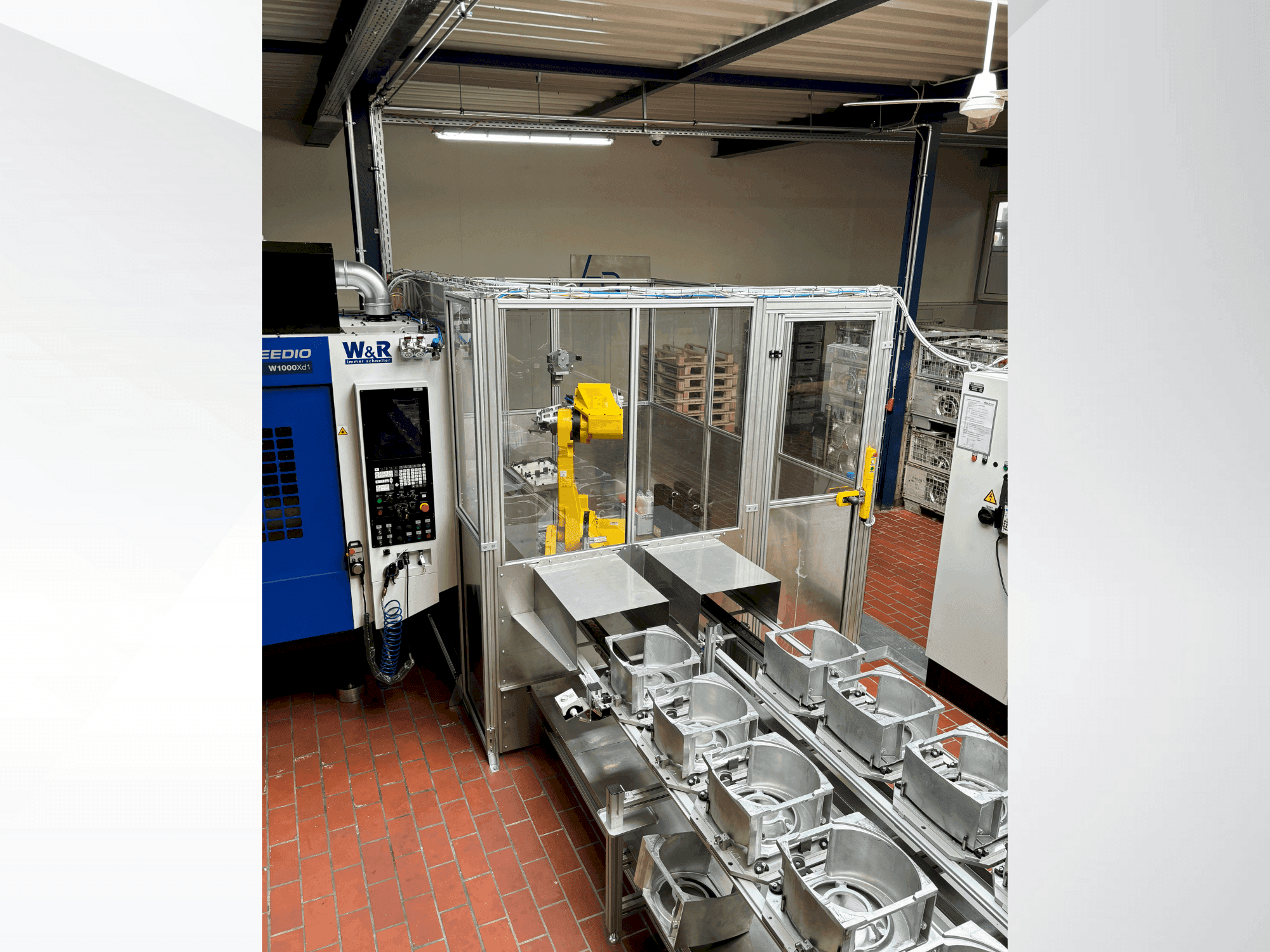

This 6-axis FANUC M710 iC 70 was manufactured in 2023, featuring a comprehensive robot system with a conveyor belt, cleaning basin, and advanced safety and control systems. It includes a 6-axis robot capable of a 30kg payload and 1700mm reach, integrated with a SPEEDIO W1000Xd1 machining center and Brother T200 CNC round table. If you are looking to get high quality automation capabilities consider the FANUC M710 iC 70 machine we have for sale. Contact us for more information.

Overview

brand: FANUC
year: 2023
MODEL: M710 iC 70
application type: Other Automation Equipment
Location: Germany
machine type: Automation System
availability: Immediately

Technical Information - FANUC M710 iC 70

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Gripper & storage system / 1-fold gripper for motor flange u5. 300-334 - aluminum base with part-specific clamping jaws and quick-change system / component intermediate storage - steel construction with part-specific receiving and clamping / pre-cleaning tank (optional) - 120l stainless steel with thermostat heating (4kw)/ safety & control systems safety fencing - wire mesh with safety door and walkway grating / electrical and pneumatic equipment / sps control with program and robot programming / installation and commissioning at customer site
- - Conveyor system/ oval plate chain conveyor - 5000 x 1000mm setup surface, 1100mm height / 15 workpiece pallets (420 x 420mm alu) for motor flange u5. 300-334 / pneumatic lift-center unit with drive / industrial robot / 6-axis robot - 30kg payload, 1700mm reach / robot interface - w&r standard with automations and signal lights / differential pressure part control - 2 sensors for precise positioning
- - Machining center / travel paths: x=1000mm, y=500mm, z=480mm / tool magazine: 21 stations spindle: 16-16000 rpm, bbt 30 cone / coolant system: 15 bar through spindle, 150l tank / electronic handwheel and enclosed hood cnc round table 4-axis cnc round table - rolling bearing drive / performance: 100 rpm max, 280 nm clamping force / capacity: 100kg transport weight (200kg with counterbearing) / weight: 67kg
- - Hydraulic clamping / 210 bar pump system - 27l tank, 80-210 bar pressure range/ electronic monitoring - led display, filters, temperature sensor / plc integration - m-function and manual operation modes / chip removal "twin" system/ dual conveyor system - hinge belt (large chips) + scraper belt (fine chips) / materials: aluminum, die casting, brass, steel filtration: 80 micron rotation filter with automatic cleaning / pumps: 240w filter cleaning, 240w cutting supply, 400w chip flushing
- - /ty with 5-stage control / automatic side door - pneumatic drive with safety components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
