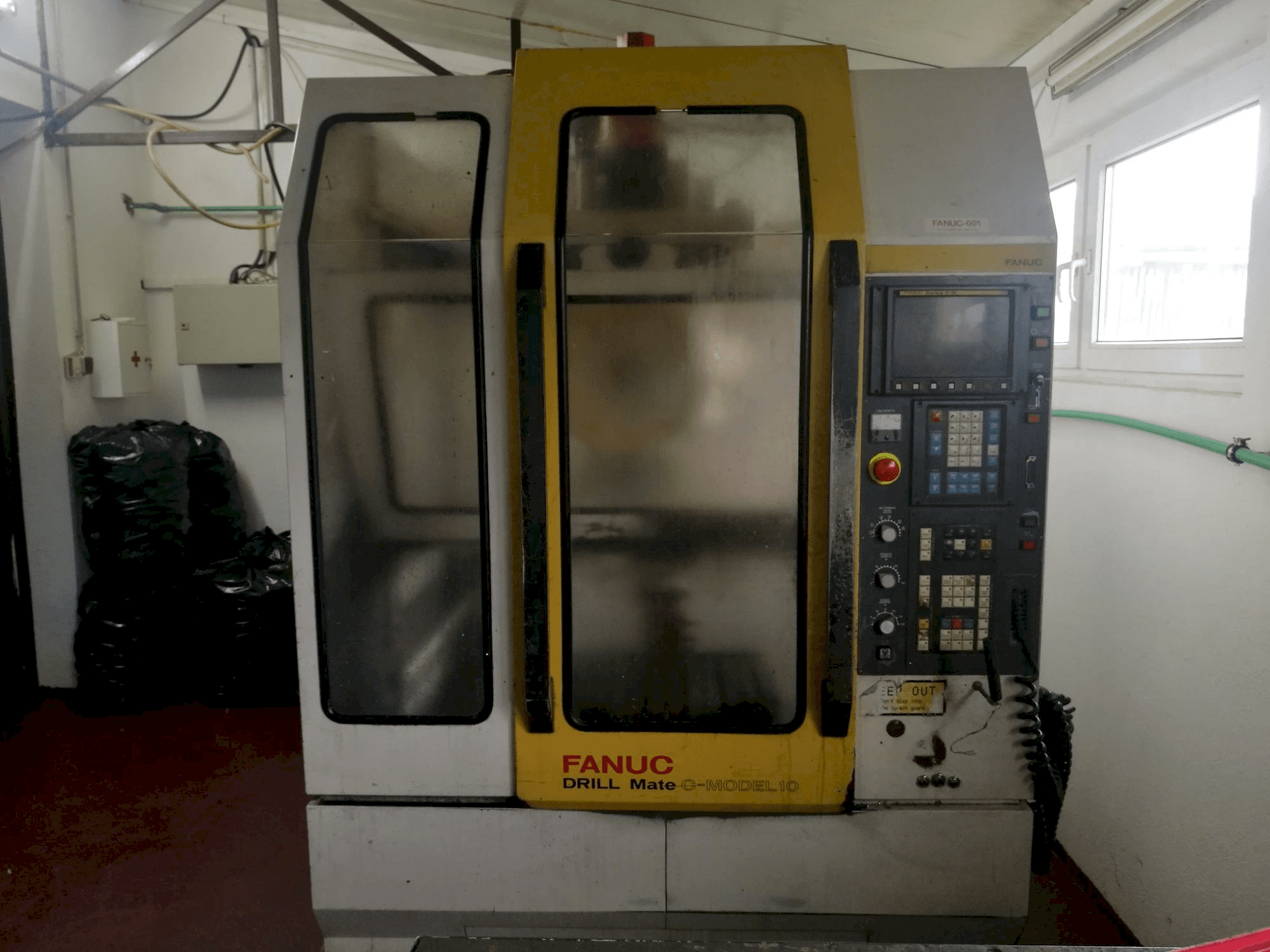

Front view of FANUC DRILL MATE C-MODEL 10 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC DRILL MATE C-MODEL 10

Photo Gallery

FANUC - DRILL MATE C-MODEL 10HR-MIL-FAN-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC DRILL MATE C-MODEL 10 Vertical Machining Center

Show in original language

This FANUC DRILL MATE C-MODEL 10 Vertical Machining Center was made in Japan in 1992. It has been operative for approximately 40000 hours. It is operated through a Fanuc O-M control unit. This machine operates with a spindle speed up to 8000 rpm. It includes 2 pallets 450x300mm, and a power transformer.

Overview

brand: FANUC
year: 1992
MODEL: DRILL MATE C-MODEL 10
production hours: 40000
application type: Milling
Location: Croatia
machine type: Universal Machining Centre
control unit brand: FANUC

Technical Information - FANUC DRILL MATE C-MODEL 10

General Data

Measurements width: 1300 mm
Measurements depth: 2800 mm
Measurements height: 2500 mm
Machine weight: 3500 kg

Control Unit

Model: O-M
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 320 mm

Table

Outer length: 450 mm
Outer width: 300 mm
Number of tslots: 6
Distance between: 75 mm

Tools

Slots in storage: 10
Type of tool holder: SK30

Media

Main electronic connection: 380V 50Hz
Power consumption: 12 kVA

Additional Information

Additional equipment

2 pallets 450x300mm
Power transformer
Hadwheel

Machine Benefits

Technical Machine Benefits

Fast machine for drilling tapping

Machine History

Industries

Machine buliding for agricultural machines

End product

Machine parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
