➤ Used FANUC α-D21MiB5ADV Plus For Sale | gindumac.com

Show in original language

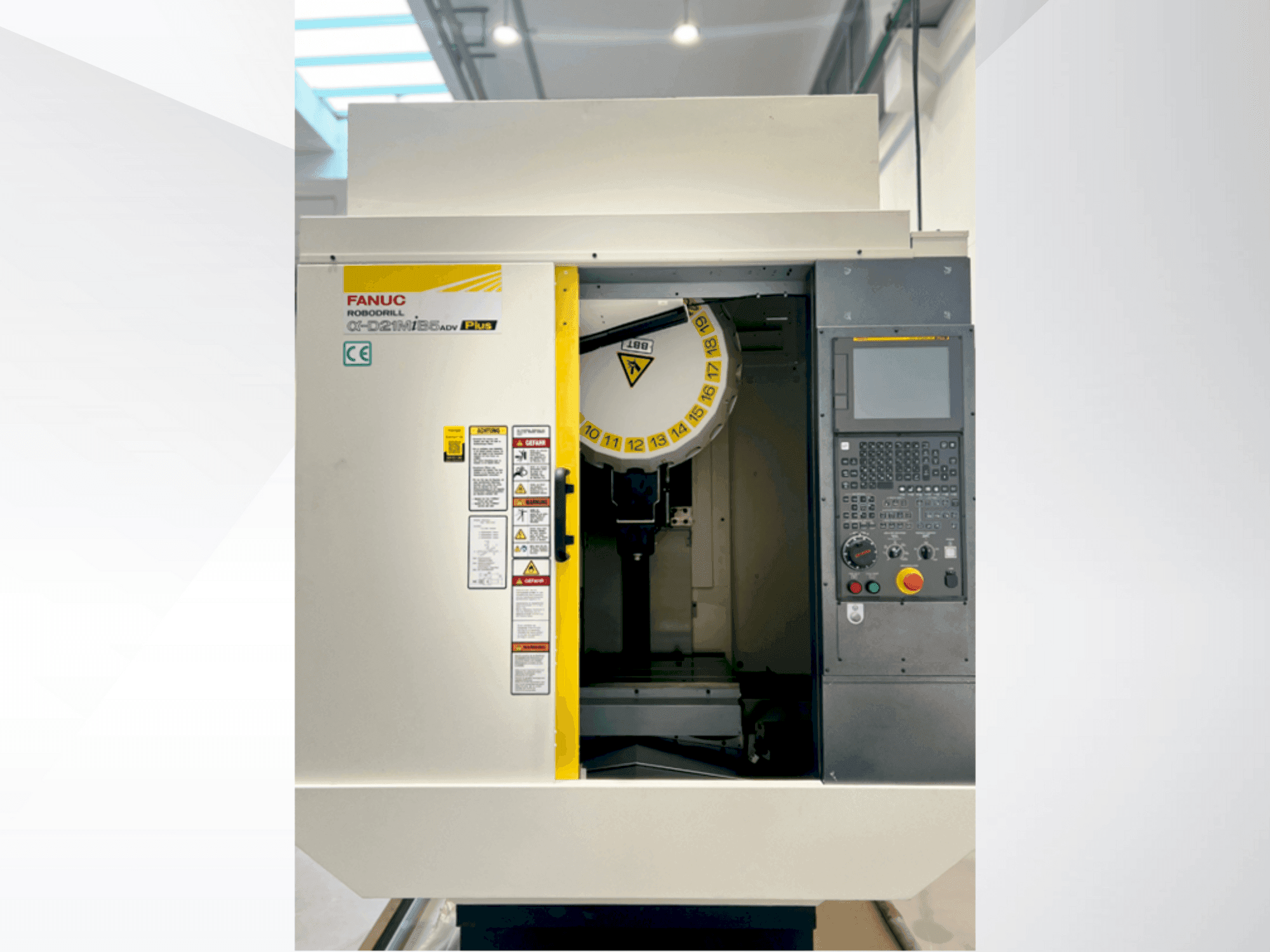

This 3-axis FANUC α-D21MiB5ADV Plus vertical machining center was manufactured in 2024. It features a fast servo tool changer, axis travels of X500, Y400, Z400, optimum acceleration and deceleration control, and a spindle speed of 10,000 rpm. Simple automation and internal cooling preparation enhance its efficiency. Consider the opportunity to buy this FANUC α-D21MiB5ADV Plus vertical machining center. Contact us for more information.

Overview

brand: FANUC
year: 2024
MODEL: α-D21MiB5ADV Plus
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - FANUC α-D21MiB5ADV Plus

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Additional equipment

Internal cooling preparation CT
Column rise 100 mm (intermediate block between machine bed and machine column).

Machine Benefits

Technical Machine Benefits

Extremely fast servo tool changer
Simple automation
Optimum acceleration and deceleration control
Z axis travel 330 mm / roller blind as z-axis cover
Distance from lower edge of spindle to machine table min. 250 mm - max. 580 mm
Machine compartment partially encapsulated (full encapsulation with “full cover” option - surcharge approx. 800 eur net).
Drive of the tool wheel via a gear wheel on the main spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
