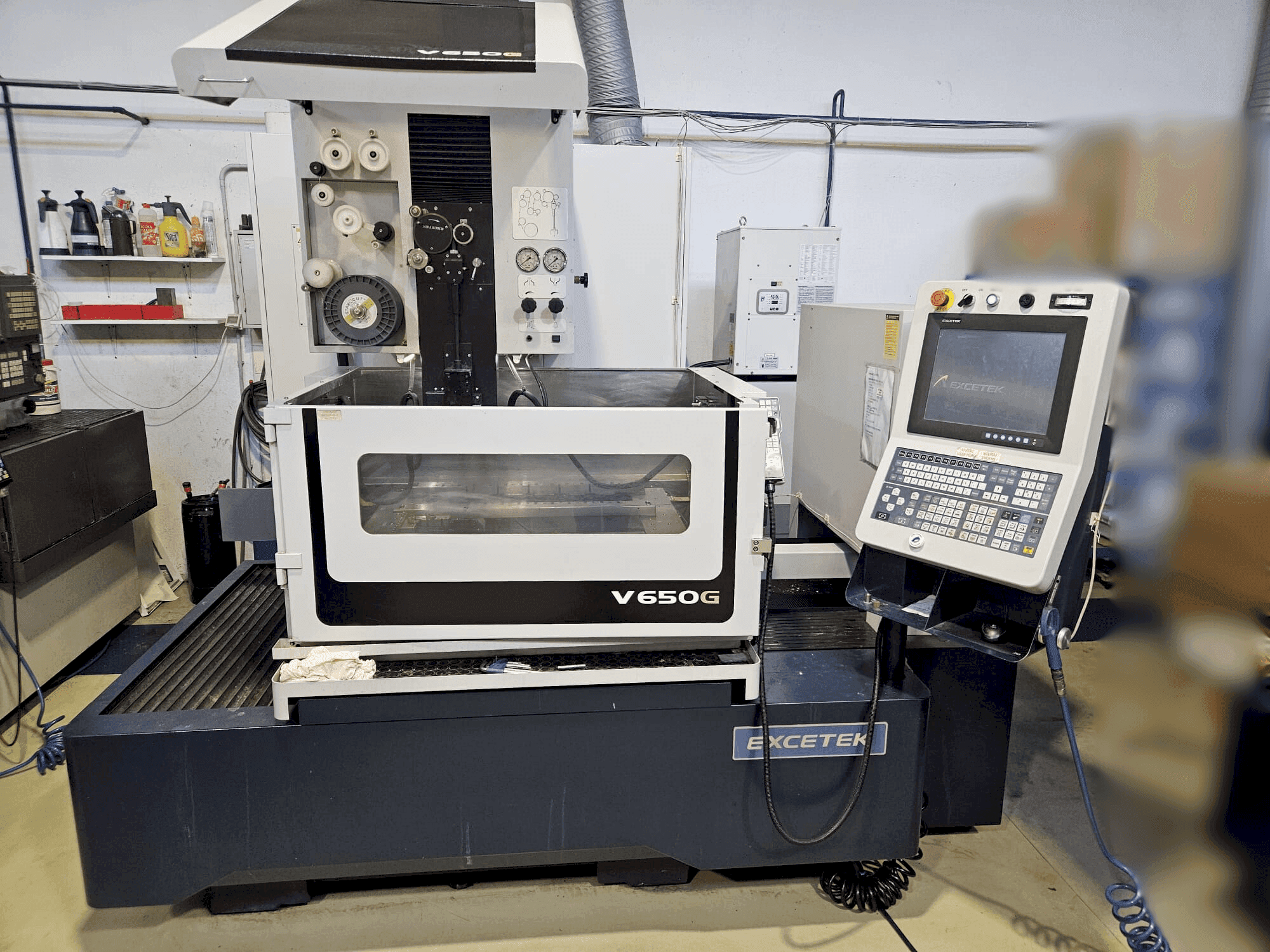

Front view of EXCETEK V650G  machine

EXCETEK - V650GHR-EDM-EXC-2015-00001

Rs. 3,298,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis EXCETEK V650G wire EDM machine was manufactured in 2015. It features a robust 4000 kg frame and can handle workpieces up to 1000 x 700 x 345 mm, weighing up to 800 kg. It supports wire diameters from 0.15 to 0.3 mm, enhancing its versatility. If you are looking to get high-quality EDM capabilities, consider the EXCETEK V650G machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: EXCETEK
  • year: 2015
  • MODEL: V650G
  • application type: EDM
  • Location: Croatia
  • machine type: Wire EDM Machine
  • availability: Immediately

Technical Information - EXCETEK V650G

General Data

  • Measurements width: 2720 MM
  • Measurements depth: 2520 MM
  • Measurements height: 2290 MM
  • Machine weight: 4000 KG

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 650 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 350 mm
  • V-Axis Movement: 160 mm
  • U-Axis Movement: 160 mm

Workpiece

  • Workpiece x: 1000 mm
  • Workpiece y: 700 mm
  • Workpiece z: 345 mm
  • Workpiece weight: 800 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Wire diameter: 0. 15 ~ 0. 3 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
