Euromac MTX 1250

Photo Gallery

Euromac - MTX 1250AE-PUN-EUR-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

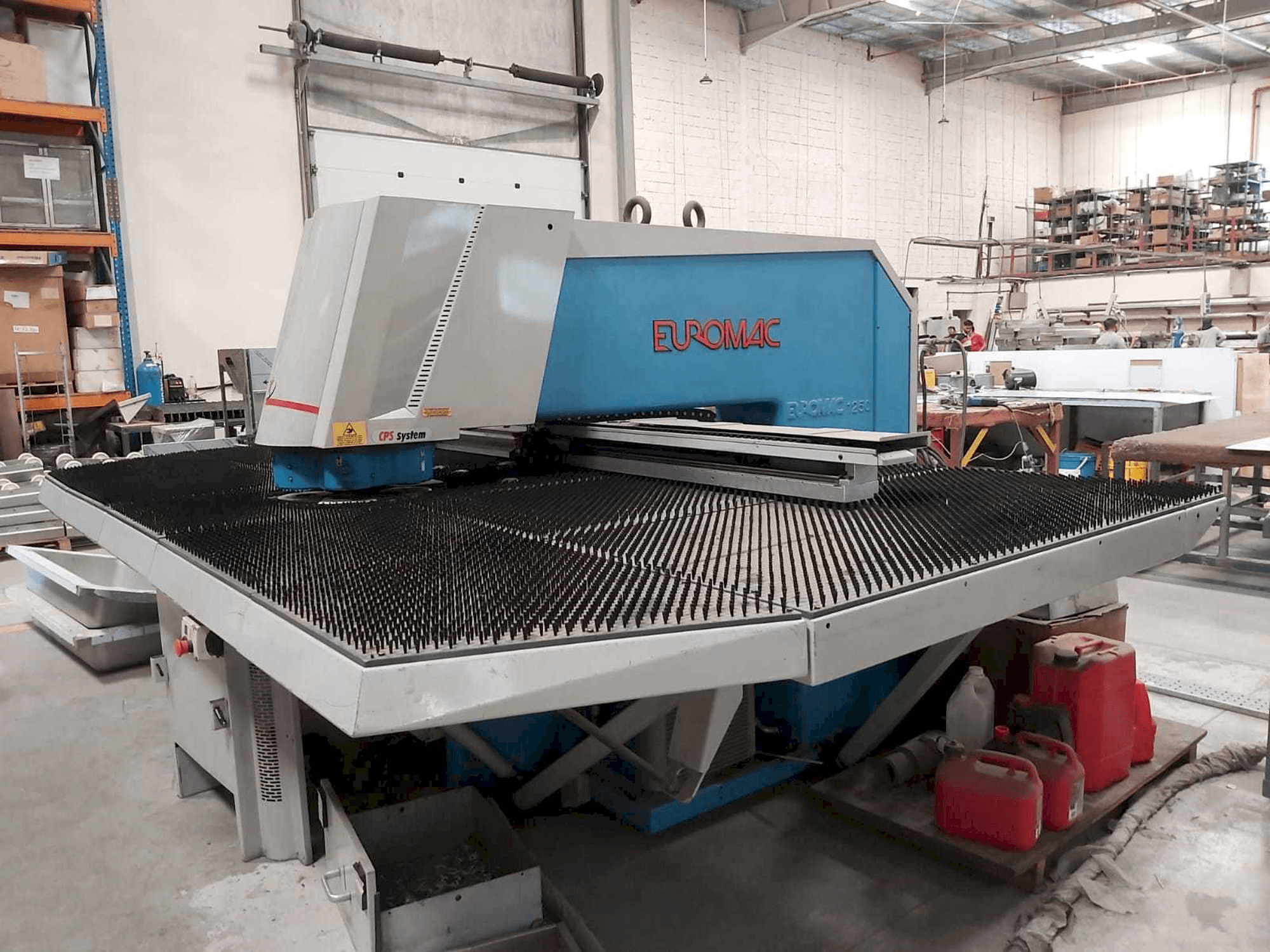

Euromac MTX 1250 Punching machine

Show in original language

This Euromac MTX 1250 Punching machine was made in the year 2007 in Italy. This machine is controlled by a control unit of the same brand. This machine comes with a punching force of 300 kN. Tools set is available for selling optionally

Overview

brand: Euromac
year: 2007
MODEL: MTX 1250
application type: Punching
Location: United Arab Emirates
machine type: CNC Punch Press

Technical Information - Euromac MTX 1250

General Data

Machine weight: 8400 kg

Main drive

Pressing force: 300 kN
Punching force: 300 kN
Maximum sheet thickness: 0.6-6 mm
Main motor power: 7.5 kW

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1300 mm

Tools

Number of index: 3
Number of stations: 6

Max Material thickness

Steel: 6 mm
Stainless steel: 5 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V/50 HZ
Power consumption: 7,5 kW
Oil tank: 135 L

Additional Information

Additional equipment

MULTITOOL

Machine Benefits

Qualitative Machine Benefits

Very less working time
All parts are in perfect conditon
Done the full inspection and general maintenance a month ago

Technical Machine Benefits

Automatic repositioning up to 10000 mm
Working height 980 mm
Single tool thick turret
Max punch stroke thick turret 30 mm
Max opening of standars clamps 7 mm

Machine History

Industries

Power industry

End product

Electrical cabinets

Material thickness

6 mm

Material type

Stainless steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Euromac MTX INDEX Punching Machine (2008)-15.pdf
