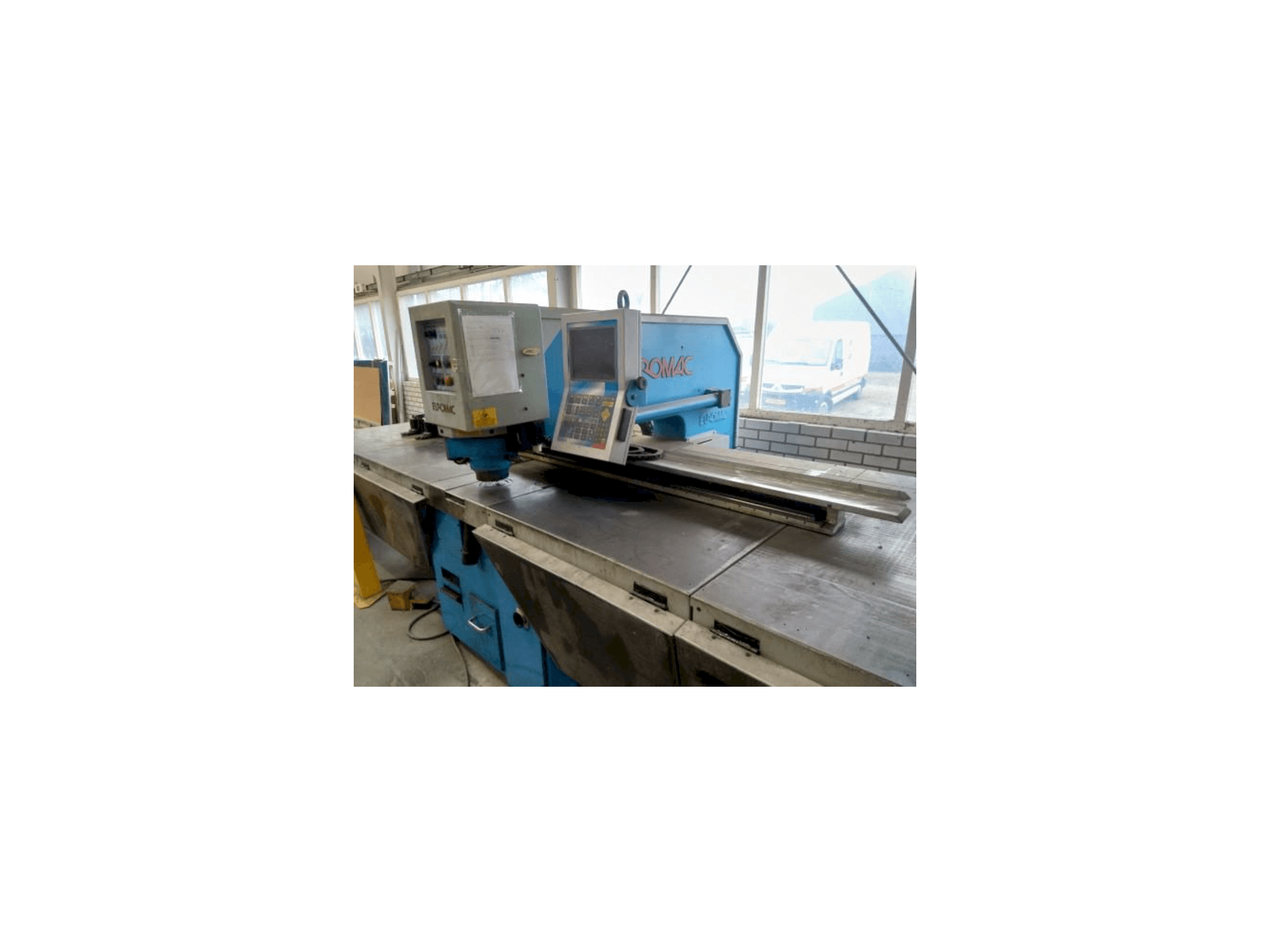

Front view of Euromac CX 1000/30 machine

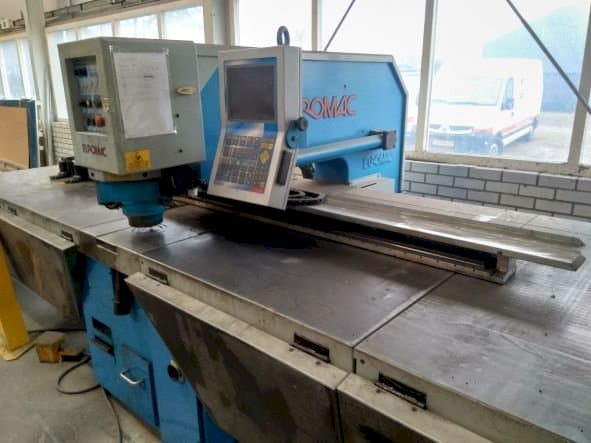

Front view of Euromac CX 1000/30 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Euromac - CX 1000/30NL-PUN-EUR-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Euromac CX 1000/30 Punching machine was made in Italy in 1999. It comes with a punching capacity 300 kN and a table dimensions of 4400 x 1800 mm. Includes 2 plate clamps, cabinet with punches and dies, and a foot pedal.

Overview

  • brand: Euromac
  • year: 1999
  • MODEL: CX 1000/30
  • application type: Punching
  • Location: Netherlands
  • machine type: Turret Punch Press
  • availability: Sold

Technical Information - Euromac CX 1000/30

General Data

  • Machine weight: 5000 KG

Main drive

  • Punching force: 300 kN
  • Maximum sheet thickness: 6 mm
  • Stroke: 180 rpm

Movement

  • X-AXIS Movement: 2000 mm
  • Y-AXIS Movement: 1000 mm

Table

  • Outer length: 4400 mm
  • Outer width: 1800 mm

    Additional equipment

    • - 2 plate clamps
    • - Cabinet with punches and dies
    • - Foot pedal
    • - Manuals

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Feed x/y axes: 5 - 40 mm/min
        • - Discharge: 1200 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
