Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ERAT 1500/500

ERAT - 1500/500TR-INJ-ERA-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

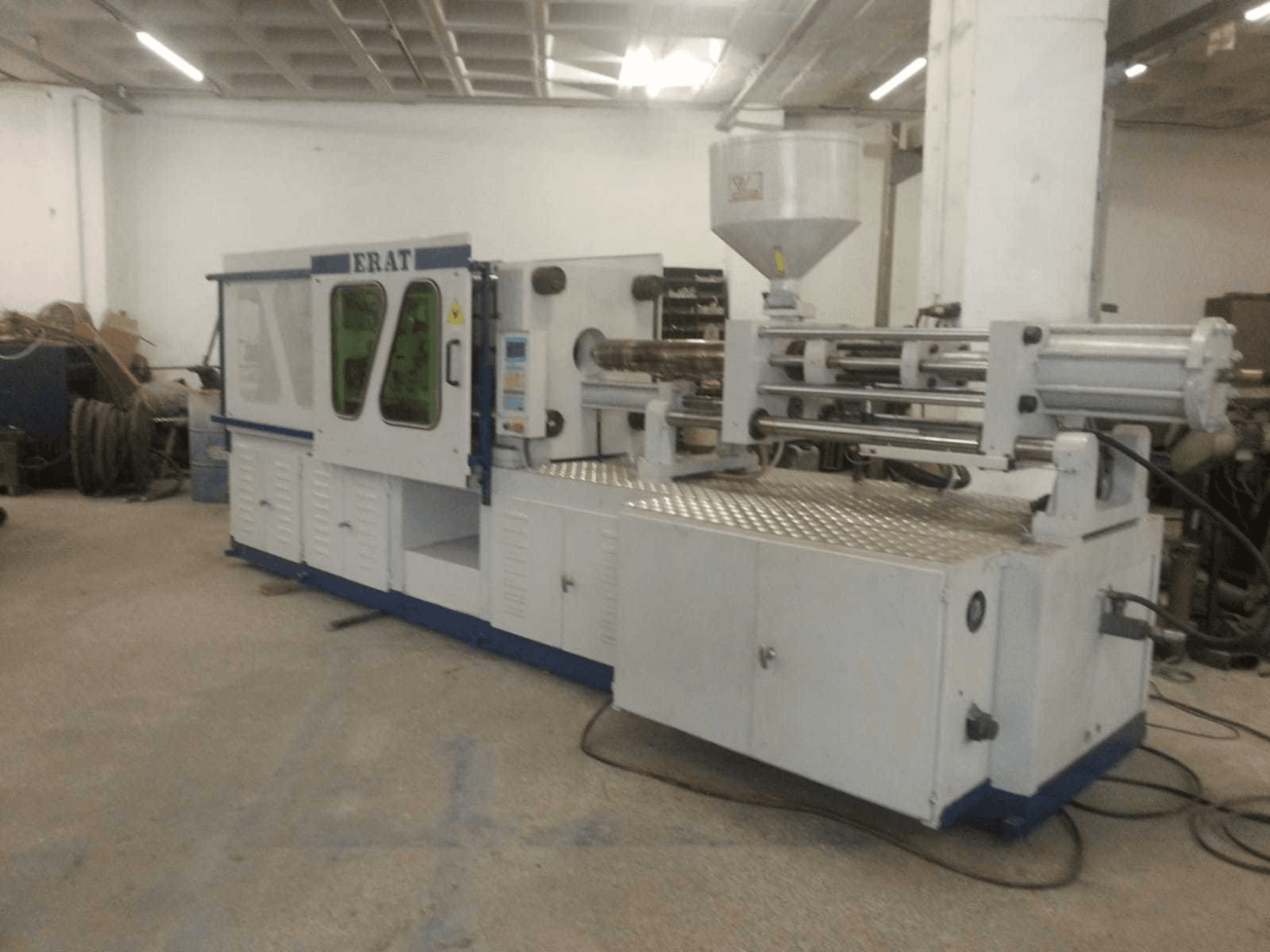

ERAT 1500/500 Injection Moulding Machine

Show in original language

This ERAT 1500/500 Injection Moulding Machine was built in 2016. With a clamping force of 5500 kN, this reliable machine presents a well maintained status.

Overview

brand: ERAT
year: 2016
MODEL: 1500/500
application type: Injection Moulding
Location: Turkey
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - ERAT 1500/500

General Data

Measurements width: 1320 mm
Measurements depth: 7000 mm
Machine weight: 24000 kg

Injection Unit

Screw diameter: 75 mm
Heating capacity: 24 kW
Adjustable heating zones: 6

Clamping unit

Clamping force: 5500 kN
Opening stroke: 650 mm
Distance between bars: 700x740
Mould height min: 300 mm
Mould height max: 700 mm
Size of mold platens: 1070x1120 mm

Media

Power consumption: 45 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection force 90 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
