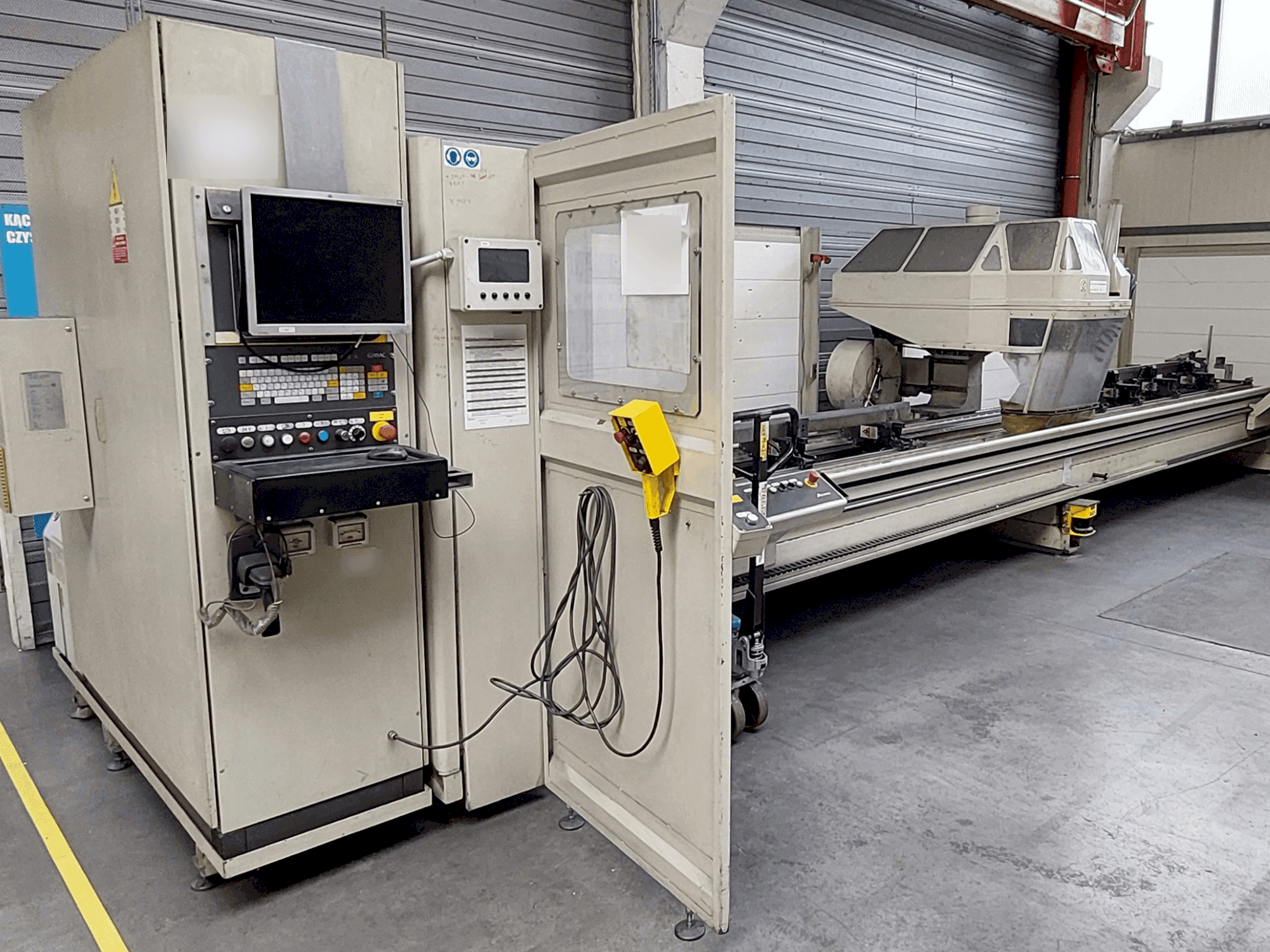

Front view of Emmegi PENDOLARE  machine

Emmegi - PENDOLAREPL-MIL-EMM-2002-00001

Rs. 2,755,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Emmegi PENDOLARE was manufactured in 2002. A universal machining center designed for aluminum, PVC, and light alloys, it features a spindle speed of 24000 rpm and a substantial X-axis movement of 7280 mm. Weighing 5500 kg, it's a robust option for diverse machining needs. Consider the Emmegi PENDOLARE machine we have for sale. Contact us for further details regarding this universal machining center.

Overview

  • brand: Emmegi
  • year: 2002
  • MODEL: PENDOLARE
  • production hours: 27730
  • application type: Milling
  • Location: Poland
  • machine type: Universal Machining Centre
  • availability: Immediately

Technical Information - Emmegi PENDOLARE

General Data

  • Machine weight: 4800 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 20000 rpm 1/MIN
  • Spindle motor power: 7 kW

Movement

  • X-AXIS Movement: 7280 mm
  • Y-AXIS Movement: 525 mm
  • Z-AXIS Movement: 380 mm
  • A-AXIS Movement: 180° MM

    Additional equipment

    • - Capacity of Tool Magazine 8 pcs

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum positioning speed of x-axis 80 m/min
        • - Maximum positioning speed of y-axis 60 m/min
        • - Maximum positioning speed of z-axis 30 m/min
        • - Maximum positioning speed of a-axis from 0° to 90° in 1° steps
        • - Tool clamping system hsk-40e
        • - Number of clamping devices 6" 8 pcs
        • - Positioning of clamping devices automatic
        • - Installed power 23 kw
        • - Operating pressure 6 - 8 bar

      Extra information

      • - CNC machining centre for machining bars or workpieces made of aluminium, PVC, light alloys in general, or steel

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
