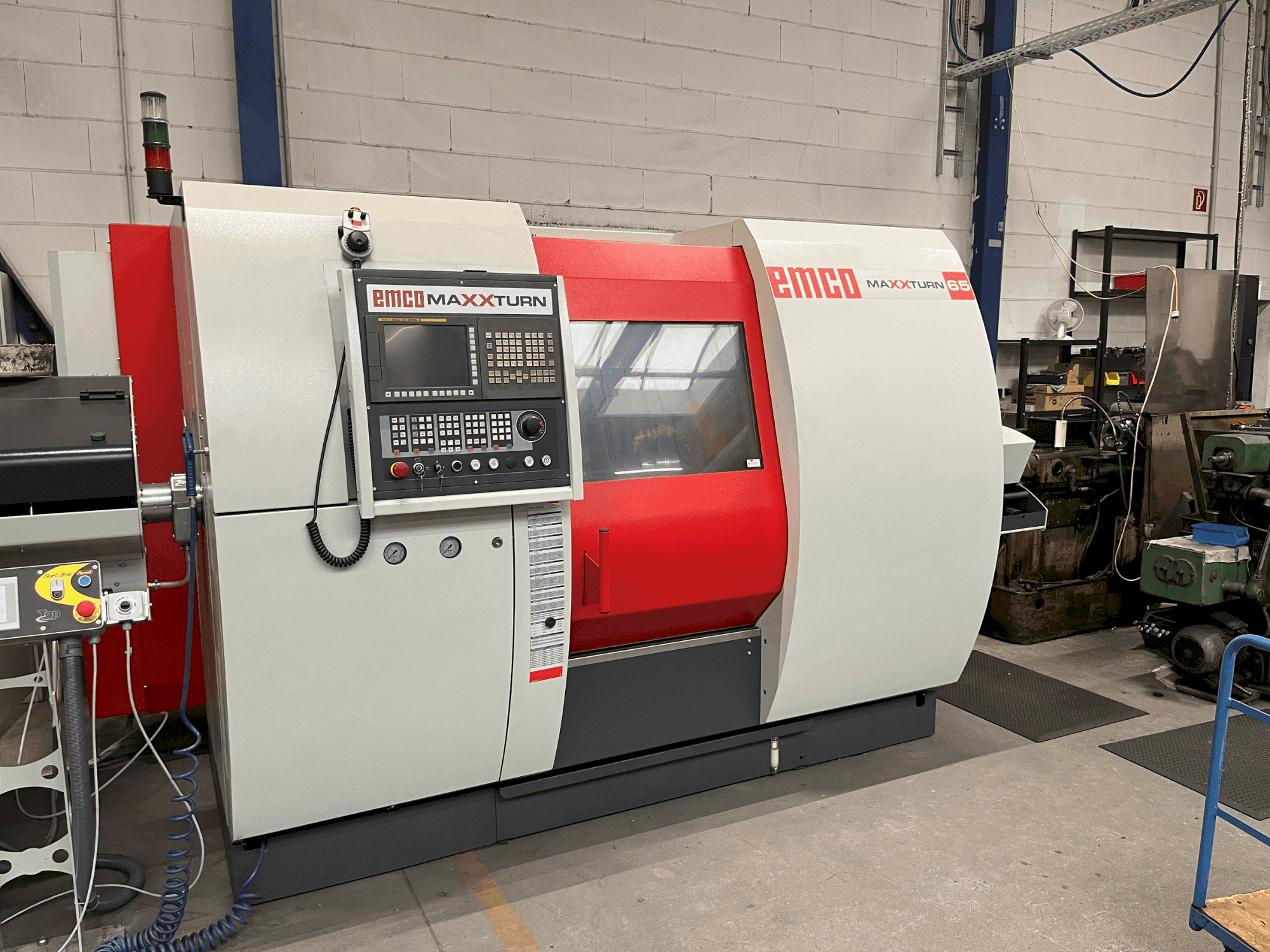

This 3-axis EMCO MaxxTurn 65 SMY was manufactured in 2014, featuring a robust FANUC 31i B control system and a dual spindle setup with C and Y axes for complex machining. It includes a 12-position tool turret and a bar feeder with a capacity of 65 mm diameter and 3200 mm length. Ideal for precision turning and milling, this machine offers a comprehensive solution for advanced metalworking. Contact us for more information about this machine.
Overview
- brand: EMCO
- year: 2014
- MODEL: MaxxTurn 65 SMY
- production hours: 100
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - EMCO MaxxTurn 65 SMY
Control Unit
- Control Brand: FANUC
- Control Model: 31t- Model B
Dimensions
- Machine Depth: 4500 mm
- Machine Height: 1800 mm
- Machine Weight: 2200 kg
Movement
- Number of Axes: 3
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Automatic bar loading magazine with adjustable part length and bar diameter
- Remnant extraction system
- Guide channel made of polyurethane plastic
- Displacement system for longitudinal movement
Machine Benefits
Qualitative Machine Benefits
- No spindle reduction required
Technical Machine Benefits
- Cooling: thermocompensation system
- Axes: c-axis and y-axis
- System: linear guide system, digital drive system
- Max part dimensions: Ø65 mm, length 175 mm
- Tool system: 12-position tool turret, vdi30 radial
- Driven tools: up to 12 driven tools
- Sub-spindle speed range: 0–7000 rpm
- Bar length capacity: 1200 – 3200 mm
- Diameter passage: 20 – 65 mm
- Feed speed: 0 – 627 mm/sec
Extra Information
Control Unit Control: Integrated PLC Features: Fully automatic work cycle, Monitoring and error diagnostics (display output) Tools Max Power: 6.7 kW Max Torque: 25 Nm Speed Range: 0–5000 rpm C-Axis: Available Media Power Supply: 200/220/400 V AC Air Requirements: Min. 7 bar Air Consumption: 45 L/min Mount Position (Assembly) Installation Kit includes vibration-absorbing, height-adjustable leveling shoes, and mounting brackets. Machine History Note: Machine like new with only 100 hours of use
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
