➤ Used Durma TPL93 - Turret Punch For Sale | gindumac.com

Show in original language

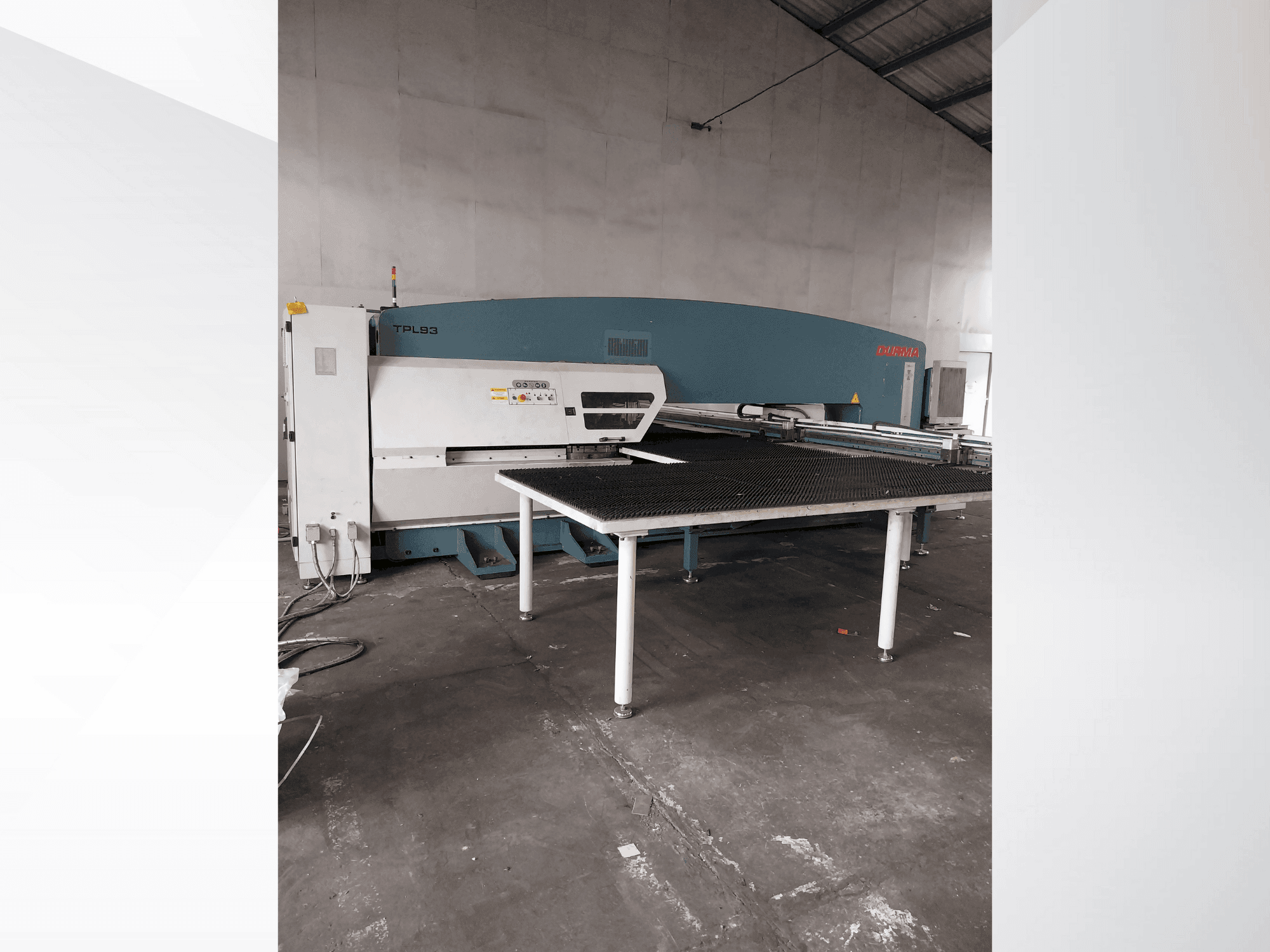

This Durma TPL93 turret punch press was manufactured in 2019. It's a robust choice for precision punching operations. Consider the opportunity to buy this Durma TPL93 turret punch press. Contact us for more information.

Overview

brand: Durma
year: 2019
MODEL: TPL93
application type: Punching
Location: Hungary
machine type: Turret Punch Press
control unit brand: SIEMENS

Technical Information - Durma TPL93

General Data

Measurements width: 7360 MM
Measurements depth: 6750 MM
Measurements height: 2310 MM
Machine weight: 12960 KG

Control Unit

Brand: SIEMENS
Model: Sinnumeric 840

Movement

X-AXIS Movement: 2500 + R mm
X-AXIS Rapid traverse: 100 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Rapid traverse: 75 m/min

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Repeat accuracy: ±0. 05 mm
Max sheet weight at full speed: 120 kg
Table height: 940 mm
Table type: brush table
The turret is equipped with 11 a-fix slots (0. 8–12. 7 mm), 11 b-fix slots (12. 8–31. 7 mm), 2 c-fix slots (31. 8–50. 8 mm), and 1 d-fix slot (50. 9–88. 9 mm); it also includes b-index capability (12. 8–31. 7 mm) and 3 d-index slots (50. 9–88. 9 mm), with a tool turret rotation speed of 22 rotations per minute and an indexable turret speed of 150 rotations per minute.
Clamping force: 1000 kg
Main cylinder stroke length: 40 mm
Max punching stroke length: 25 mm
Punching force: 20 tons
Frame type: closed frame

Technical Machine Benefits

Oil tank capacity: 180 liters
Air pressure: 6 bar
Motor power: 7. 5 kw
Hydraulic motor power: 8 kw/h
Automatic repositioning: 10000 mm
Combined x + y max speed: 125 m/min
Max stroke rate at 1 mm step (lv=1 mm): 1100 strokes/min
Max stroke rate at 25 mm step (lv=1 mm): 375 strokes/min
Marking speed: 2800 strokes/min
Positioning accuracy: ±0. 1 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
