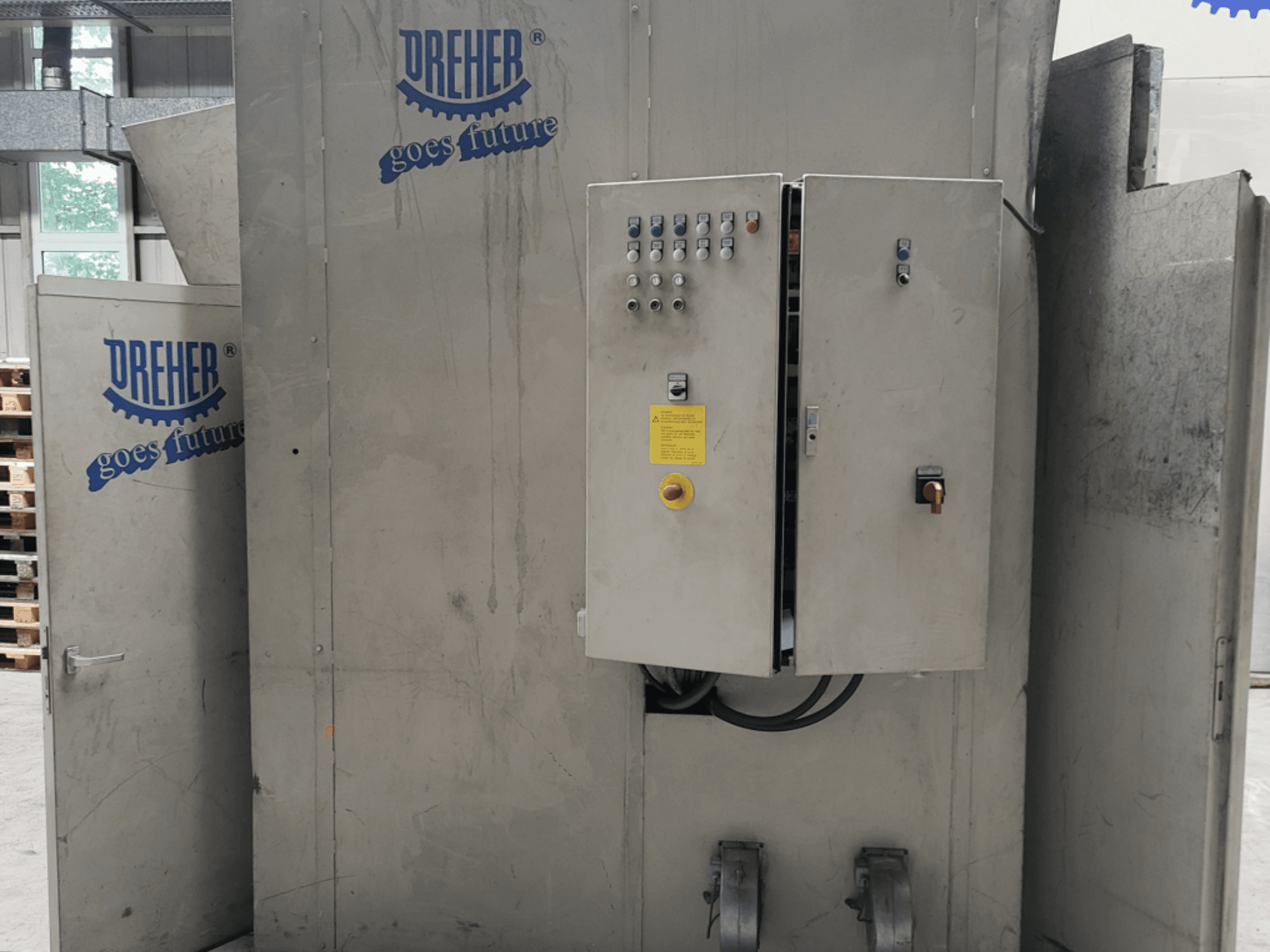

DREHER - S 42/65 GFS-15 GRDE-OTH-DRE-2003-00001

- Drive Power: 45 kW

- Motor Speed: 1,500 rpm (1,470 rpm rating on motor plate)

- Motor Specifications: VEM motors GmbH, 45 kW, 400/690 V, 50 Hz

- Rotor Diameter: 420 mm

- Working Width / Rotor Width: 650 mm

- Feed Opening: approx. 420 × 650 mm

- Rotor Cutting Bars: 5 pieces

- Stator Cutting Bars: 2 pieces

- Enclosure / Features: Protective / soundproof enclosure, granulator function

- Additional Equipment & Accessories:

- Screen Bed: 8 mm round perforation

- Rotor Feature: Auxiliary flywheel fitted

- Hydraulic System: Hand pumps for opening upper machine housing and swiveling screen bed

- Switchgear Combination: EN 60204/1 (VDE 0113) standard, star-delta starter, ammeter, main switch, motor protection

- Soundproof Booth: Segmented steel construction with 100 mm mineral wool insulation, forced ventilation fans, 3 access doors

- Z-Conveyor Belt: 500 mm width, 5,049 mm length, PP belt with cleats, height/angle adjustable

- Transverse Conveyor Belt: 4,428 mm length, 350 mm width

- Cross-Cutter: 2 units, max. 300 mm width, frequency-controlled (40-60 strokes/min, 2.2 kW)

- Discharge & Extraction Station: Granulate extraction fan (5.5 kW motor, 230/400 V), cyclone ZA 160 with pneumatic material diverter, dust filter

- Rotary Airlock: Cast iron housing, Vulkollan blades, gear motor drive

- Spare Parts: 1 extra set of cutting blades (7 rotor blades, 3 stator blades)

- Anti-Vibration: 6 vibration damping feet
