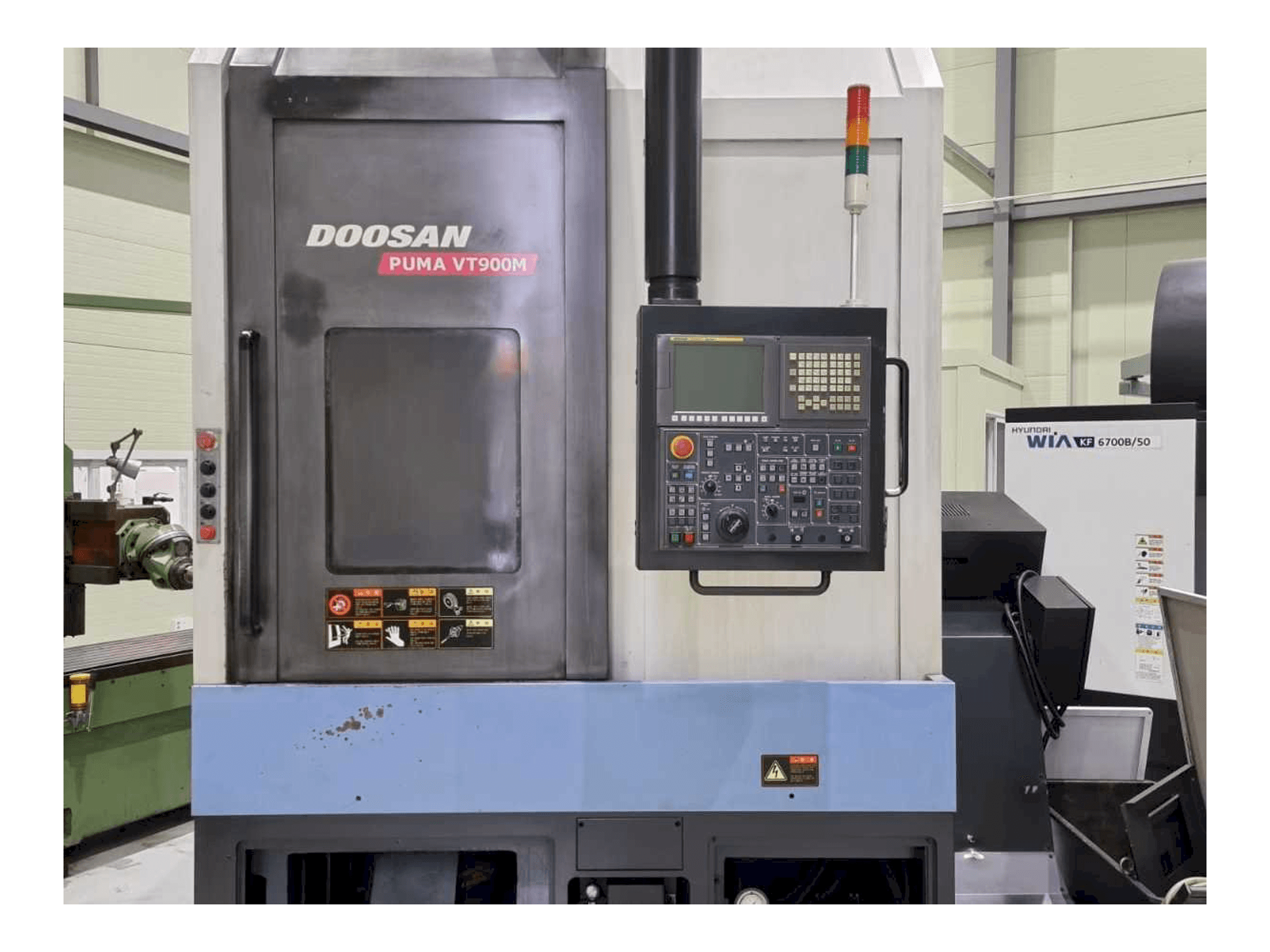

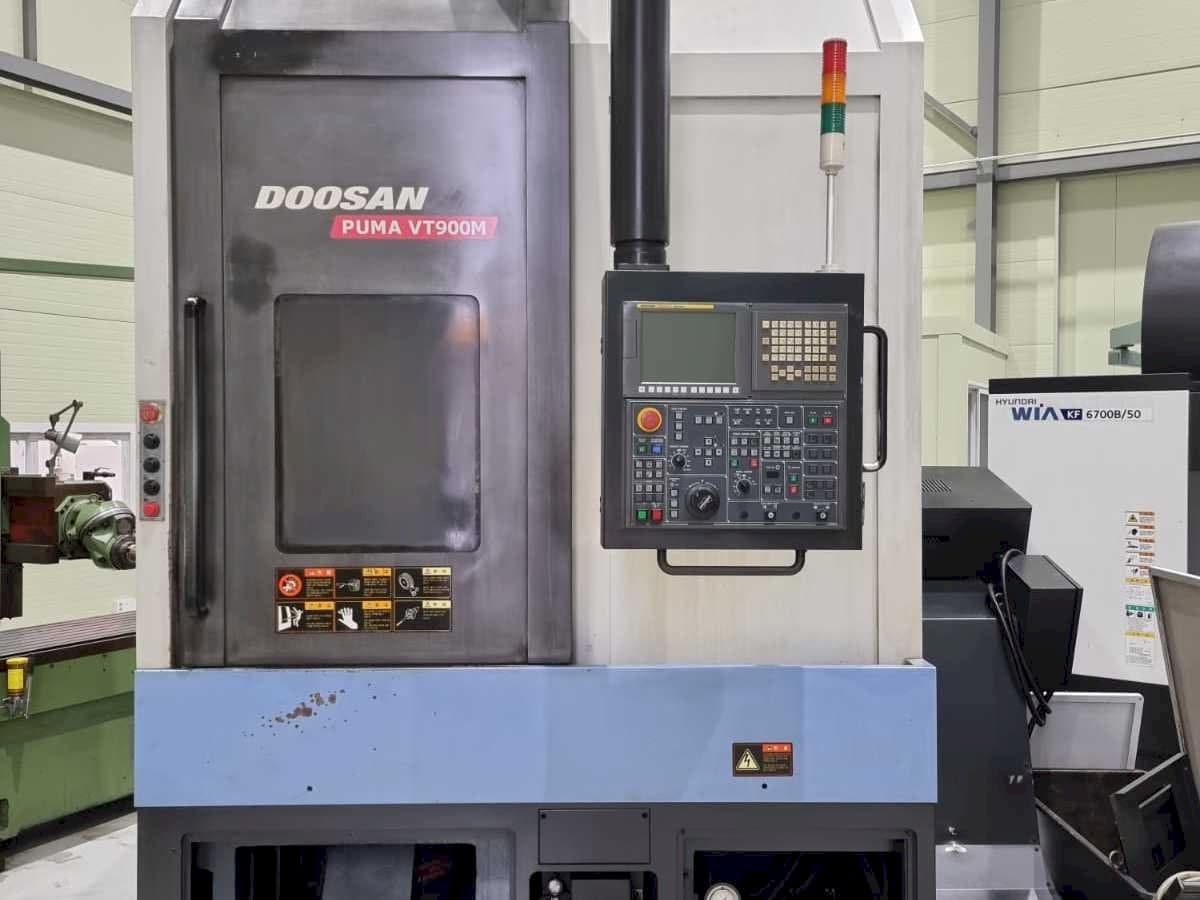

Front view of Doosan PUMA VT900M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA VT900M

Photo Gallery

DOOSAN - PUMA VT900MKR-TUR-DOO-2010-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan PUMA VT900M Vertical Lathe

Show in original language

This Doosan VT900M Vertical Lathe machine was manufactured in the year 2010. It is equipped with a Fanuc i Series control unit. The machine has a spindle speed up to 1800 rpm. It has a new 24 inch chuck.

Overview

brand: DOOSAN
year: 2010
MODEL: PUMA VT900M
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA VT900M

General Data

Measurements width: 2130 mm
Measurements depth: 3050 mm
Measurements height: 3621 mm
Machine weight: 12500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 1800 1/MIN
Spindle motor power: 37/45 kW

Movement

X-AXIS Movement: 470 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 20 m/min

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck : 24 inch (new)
- - Live tools (2 straight, 2 angular)
- - Auto door
- - Spindle 2 step gear type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
