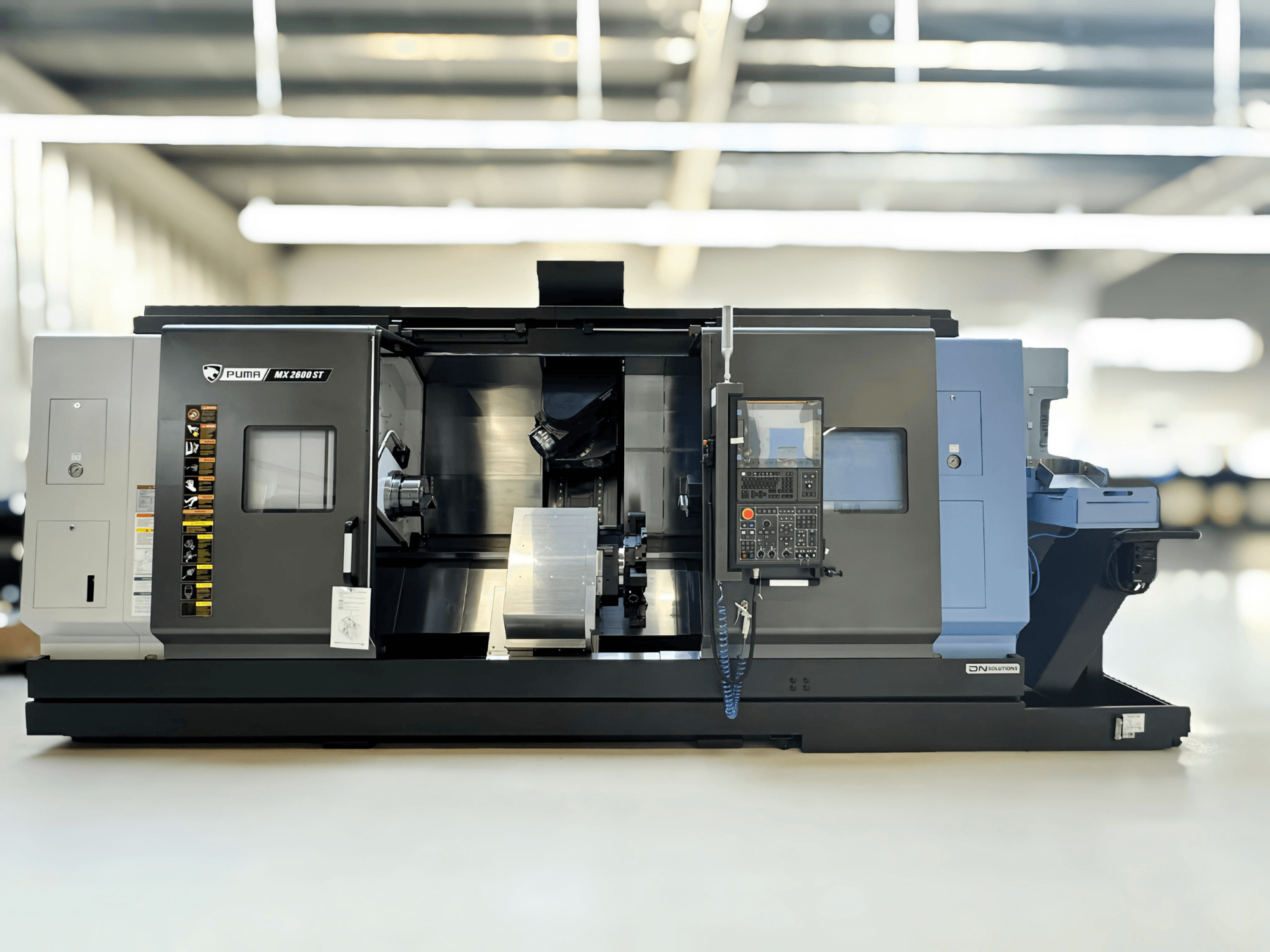

This 7-axis DN SOLUTIONS PUMA MX2600ST was manufactured in 2023. It features a maximum spindle speed of 4,000 RPM and a bar capacity of 76 mm. The machine is equipped with a multi-tasking configuration, including 3 spindles and a lower turret with 12 stations. If you are looking to get high-quality milling and turning capabilities, consider the DN SOLUTIONS PUMA MX2600ST mill-turn centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: PUMA MX2600ST
- application type: Milling
- Location: Germany
- machine type: Mill-Turn Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA MX2600ST
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F with 15" display
Dimensions
- Machine Height: 3025 mm
- Machine Length: 5125 mm
- Machine Width: 2360 mm
Movement
- Number of Axes: 7
- X-axis Travel: 630 mm
- Z-axis Travel: 1585 mm
Technical Specification
- Spindle Power: 26 kW
- Spindle Speed: 4000 RPM
Additional Information
Configuration: Multi-tasking with 3 spindles and lower turret
Chuck size: 10" (255 mm)
Bar capacity: 76 mm
Travels:
X1 / X2: 630 / 230 mm
Z: 1,585 mm
Axis count: 7 (fully controlled)
X1 / Z1 / Y1: Milling spindle axes
B-axis: Milling spindle swivel/tilt (approx. 240° range)
X2 / Z2: Lower turret axes
C-axis: Spindle indexing/rotation
Spindle motor power: 26 / 22 kW
Spindle architecture: 3 spindles including top-mounted milling spindle
Lower turret: 12 stations, BMT 65 interface
Tooling interface: CAPTO C6 (milling head)
Guideway type: Linear guideway
Precision: 0.001° indexing accuracy in B and C axes
Thermal control: Intelligent heat compensation and optimized cooling to minimize thermal displacement
Cooling system: Coolant flushing for right/left spindle; high-pressure coolant through lower turret and milling spindle
Filtration/monitoring: Level monitoring; flow monitor
Data/software: AICC contouring; Data Server 1 GB
Additional equipment
Renishaw RMP60 probe
Tool setter
Auto door (automation)
Oil skimmer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
