DMG MORI DMU 50

Photo Gallery

DMG MORI - DMU 50MX-MIL-DMG-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 50 For Sale | gindumac.com

Show in original language

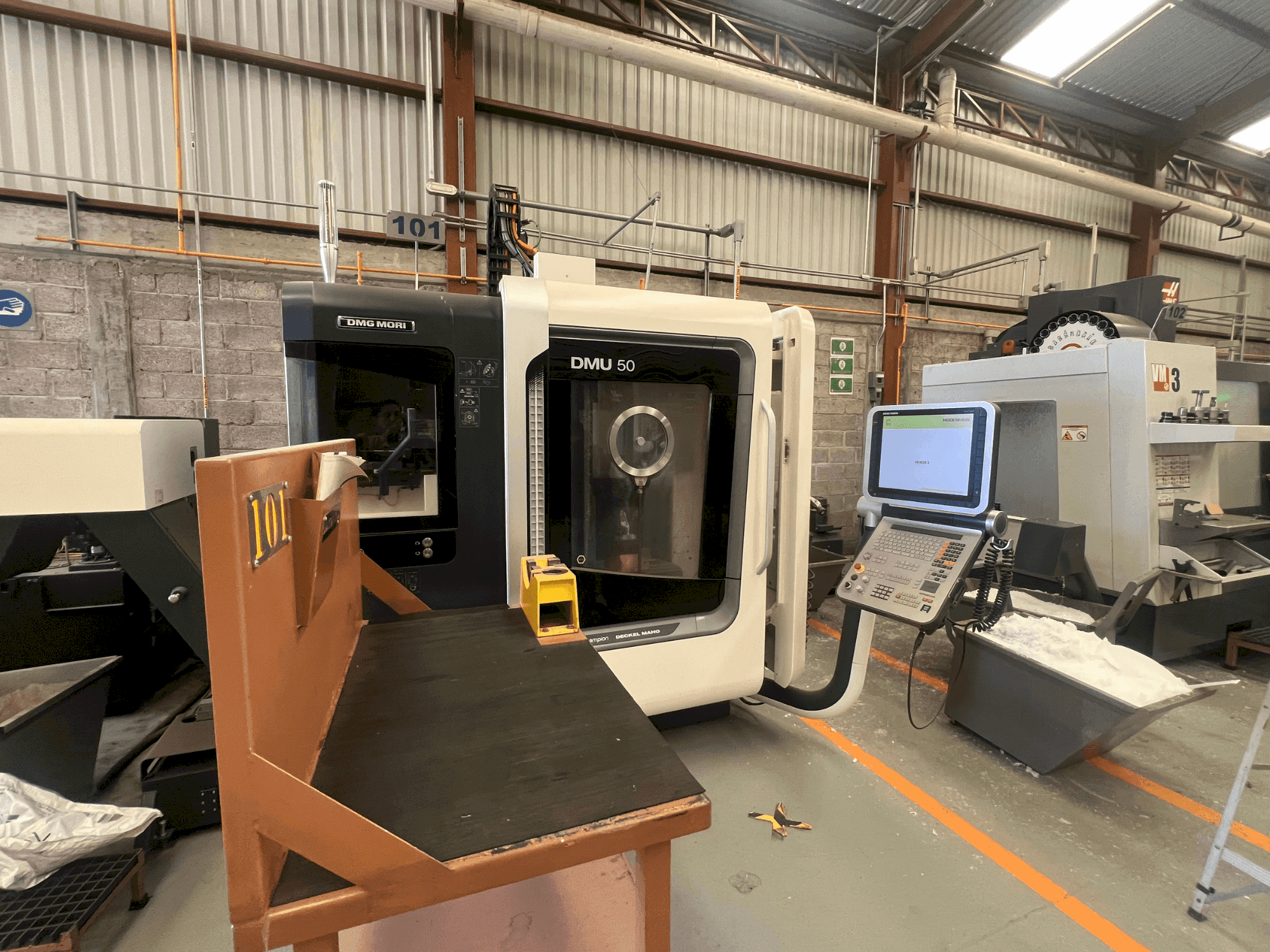

This 5-axis DMG MORI DMU 50 was manufactured in 2017. It features a Ø 650 mm table, X/Y/Z travels of 650/520/475 mm, B-axis rotation from -35° to +110°, and a C-axis full 360° rotation. It supports a spindle speed up to 20,000 rpm, a HSK-A63 taper, and a tool capacity of up to 60. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2017
MODEL: DMU 50
application type: Milling
Location: Mexico
machine type: Vertical Machining Centre

Technical Information - DMG MORI DMU 50

Dimensions

Machine Weight: 8000 kg
Table Load: 300 kg

Movement

B-axis Max: 110°
B-axis Min: -35°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 650 mm
Y-axis Travel: 520 mm
Z-axis Travel: 475 mm

Technical Specification

Spindle Speed: 20000 RPM

Additional Information

Table diameter: 650 mm
Tool magazine capacity: 30 or 60 tools (depending on version)
Coolant: through-spindle cooling (optional)
Probes: workpiece probe and tool measurement probe (optional)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
