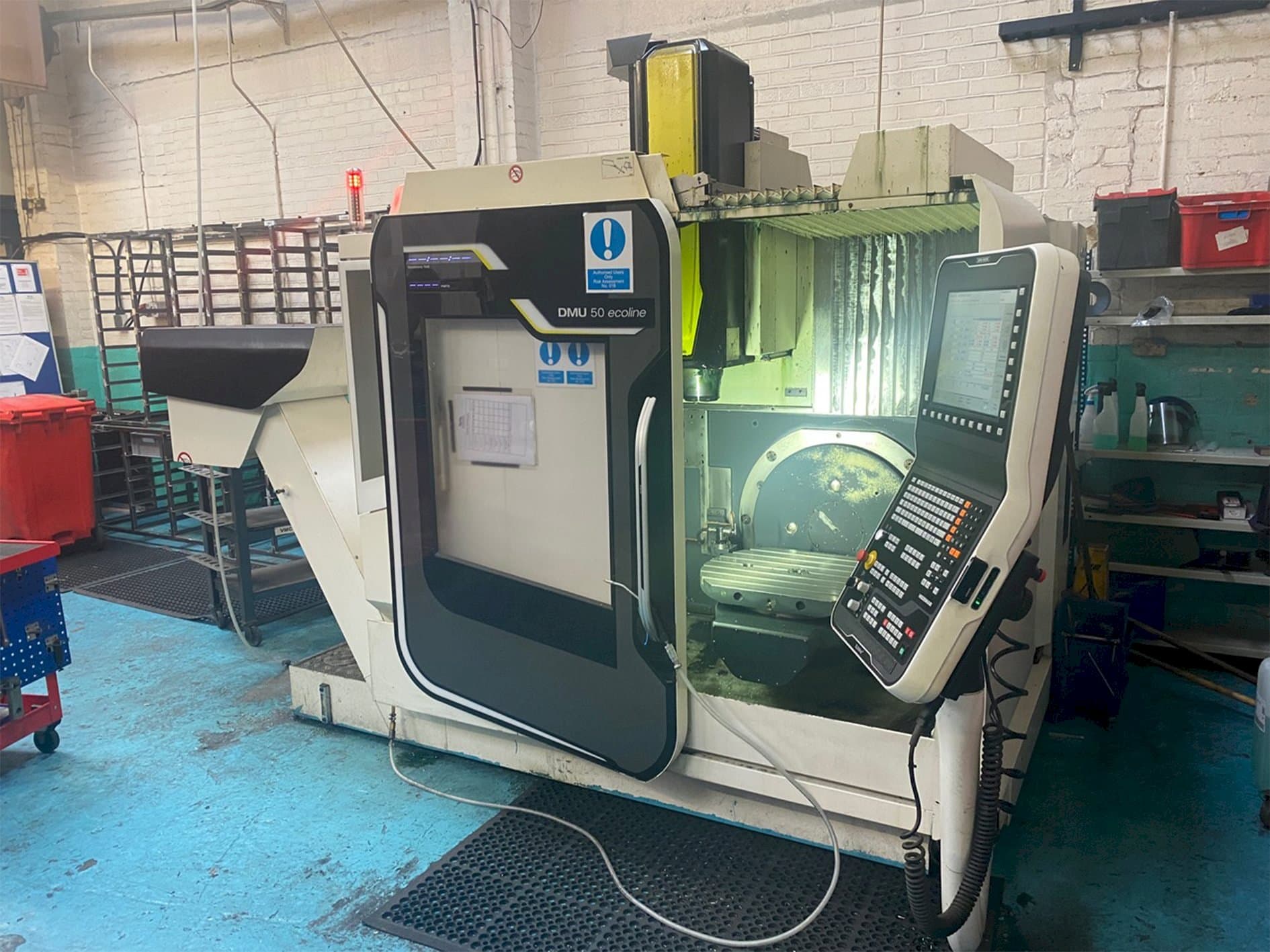

Front view of DMG DMU Ecoline 50 5 Axis VMC machine

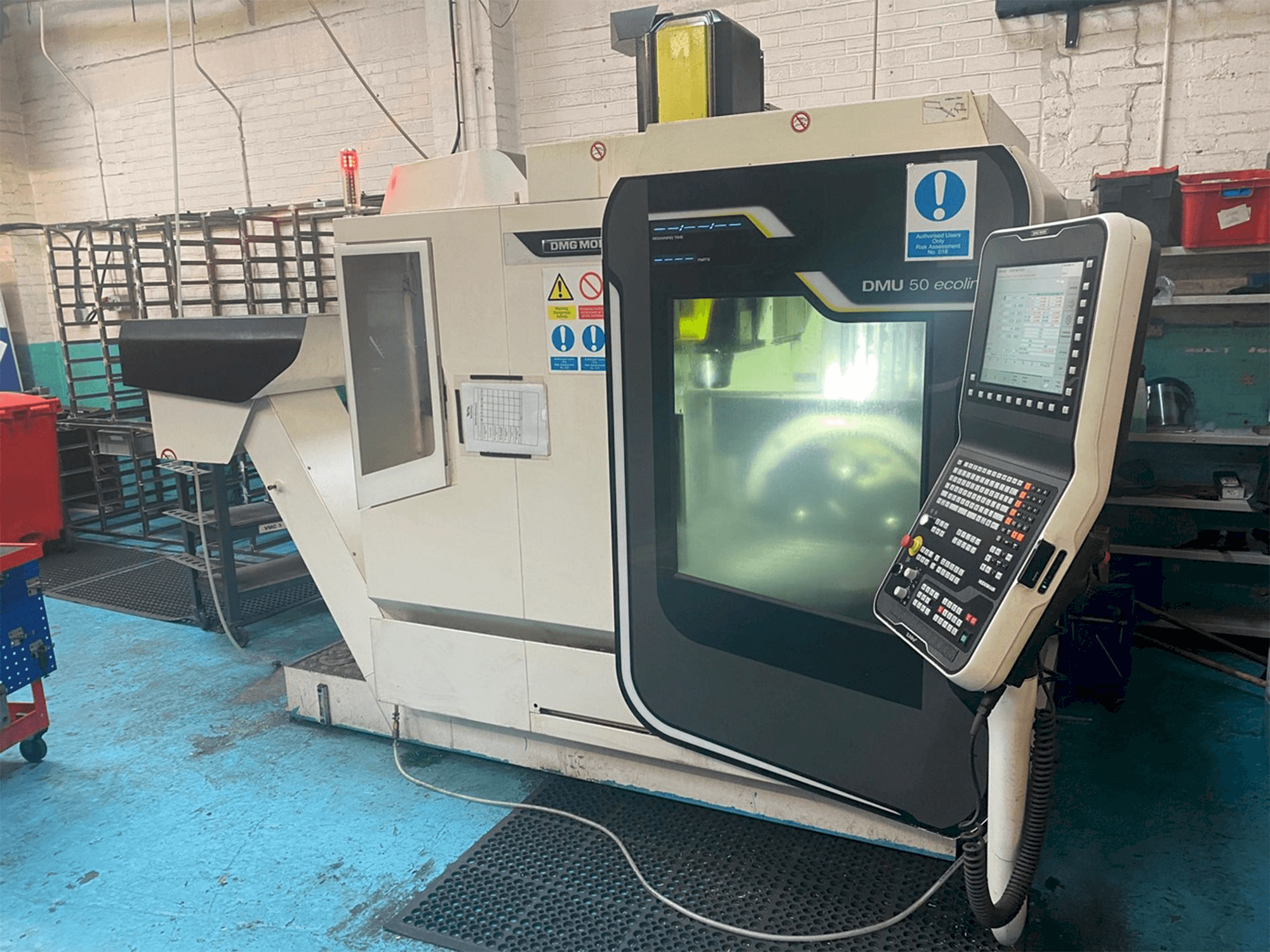

Front view of DMG DMU Ecoline 50 5 Axis VMC machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG - DMU Ecoline 50 5 Axis VMCGB-MIL-DMG-2014-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG DMU Ecoline 50 5 Axis Vertical Machining Center was manufactured in 2014 in Poland. It has been working for only 6941 hours. It is operated with a Heidenhain iTNC 530 control unit. This machine can work with a spindle speed between 20 - 10000 rpm and a spindle taper SK 40.

Overview

  • brand: DMG
  • year: 2014
  • MODEL: DMU Ecoline 50 5 Axis VMC
  • production hours: 6941
  • application type: Milling
  • Location: United Kingdom
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG DMU Ecoline 50 5 Axis VMC

General Data

  • Measurements width: 5500 mm
  • Measurements depth: 4935 mm
  • Measurements height: 2600 mm
  • Machine weight: 4000 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 20 – 10000 1/MIN
  • Spindle motor power: 13/9 kW
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 500 mm
  • X-AXIS Working Feed: 24000 mm / min
  • X-AXIS Rapid traverse: 24000 mm / min
  • Y-AXIS Movement: 450 mm
  • Y-AXIS Working Feed: 24000 mm / min
  • Y-AXIS Rapid traverse: 24000 mm / min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Working Feed: 24000 mm / min
  • Z-AXIS Rapid traverse: 24000 mm / min
  • B-AXIS Movement: -5 ° / + 110 °
  • C-AXIS Movement: 360 °

Tools

  • Number of index: 30
  • Max weight: 6 kg
  • Max tool diameter: 80/130 mm
  • Max tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
