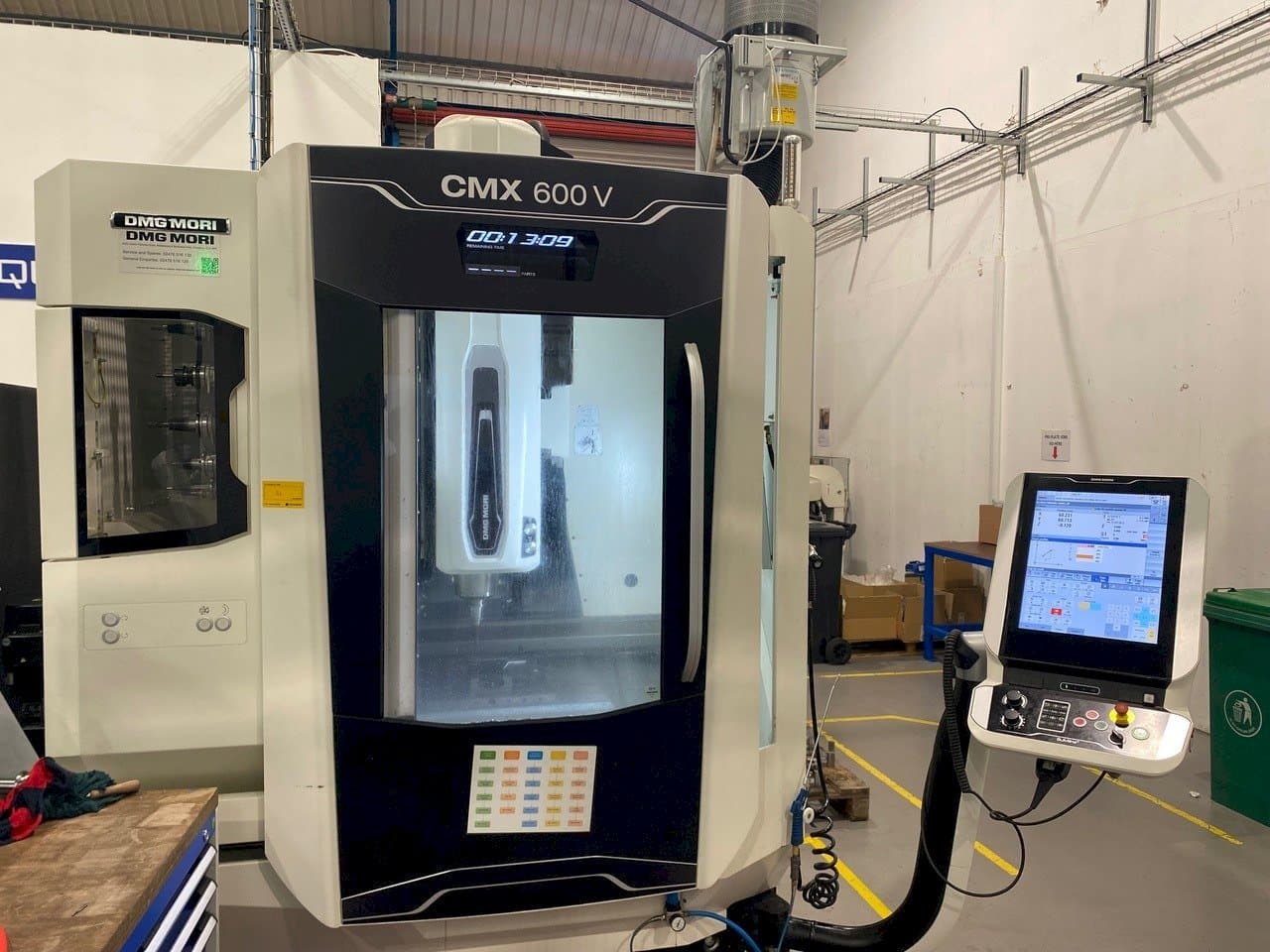

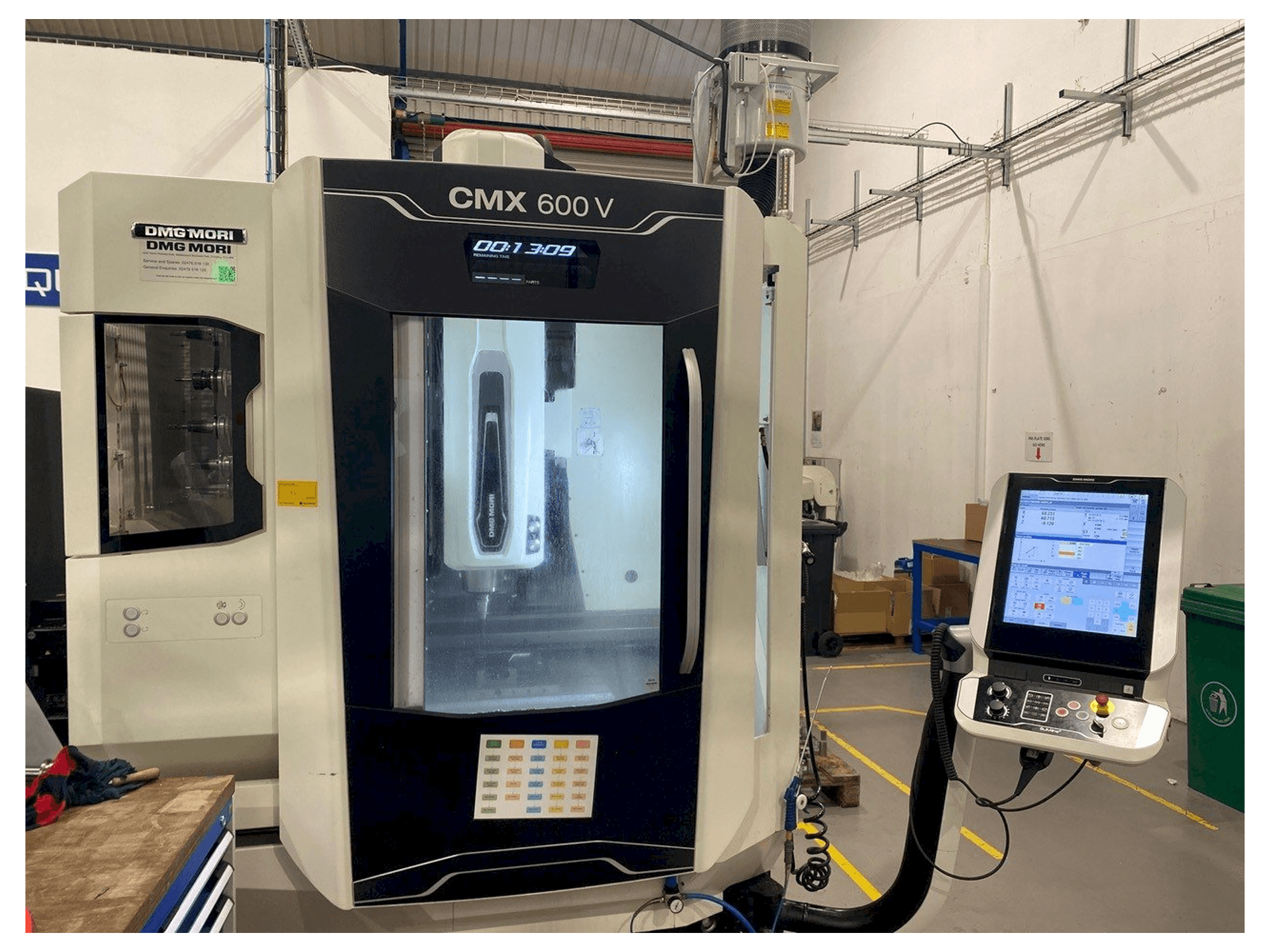

DMG CMX 600 V vertical machine center

Show in original language

This DMG CMX 600 V vertical machine center was built in the year 2018 in Poland and has 14603 hours, of which 4740 are spindle hours. It is equipped with a Siemens 840D SL Slimline Multi-Touch Operate 4.7 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition.

Overview

brand: DMG
year: 2018
MODEL: CMX 600 V
production hours: 14603
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Siemens

Technical Information - DMG CMX 600 V

General Data

Measurements width: 2954 mm
Measurements depth: 2757 mm
Measurements height: 2935 mm
Machine weight: 5000 kg

Control Unit

Brand: Siemens
Model: 840D SL Slimline Multi Touch Operate 4.7

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 13/9 kW
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 900 mm
Outer width: 560 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 120 - 630 mm
- - Rapid feed rates 30m/minute
- - Tool setter
- - Swarf conveyor
- - Tool change time (chip to chip) 6. 7 seconds
- - 3-axis controlled
Qualitative Machine Benefits:
- - Very good condition

Extra information

- oil mist filter and the clamping unit which was on the table it's not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
