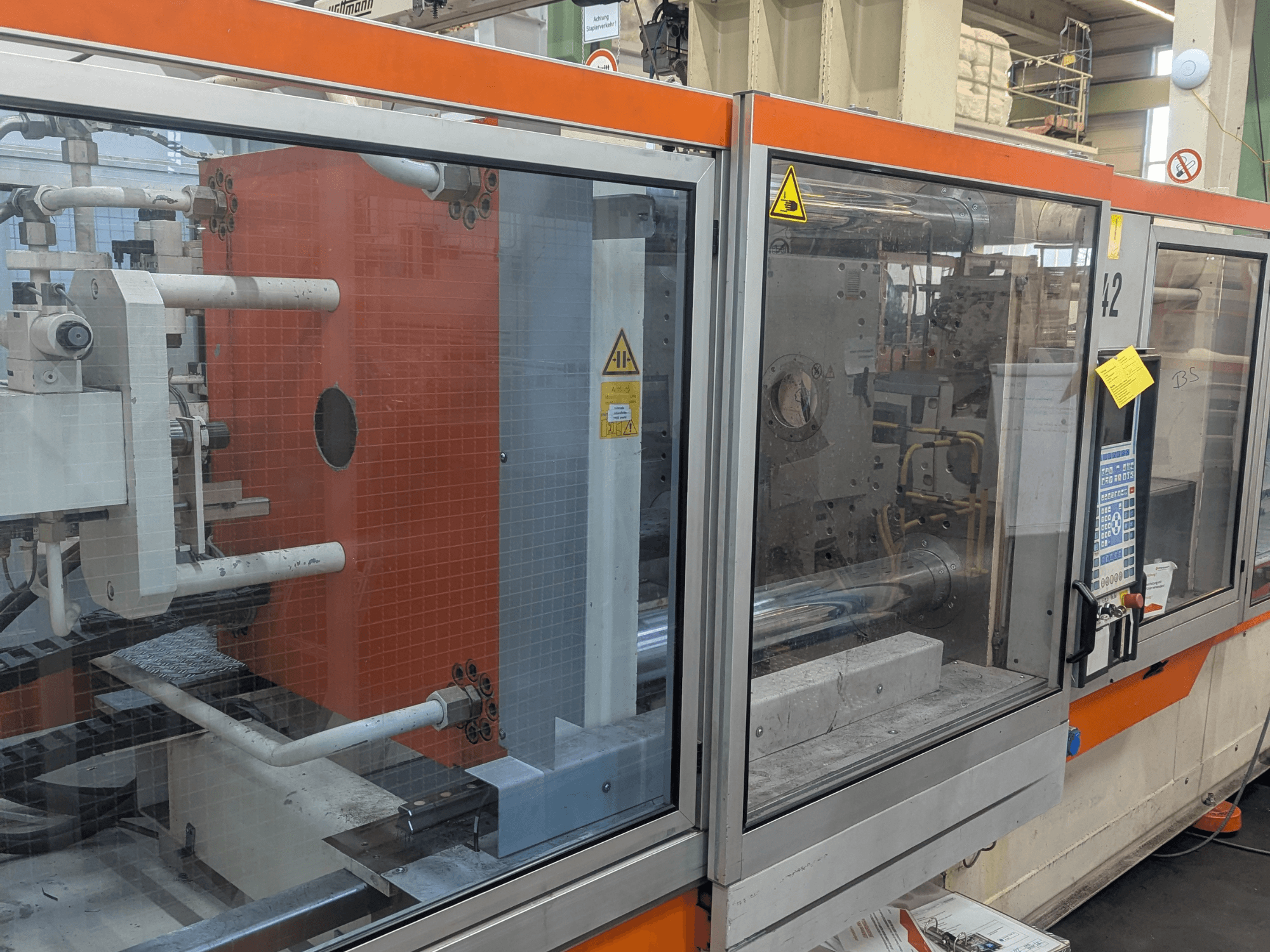

DEMAG SYSTEC 80/420-310

Photo Gallery

DEMAG - SYSTEC 80/420-310 DE-INJ-DEM-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG SYSTEC 80/420-310 For Sale | gindumac.com

Show in original language

This DEMAG SYSTEC 80/420-310 was manufactured in 2008. It features a clamping force of 800 kN and a screw diameter of 35 mm, making it suitable for processing various materials such as PA, PP, PE, and ABS. The machine includes a Wittmann linear robot and a Gravimax 14R gravimetric blender. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG SYSTEC 80/420-310 hydraulic injection moulding machine we have for sale. Contact us for further details.

Overview

brand: DEMAG
year: 2008
MODEL: SYSTEC 80/420-310
production hours: 57628
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG SYSTEC 80/420-310

Technical Specification

Clamping Force: 800 kN
Max. Shot Weight: 149 g
Screw Diameter: 35 mm

Additional Information

Processed materials: PA, PP, PE, ABS
Cylinder temperature: up to 450°C
Tie bar distance: 420 mm
Injection unit: 310
Control system: CDIAS / NC5
Total operating hours (SPS): 108,544.0 h
Drive operating hours: 57,628.7 h
Heating operating hours: 73,426.7 h
Total cycle counter: 5,058,031
Voltage: 400 V
Frequency: 50 Hz
Current: 114 A
Max pressure (Pmax): 235 bar
Max flow (Qmax): 104 l/min
Installation height of the tool: 300 mm
Maximum distance between tool mounting plates: 750 mm
Availability: Mid 2026

Additional equipment

Wittmann linear robot (Handling/Robot)
Gravimax 14R gravimetric blender
TORO-systems material loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
